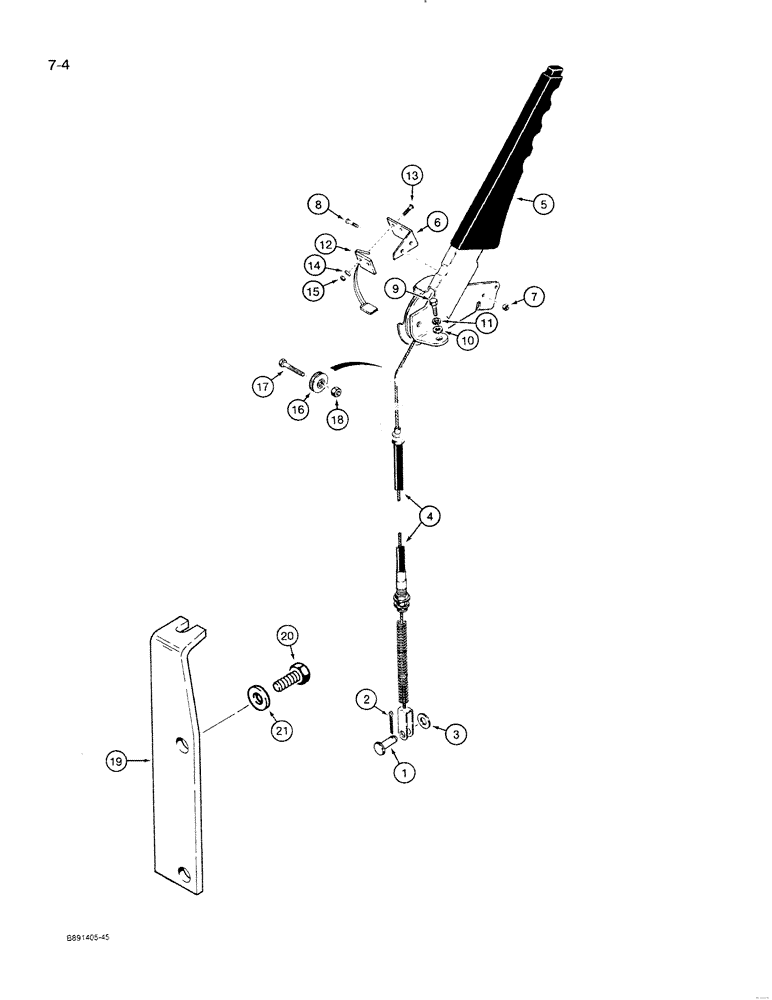

Запчасти Case 821 (7-004) - PARKING BRAKE CONTROLS PRIOR TO P.I.N. JAK0024165 (07) - BRAKES

1

141-54

CLEVIS PIN,3/8" x 1 1/16"

1шт.

2

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

3

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

4

L126155

CABLE

- brake, parking, Serial Range: brake-lever

1шт.

Subs to 118600A1 IF DEALER COMPLAINS THAT THE HOUSING IS TOO SHORT HAVE HIM CALL TSG AS THEY HAVE ADJUSTING INSTRUCTIONS.

1шт.

5

1339804C1

BRAKE LEVER

LEVER - actuator, parking brake

1шт.

6

1339961C1

SUPPORT

BRACKET - mounting, parking brake lever and parking brake switch

1шт.

7

225-14108

NUT,#8-32

- hex, No. 8 NC

2шт.

8

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

- machine, pan head slotted, No. 8 NC x 1/2 inch

2шт.

9

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

10

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

11

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

1343288C1

LIMIT SWITCH

SWITCH - parking brake

1шт.

13

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

14

495-31016

WASHER,#6

2шт.

15

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

2шт.

16

A59416

SHEAVE

PULLEY - parking brake cable

1шт.

17

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5

1шт.

18

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

1шт.

19

L125665

SUPPORT

BRACKET - parking brake cable

1шт.

20

614-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 8.8, Full Thd

- hex, 20 - 2.5 x 45 mm

2шт.

21

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

2шт.
