Запчасти Case 821 (6-078) - WHEELS - 17 X 25 RIMS FOR 20.5 X 25 TIRES (06) - POWER TRAIN

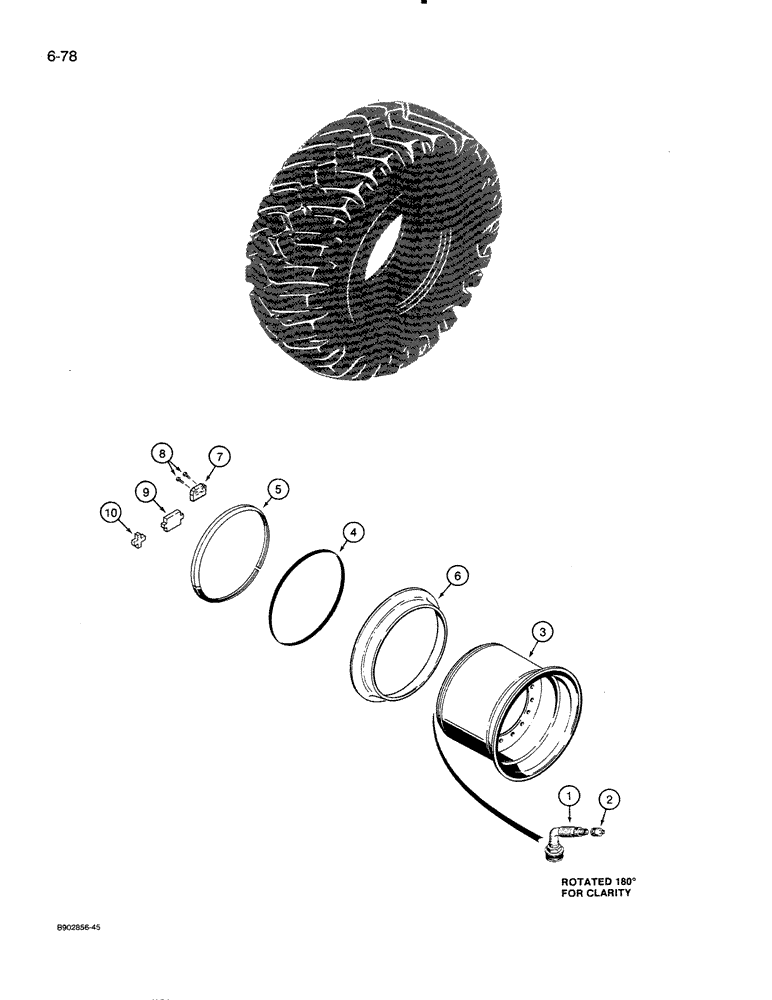

Схема запчастей Case 821 - (6-078) - WHEELS - 17 X 25 RIMS FOR 20.5 X 25 TIRES (06) - POWER TRAIN
3
6
10
5
4
9
1
8
2
7

Артикул

Название

Примечание

Количество

1

L48133

VALVE STEM

- 65 degree, Tubeless tire, Includes: Ref. 2

4шт.

2

L19664

VALVE STEM

CAP - valve

4шт.

L128693

WHEEL

ASSEMBLY - 17 x 25 rim for 20.5 x 25 tire, left-hand wheel illustrated, Includes: Ref. 3 - 10

4шт.

3

NSS

NOT SOLD SEPARAT

RIM - wheel

1шт.

4

A19101

O-RING,6.6mm Thk x 590.55mm ID

- seal

1шт.

5

S300925

SPECIAL RING

RING - lock, for wheel stamped with 90117

1шт.

5

S301692

RING, LOCKING

RING - lock, for wheel stamped with 90222

1шт.

5

A19100

LOCKING RING

RING - lock, for wheel stamped with 51-48296-0399

1шт.

6

S300924

SPECIAL RING

RING - side rim, for wheel stamped with 90117

1шт.

6

S301693

RING

- side rim, for wheel stamped with 90222

1шт.

6

S301694

RING

- side rim, for wheel stamped with 51-48296-0399

1шт.

7

S300927

LARGE PLATE

PLATE - locking, for wheel stamped with 90117

1шт.

8

426-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 8

- hex, 5/8 NC x 1 inch, for wheel stamped with 90117

2шт.

9

S301691

BLOCK DRIVER

PLATE - driver, for wheel stamped with 90222

1шт.

10

S301695

BLOCK DRIVER

PLATE - driver, for wheel stamped with 51-48296-0399

1шт.

Выбрано товаров: 15
