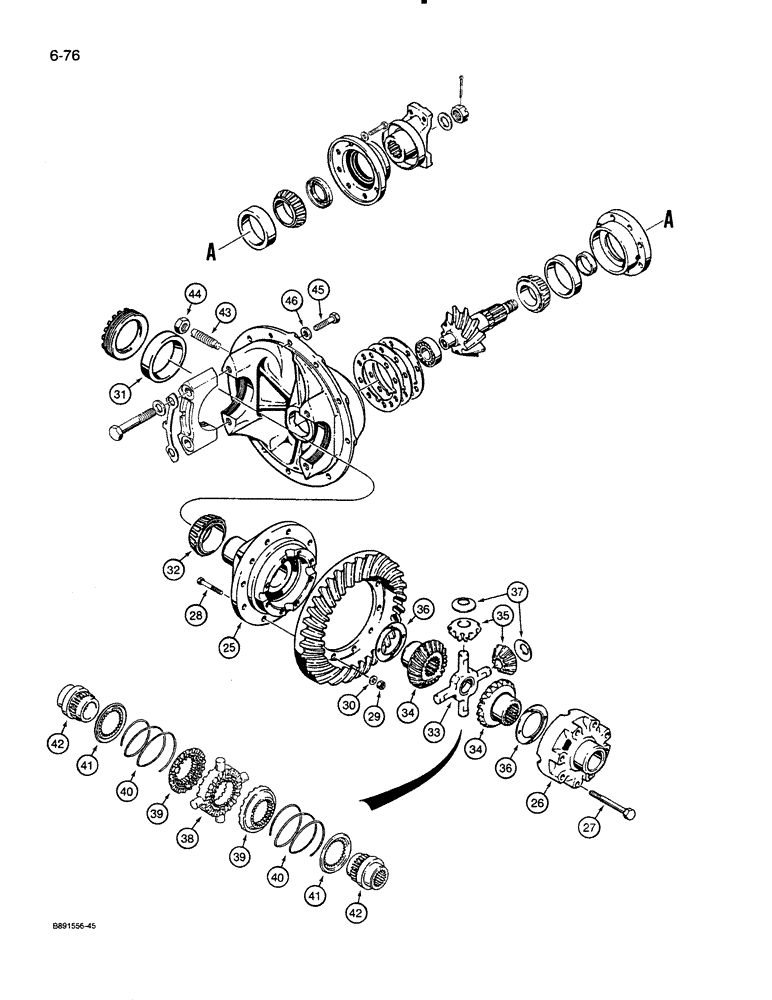

Запчасти Case 821 (6-076) - FRONT AND REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

L125010

4WD AXLE ASSY

AXLE ASSEMBLY - front and rear, continued, parts list Figures 6-070 - 6-076, Includes: Ref. 25 - 46 and 1 - 24 on Figure 6-74

1-2шт.

L125788

AXLE HOUSING

AXLE ASSEMBLY - rear with no spin differential, if used, parts list Figures 6-070 - 6-076, Includes: Ref. 25 - 46 and 1 - 24 on Figure 6-74

1шт.

S300793

DIFFERENTIAL

ASSEMBLY - axle, continued, Includes: Ref. 25 - 44

1шт.

S300883

DIFFERENTIAL

ASSEMBLY - no-spin, rear axle, see Refs. 38 - 42 below, continued, Includes: Ref. 25 - 44

1шт.

N6268

DIFFERENTIAL

CASE ASSEMBLY - differential, Includes: Ref. 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

CASE - flange half

1шт.

26

NSS

NOT SOLD SEPARAT

CASE - plain half

1шт.

27

514-902

BOLT,Hex, M14 x 2 x 120mm, Cl 10.9

- hex, self-locking, 14 - 2 x 120 mm, class 10.9

12шт.

28

S300310

WHEEL BOLT

BOLT - hex, self-locking, special

12шт.

29

S300311

NUT

- hex, lock

12шт.

30

N6259

WASHER

- flat, hardened

12шт.

S300830

BEARING ASSY

KIT - bearing, Includes: Ref. 31 and 32

1шт.

S300830 SHOWS IT WOULD INCLUDE 2 EA REF 31 AND 32. QUALITY COMMENTS SHOW VENDOR ADVISED IT IS ACTUALLY ONLY 1 EA.

1шт.

31

NSS

NOT SOLD SEPARAT

CUP - bearing, gear

2шт.

32

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

2шт.

33

S300829

TOGGLE

SPIDER - differential, included with S300793 differential assembly, if used

1шт.

34

S300827

PINION

GEAR - side, differential

2шт.

35

N6247

PINION

GEAR - pinion, differential

4шт.

36

N6246

WASHER

- thrust, side gear

2шт.

37

S300828

WASHER

- thrust, pinion, used with S300829 spider

4шт.

S301649

DIFFERENTIAL

SPIDER AND GEAR ASSEMBLY - no-spin, included with S300883 differential assembly, if used, Includes: Ref. 38 - 42

1шт.

38

S229275

TOGGLE

SPIDER - differential

1шт.

39

S229276

GEAR

- side, inner

2шт.

40

S105726

SPRING

- spider

2шт.

41

S105727

COLLAR

RETAINER - spring

2шт.

42

S301650

GEAR

- side, outer

2шт.

43

N6213

SCREW,M22 x 2.5 x 2.5mm

- thrust

1шт.

44

N6255

LOCK NUT

- hex, special

1шт.

45

514-1002

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9

- hex, self-locking, 16 - 2 x 45 mm, class 10.9

12шт.

46

D74504

WASHER

- flat, special

12шт.
