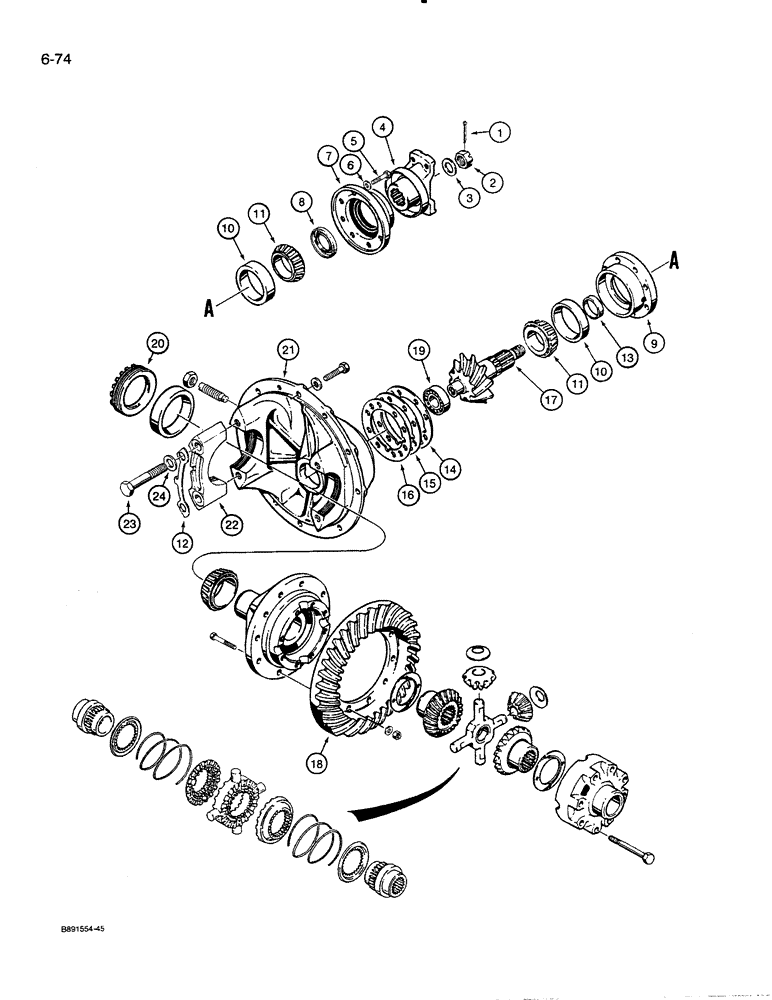

Запчасти Case 821 (6-074) - FRONT AND REAR AXLE DIFFERENTIAL (06) - POWER TRAIN

L125010

4WD AXLE ASSY

AXLE ASSEMBLY - front and rear, parts list Figures 6-070 - 6-076, Includes: Ref. 1 - 24 and 25 - 46 on Figure 6-76

1-2шт.

L125788

AXLE HOUSING

AXLE ASSEMBLY - rear with no-spin differential, if used, parts list Figures 6-070 - 6-076, Includes: Ref. 1 - 24 and 25 - 46 on Figure 6-76

1шт.

S300793

DIFFERENTIAL

ASSEMBLY - axle, Includes: Ref. 1 - 24

1шт.

S300883

DIFFERENTIAL

ASSEMBLY - no-spin, rear axle, see Refs. 38 - 42, if used, Includes: Ref. 1 - 24

1шт.

1

132-62

COTTER PIN,1/8" x 3 1/4"

PIN, Split (Cotter), 1/8" x 3 1/4"

1шт.

2

N6256

NUT

NUT - hex, slotted, pinion

1шт.

3

N6257

WASHER

- flat

1шт.

4

S300821

SHIN

FLANGE AND SLINGER - coupling

1шт.

5

514-811

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

- hex, self-locking, 12 mm - 1.75 x 50 mm, class 10.9

8шт.

6

S300814

WASHER

- flat, special

8шт.

7

S300825

COVER

RETAINER - oil seal

1шт.

8

N6265

OIL SEAL

SEAL - oil

1шт.

N7050

CAGE ASSY.

CAGE AND BEARING ASSEMBLY - pinion shaft (Replaces S300823), Includes: Ref. 9 - 11

2шт.

N7050 would consist of: (1) NSS Cage (includes 2 NSS Cups), (2) NSS Innercones (N6216) & (1) N6217 Spacer Kit (Sets preload).

1шт.

9

NSS

NOT SOLD SEPARAT

CAGE - pinion shaft

1шт.

S301666

BEARING ASSY

KIT - bearing, Includes: Ref. 10 and 11

2шт.

10

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - tapered roller

1шт.

12

N6223

LARGE PLATE

PLATE - lock

2шт.

13

N6217

KIT

- spacer, set of 8 combined sizes

1шт.

14

N6222

SHIM,.076mm Thk

(.003") .076mm Thk

1шт.

15

N6221

SHIM,.127mm Thk

(.005") .127mm Thk

1шт.

16

N6220

SHIM,.254mm Thk

(.010") .254mm Thk

1шт.

S300820

GEAR

AND PINION ASSEMBLY - differential, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

SHAFT - pinion, differential

1шт.

18

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

19

S300826

ROLLER BEARING,35 mm ID x 80 mm OD x 21 mm

BEARING - pinion shaft

1шт.

20

N6219

RING

- adjusting

2шт.

N6210

CAGE

CASE ASSEMBLY - carrier, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

CASE - carrier

1шт.

22

NSS

NOT SOLD SEPARAT

CAP - bearing

2шт.

23

826-20120

BOLT,Hex, M20 x 2.5 x 120mm, Cl 10.9

- hex, 20 mm - 2.5 x 120 mm, class 10.9

4шт.

24

D80556

WASHER

- flat, special

4шт.
