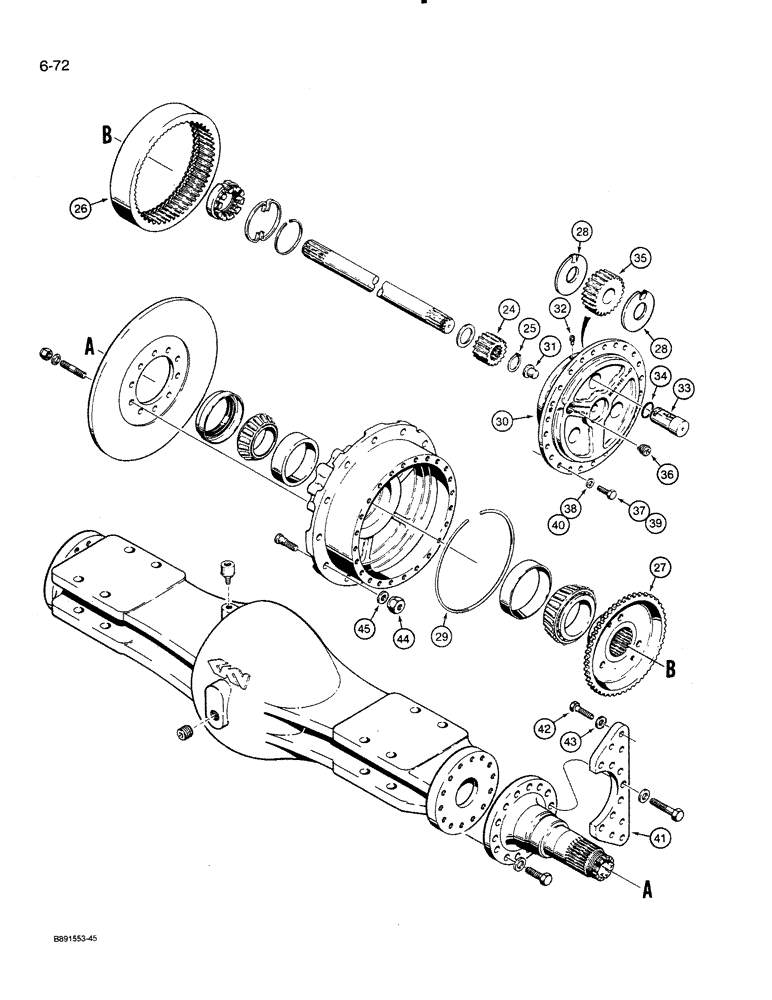

Запчасти Case 821 (6-072) - AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L125010

4WD AXLE ASSY

AXLE ASSEMBLY - front and rear, parts list Figures 6-070 - 6-076, Includes: Ref. 24 - 41 and 1 - 23 on Figure 6-70

1-2шт.

L125788

AXLE HOUSING

AXLE ASSEMBLY - rear with no spin differential, if used, parts list Figures 6-070 - 6-076, Includes: Ref. 24 - 41 and 1 - 23 on Figure 6-70

1шт.

24

S300812

SUN GEAR

GEAR - sun, planetary

2шт.

25

S300813

RING, SNAP

RING - snap, sun gear

2шт.

26

S300805

SLEWING RING

GEAR - ring, planetary

2шт.

27

S300806

RING, FLYWHEEL

HUB - ring gear

2шт.

28

S300804

WASHER

- thrust, special, pinion gear

12шт.

29

D74456

RING

- retaining, ring gear

2шт.

30

S300801

COVER

- planetary

2шт.

31

D74467

PLUG

- thrust

2шт.

32

N6241

SET SCREW,M10 x 1.5 x 1.5mm, Gr 8.8

- set, cover

6шт.

33

S300803

SHAFT

- pinion

6шт.

34

D80559

O-RING,41.6 mm ID

- shaft seal

6шт.

35

S300802

GEAR, PLANETARY

GEAR - pinion, planetary

6шт.

36

D74516

PLUG

- cover

2шт.

37

514-806

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9

- hex, self-locking, 12 mm - 1.75 x 35 mm, class 10.9

46шт.

38

D74508

WASHER

- flat, 13 mm x 22 mm x 2.5 mm, hardened

46шт.

39

514-901

BOLT,Hex, M14 x 2 x 35mm, Cl 10.9

- hex, self-locking, 14 mm - 2 x 35 mm, class 10.9 oil drain

2шт.

40

D74509

WASHER

- flat, 15 mm x 24 mm x 2.5 mm

2шт.

41

S300816

SUPPORT

PLATE - caliper mount

2шт.

42

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, grade 8

24шт.

43

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened

24шт.

44

29-1714

NUT,7/8"-14, G8, Hvy

NU, , Hex, NF (Replaces 25-1714) 7/8"-14, G8, Hvy

64шт.

45

S92341

WASHER

- flat, special

64шт.
