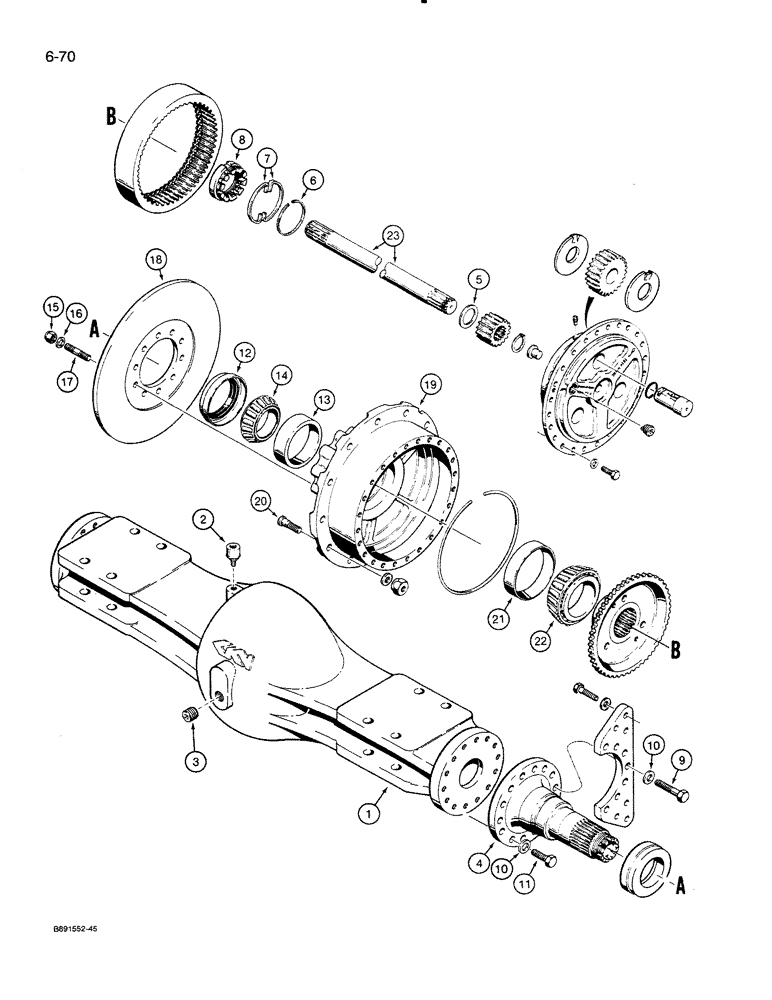

Запчасти Case 821 (6-070) - AXLE HOUSING AND PLANETARY (06) - POWER TRAIN

L125010

4WD AXLE ASSY

AXLE ASSEMBLY - front and rear, parts list Figures 6-070 - 6-076, Includes: Ref. 1 - 23 and 24 - 41 on Figure 6-72

1-2шт.

L125788

AXLE HOUSING

AXLE ASSEMBLY - rear with no spin differential, if used, parts list Figures 6-070 - 6-076, Includes: Ref. 1 - 23 and 24 - 41 on Figure6-72

1шт.

1

S300817

HOUSING

- axle

1шт.

2

D74469

BREATHER

- axle

1шт.

Never used on 821 Loader. Should be S301626 .

1шт.

3

S300819

PLUG

- magnetic, filler

2шт.

4

S300810

SPINDLE

- axle

2шт.

5

S300815

WASHER

- flat, special

2шт.

6

D77571

VALVE SPRING

RING - spring

2шт.

7

D77570

RING

- retaining, spring

4шт.

8

S300811

LOCK NUT

- locking

2шт.

9

514-1203

BOLT,Hex, M20 x 2.5 x 80mm, Cl 10.9

- hex, self-locking, 20 mm - 2.5 x 80 mm, class 10.9

14шт.

10

D80556

WASHER

- flat, special

28шт.

11

514-1202

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9

- hex, self-locking, 20 mm - 2.5 x 55 mm, class 10.9

14шт.

12

S300795

OIL SEAL

SEAL - hub

2шт.

S300873

BEARING ASSY

KIT - bearing, Includes: Ref. 13 and 14

2шт.

13

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

14

NSS

NOT SOLD SEPARAT

BEARING - tapered roller, inner

1шт.

15

D74505

NUT

- lock

36шт.

16

D74504

WASHER

- flat, special

36шт.

17

D74503

STUD

- hub

36шт.

18

S300800

BRAKE DISC

DISC - brake

2шт.

19

S300794

HUB

- wheel

2шт.

20

S301019

STUD

BOLT - press in

32шт.

S300872

BEARING ASSY

KIT - bearing, Includes: Ref. 21 and 22

2шт.

21

NSS

NOT SOLD SEPARAT

CUP - bearing

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - tapered roller, outer

1шт.

23

S300809

SHAFT

- axle, left-hand front and right-hand rear, short

1шт.

23

S300808

SHAFT

- axle, right-hand front and left-hand rear, long

1шт.
