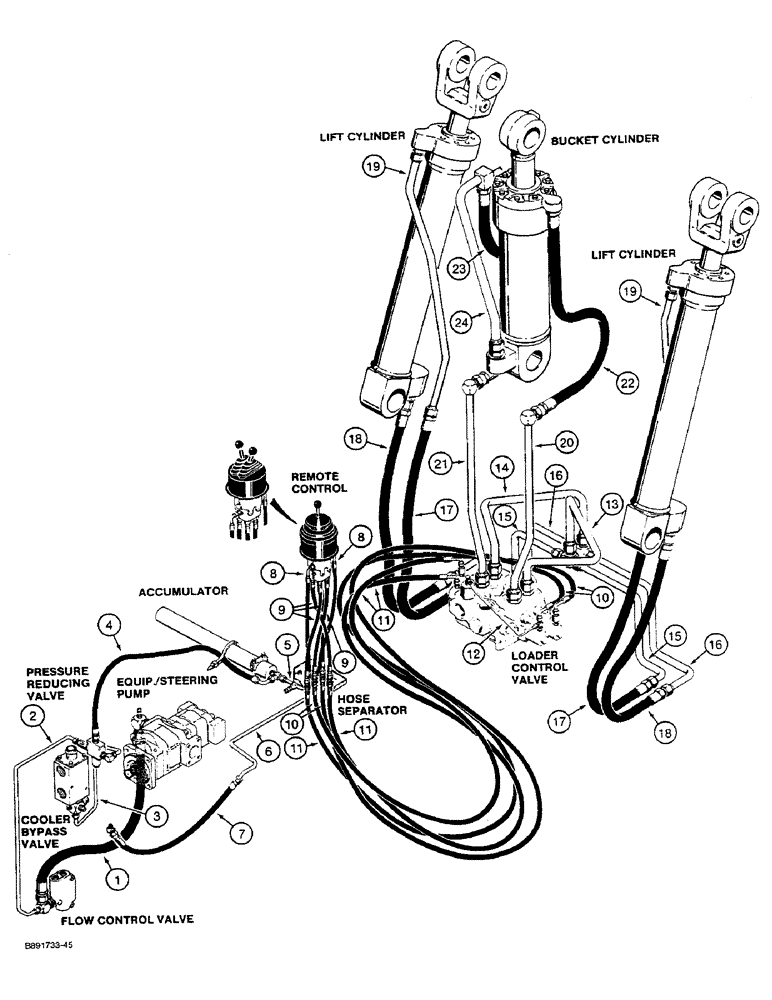

Запчасти Case 821 (1-016) - PICTORIAL INDEX, HYDRAULIC CIRCUIT - TWO SPOOL VALVE, STEERING PUMP TO CYLINDERS (00) - PICTORIAL INDEX

1

HOSE, elbow at steering pump to elbow at rear port of flow control valve, Figure 8-068

1шт.

2

Tube, elbow at flow control valve to check valve at pressure reducing valve, Figure 8-068

1шт.

3

Tube, elbow at pressure reducing valve to manifold at lower port or cooler bypass valve, Figure 8-068

1шт.

4

Hose, pressure reducing valve to tee at accumulator, Figure 8-068

1шт.

5

Tube, accumulator to hose separator, Figure 8-068

1шт.

6

Tube, hose separator to hose at hydraulic reservoir, Figure 8-068

1шт.

7

Hose, tube to hydraulic reservoir, Figure 8-068

1шт.

8

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports, Figures 8-052 and 8-054

1шт.

9

Hose, hose separator to remote control, Figures 8-052 and 8-054

1шт.

10

Hose, hose separator to ports 1A and 2A, Figure 8-056

1шт.

11

Hose, hose separator to ports 1B and 2B, Figure 8-056

1шт.

12

Tube, inlet and outlet section to tee at port 1A, Figure 8-056

1шт.

13

Supply tube, right-hand, at valve to lift cylinders, Figure 8-012

1шт.

14

Supply tube, left-hand, at valve to lift cylinder, Figure 8-012

1шт.

15

Supply tube, to rod end of lift cylinder, Figure -012

1шт.

16

Supply tube, to closed end of lift cylinder, Figure 8-012

1шт.

17

Hose, to rod end of lift cylinder, Figure 8-012

1шт.

18

Hose, to closed end of lift cylinder, Figure 8-012

1шт.

19

Tube, to rod end of lift cylinder, Figure 8-012

1шт.

20

Supply tube, right-hand, to bucket cylinder, Figure 8-014

1шт.

21

Supply tube, left-hand, to bucket cylinder, Figure 8-014

1шт.

22

Hose, tube to rod end of bucket cylinder, Figure 8-014

1шт.

23

Hose, tube to closed end bucket cylinder, Figure 8-014

1шт.

24

Tube, bucket cylinder, closed end, Figure 8-014

1шт.
