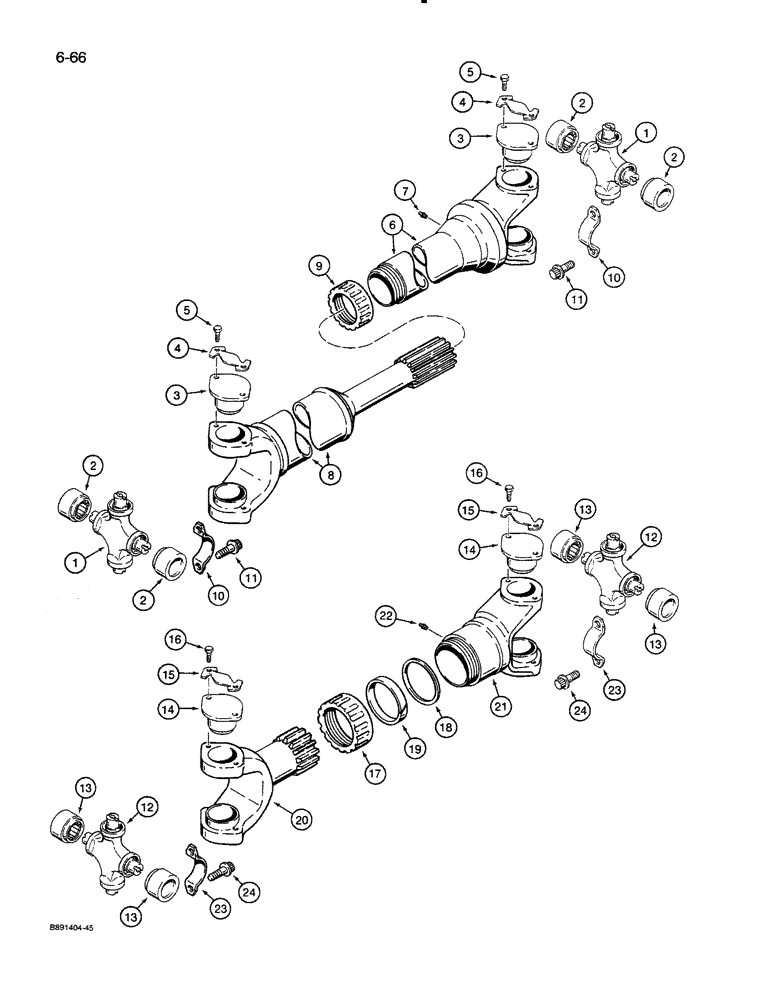

Запчасти Case 821 (6-066) - CENTER AND REAR DRIVE SHAFT (06) - POWER TRAIN

L125185

SHAFT

ASSEMBLY - drive, center, Includes: Ref. 1 - 9

1шт.

S300315

BEARING ASSY

KIT - universal joint, journal and bearing, center drive shaft, Includes: Ref. 1 - 5

2шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, center drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - cap, large, center drive shaft

2шт.

3

NSS

NOT SOLD SEPARAT

BEARING - cap, small, with flange, center drive shaft

2шт.

4

S300317

SUPPORT

STRAP - retaining, bearing to yoke, center drive shaft

2шт.

5

S300316

BOLT

BOLT - special, bearing strap, center drive shaft

4шт.

6

S300314

HALF SHAFT

YOKE - slip, transmission end, center drive shaft

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, center drive shaft

1шт.

8

120252A1

COUPLING

YOKE - spline, axle end, center drive shaft

1шт.

9

S300318

CAP

SEAL - dust, drive shaft, center

1шт.

10

L125187

SUPPORT

STRAP - retaining, bearing, center drive shaft

4шт.

11

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Center drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.

L125803

SHAFT

ASSEMBLY - drive, rear axle, Includes: Ref. 12 - 22

1шт.

S300315

BEARING ASSY

KIT - universal joint, journal and bearing, rear drive shaft, Includes: Ref. 12 - 16

2шт.

12

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, rear drive shaft

1шт.

13

NSS

NOT SOLD SEPARAT

BEARING - cap, large, rear drive shaft

2шт.

14

NSS

NOT SOLD SEPARAT

BEARING - cap, small, with flange, rear drive shaft

2шт.

15

S300317

SUPPORT

STRAP - retaining, bearing to yoke, rear drive shaft

2шт.

16

S300316

BOLT

BOLT - special, bearing strap, rear drive shaft

4шт.

17

S300345

CAP

- yoke end, rear drive shaft

1шт.

18

S300646

WASHER

WASHER - steel, rear drive shaft

1шт.

19

S300647

WASHER

- cork, rear drive shaft

1шт.

20

S300348

YOKE

- spline, axle end, rear drive shaft

1шт.

21

S300344

YOKE

- slip, transmission end, rear drive shaft

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, rear drive shaft

1шт.

23

L125187

SUPPORT

STRAP - bearing, rear drive shaft

4шт.

24

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Rear drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

8шт.
