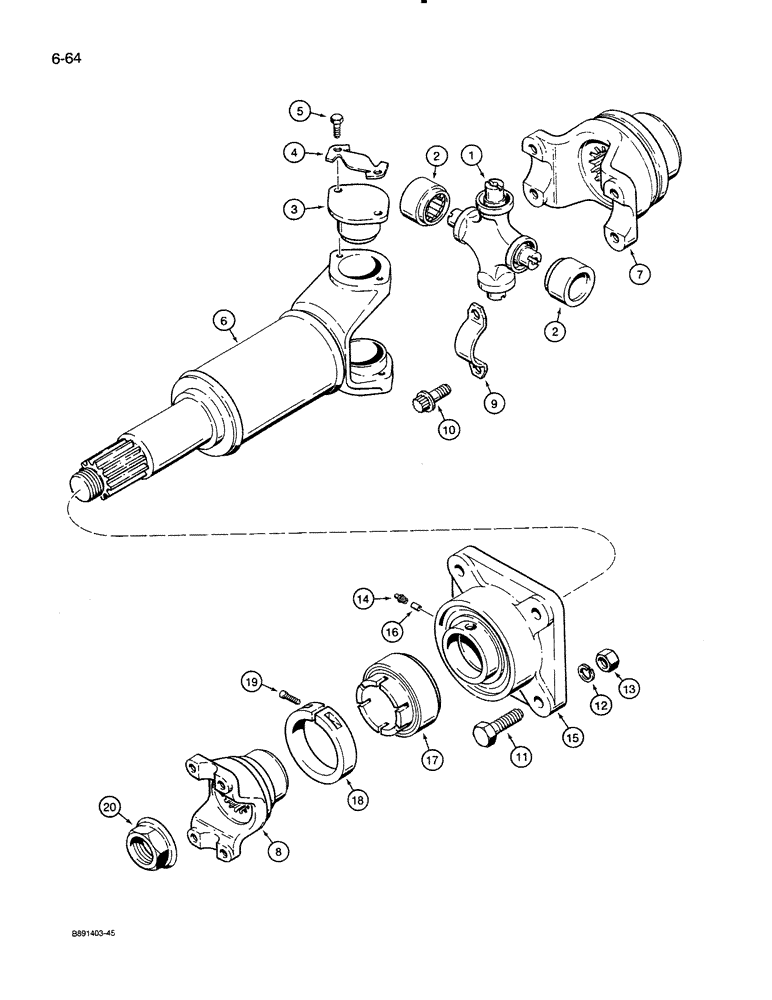

Запчасти Case 821 (6-064) - FRONT DRIVE SHAFT AND SUPPORT BEARING (06) - POWER TRAIN

L125183

SHAFT ASSY.

SHAFT ASSEMBLY - drive, front axle, Includes: Ref. 1 - 6

1шт.

S300315

BEARING ASSY

KIT - universal joint, journal and bearing, front drive shaft, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

JOURNAL - universal joint, front drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - cap, without flange, front drive shaft

2шт.

3

NSS

NOT SOLD SEPARAT

BEARING - cap, with flange, front drive shaft

2шт.

4

S300317

SUPPORT

STRAP - retaining, bearing to tube, front drive shaft

2шт.

5

S300316

BOLT

BOLT - special, bearing strap, front drive shaft

4шт.

6

S300352

HALF SHAFT

TUBE - yoke, spline, axle end, front drive shaft

1шт.

7

REF

INSTRUCTION

FLANGE - companion, drive shaft to front axle, see Ref. 4, Figure 6-074

1шт.

8

L125184

YOKE

- drive shaft to center bearing, front

1шт.

9

L125187

SUPPORT

STRAP - retaining, bearing to flange, front drive shaft

2шт.

10

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

BOLT, , Special, Bearing strap, Front drive shaft 12 pt Flg Hd, 3/8"-16 x 3/4, G8

4шт.

11

413-928

BOLT,Hex, 9/16" - 12 x 1-3/4", Gr 5

- hex, 9/16 NC x 1-3/4 inch, drive shaft support bearing

4шт.

12

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, , Drive shaft support bearing 9/16"

4шт.

13

425-109

NUT,9/16"-12, G5

- hex, 9/16 inch NC, drive shaft support bearing

4шт.

L106070

FLANGED BEARING

BEARING ASSEMBLY - front drive shaft, support, Includes: Ref. 14 - 19

1шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, drive shaft support bearing

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - bearing, drive shaft support

1шт.

16

L33788

AXLE PIN

PIN - lock, 1/4 inch diameter, drive shaft support bearing

1шт.

L33787

KIT

- repair, bearing and collar, drive shaft support, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

BEARING AND SEAL ASSEMBLY - center bearing , drive shaft support

1шт.

18

L33789

COLLAR

- bearing, drive shaft support

1шт.

19

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT - hex socket, 1/4 NC x 1inch, drive shaft support bearing

1шт.

20

S300353

NUT

- hex, flanged, special, included with L125183 drive shaft, support bearing

1шт.
