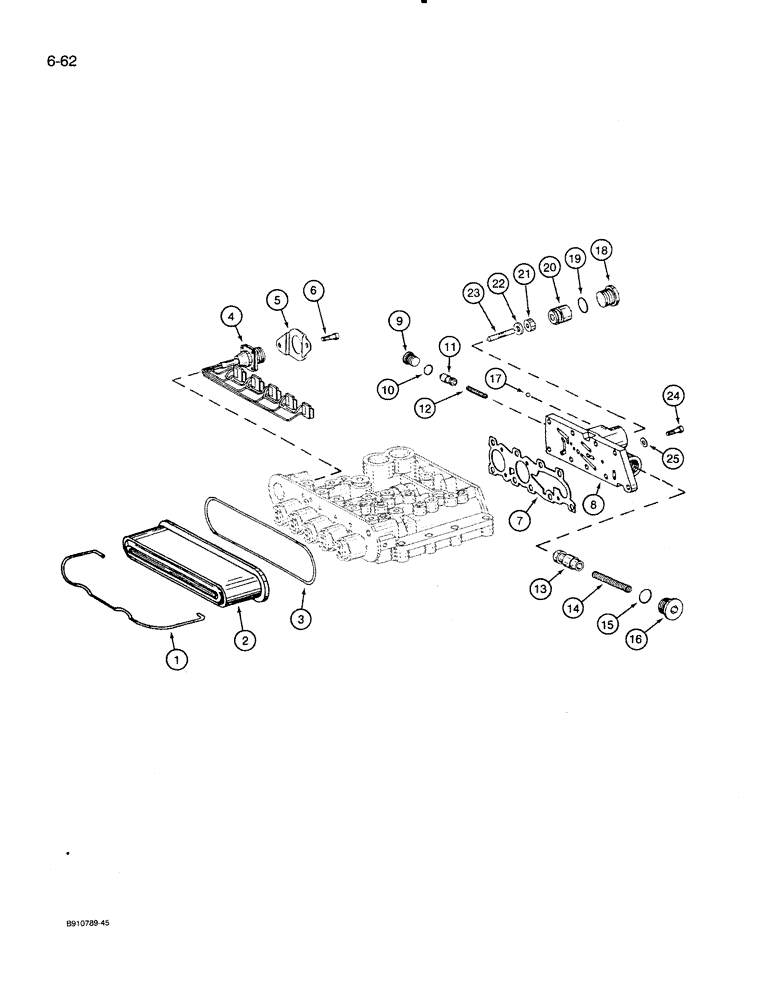

Запчасти Case 821 (6-062) - TRANSMISSION ASSEMBLY, CONTROL VALVE, P.I.N JAK0024165 AND AFTER (06) - POWER TRAIN

L129917

TRANSMISSION

ASSEMBLY - includes Refs. 1 and 2 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Refs. on Figures 6-034 - 6-062, Includes: Ref. 1 - 25

1шт.

100333A1

VALVE

ASSEMBLY - transmission control, includes all Refs. on this Figure and Figure 6-060, Includes: Ref. 1 - 25

1шт.

1

100361A1

CLAMP

- wire, solenoid cover

1шт.

2

100360A1

COVER

- solenoid

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL - solenoid cover

1шт.

4

100357A1

HARNESS

- transmission control valve

1шт.

5

100359A1

LARGE PLATE

BRACKET - harness mounting

1шт.

6

100358A1

SCREW

- cap, special

2шт.

7

100351A1

GASKET

- cover

1шт.

8

100362A1

HOUSING

COVER - valve, front

1шт.

9

100367A1

PLUG

- hex socket, special

1шт.

10

100369A1

O-RING,9.5mm ID x 2mm Width

- plug

1шт.

11

100366A1

PISTON

SPOOL - small, relief

1шт.

12

100368A1

COMPRESSION SPRING

SPRING - small, relief spool

1шт.

13

100370A1

PISTON

SPOOL - large, relief

1шт.

14

N14721

SPRING

- large, relief spool

1шт.

15

S300495

O-RING,2mm Thk x 15mm ID

- plug

1шт.

16

934164R1

PLUG,Hex Soc, M18 x 1.5

- hex socket, 18 mm - 1.5

1шт.

17

S300552

BALL

- valve cover

4шт.

18

S301601

PLUG

- hex, special, if used

1шт.

19

S301602

O-RING,2mm Thk x 17mm ID

O-RING - plug, if used

1шт.

20

100364A1

PISTON

- 20.5, if used

1шт.

20

100365A1

PISTON

- 21.5, if used

1шт.

21

100342A1

PISTON

SHIM - piston

1шт.

Is not used in this application

1шт.

22

S301604

SHIM

- 2.0 mm thick, if used

1шт.

22

S301605

SHIM

- 3.0 mm thick, if used

1шт.

22

S301606

SHIM

- 4.0 mm thick, if used

1шт.

22

S301607

SHIM

- 6.0 mm thick, if used

1шт.

22

S301608

SHIM

- 8.0 mm thick, if used

1шт.

23

S301603

NEEDLE

PLUNGER - valve

1шт.

24

100363A1

SCREW

BOLT - hex socket, 6 - 1 x 18 mm, special

9шт.

25

3078026R1

WASHER,M6.4

- flat, special

9шт.
