(6-054) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK, P.I.N. JAK0024165 AND AFTER

Запчасти Case 821 (6-054) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN

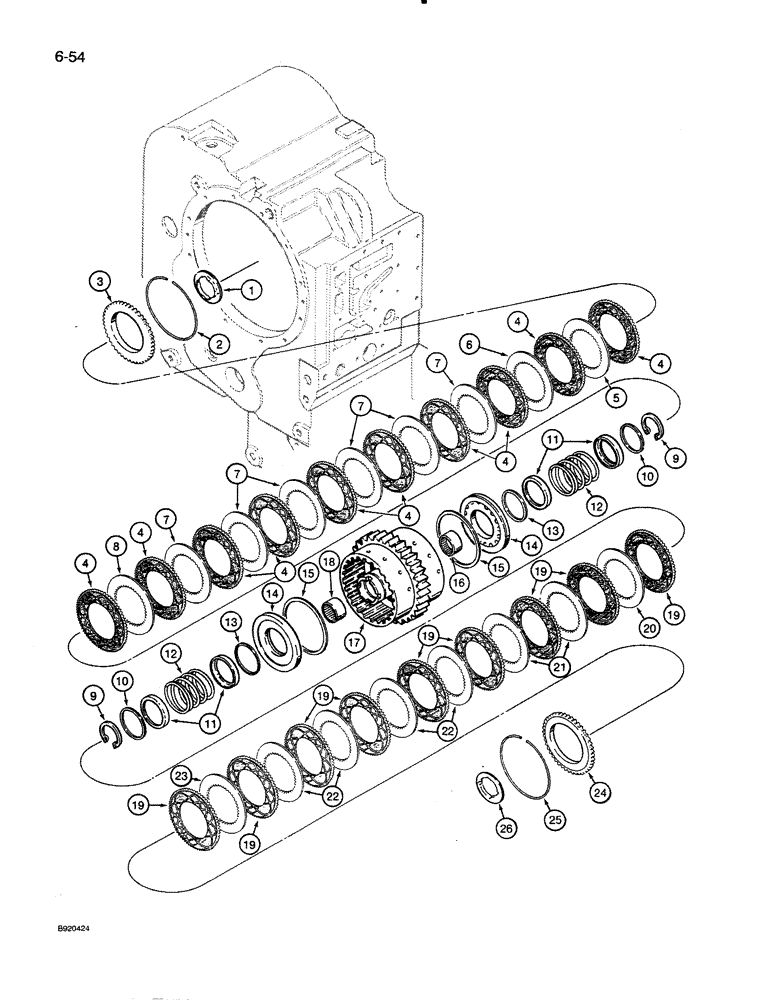

Схема запчастей Case 821 - (6-054) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN
19
9
22
14
11
4
4
4
19
7
2
12
22
5
19
15
19
6
9
12
10
16
4
7
11
14
15
3
4
10
24
19
26
17
13
7
18
1
21
25
8
4
4
13
23
19
7
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L129917

TRANSMISSION

ASSEMBLY - includes Refs. 1 and 2 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Refs. on Figures 6-034 - 6-062, Includes: Ref. 1 - 26

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches

1шт.

1

E135218

THRUST RING

WASHER - thrust

1шт.

2

E135124

RING, SNAP

RING - retaining, internal

1шт.

3

E135222

NOTCHED DISK

DISC - clutch, steel, outer teeth

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, outer teeth

10шт.

5

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth, if used

1шт.

5

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth, if used

1шт.

5

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth, if used

1шт.

6

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth

1шт.

7

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth

6шт.

8

E135225

NOTCHED DISK

DISC - 2.0 mm thick, steel, inner teeth

1шт.

9

E135219

SEALING RING

RING - snap, external

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

- clutch

2шт.

13

106876A1

SEALING RING,60mm ID x 2.5mm Thk

RING - seal, piston ID

2шт.

14

S301540

PISTON

- clutch

2шт.

15

E135142

SEALING RING

RING - seal, piston OD

2шт.

16

E135044

BEARING, NEEDLE

BEARING - needle, 40 mm ID x 47 mm 0D x 20 mm

1шт.

17

106922A1

CYLINDER END CAP

HOUSING - third and fourth clutches

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle, 35 mm ID x 42 mm OD x 20 mm

1шт.

19

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, outer teeth

9шт.

20

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth

1шт.

21

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth

2шт.

22

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth

4шт.

23

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth, if used

1шт.

23

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth, if used

1шт.

23

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth, if used

1шт.

24

E135222

NOTCHED DISK

DISC - clutch, steel, outer teeth

1шт.

25

E135124

RING, SNAP

RING - retaining, internal

1шт.

26

E135218

THRUST RING

WASHER - thrust

1шт.
