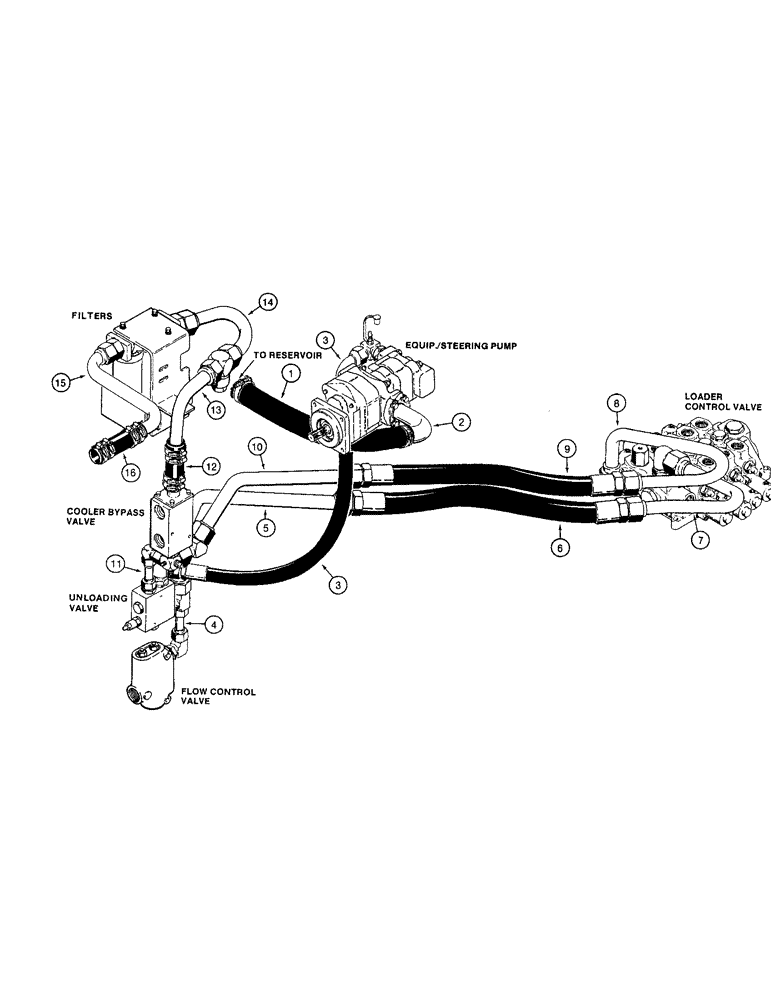

Запчасти Case 821 (1-014) - PICTORIAL INDEX, BASIC HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Suction hose, hydraulic reservoir to tube at pump, Figure 8-004

1шт.

2

Tube, from suction hose at hydraulic reservoir to steering and equipment pump, Figure 8-004

1шт.

3

Supply hose, elbow at pump to elbow at upper front port of unloading valve, Figure 8-004

1шт.

4

Tube, from tee at from port of unloading valve to elbow at front port of flow control valve, Figure 8-004

1шт.

5

Supply tube, from tee at unloading valve to hose at loader control valve, Figure 8-004

1шт.

6

Supply hose, from tube at unloading valve to tube at loader control valve, Figure 8-004

1шт.

7

Supply tube, from hose to elbow at upper inlet port of loader control valve, Figure 8-004

1шт.

8

Return tube, from elbow at rear outlet port of loader control valve to hose, Figure 8-006

1шт.

9

Return hose, tube at loader control valve to tube at cooler bypass valve, Figure 8-006

1шт.

10

Return tube, hose from loader control valve to elbow at manifold to cooler bypass valve, Figure 8-006

1шт.

11

Tube, from elbow at manifold to cooler bypass valve to adapter at unloading valve, Figure 8-006

1шт.

12

Hose, cooler bypass valve to formed tube at tee, Figure 8-008

1шт.

13

Tube, hose at cooler bypass valve to tee at tube to oil filter, Figure 8-008

1шт.

14

Tube, tee at tube from cooler bypass valve to adapter at oil filter, Figure 8-008

1шт.

15

Tube, adapter at oil filter to hose at hydraulic reservoir, Figure 8-010

1шт.

16

Hose, tube at oil filter to hydraulic reservoir, Figure 8-010

1шт.
