(6-046) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, P.I.N. JAK0024165 AND AFTER

Запчасти Case 821 (6-046) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN

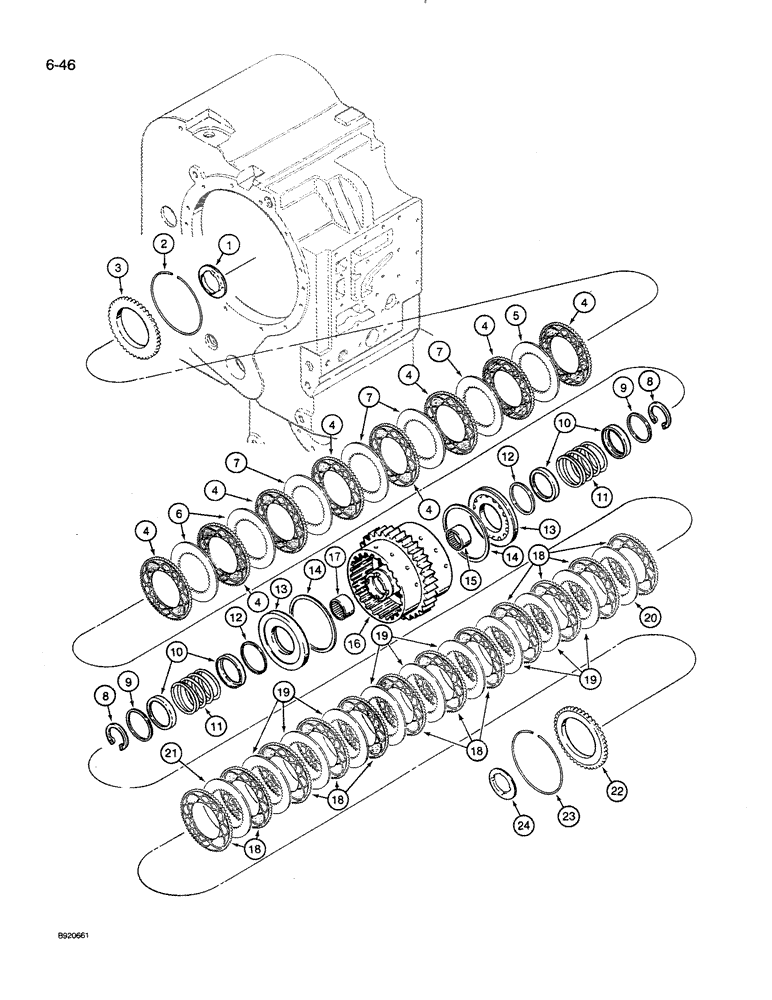

Схема запчастей Case 821 - (6-046) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCH PACK, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN
24
20
5
6
4
15
19
13
7
12
4
13
4
7
21
18
1
18
14
9
4
22
14
10
18
4
19
9
19
23
12
3
16
17
4
8
10
7
2
8
18
11
11
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L129917

TRANSMISSION

ASSEMBLY - includes Refs. 1 and 2 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Refs. on Figures 6-034 - 6-062, Includes; Ref. 1 - 24

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, forward and low clutches

1шт.

1

E135227

THRUST RING

PLATE - thrust

1шт.

2

E135125

RING, SNAP

RING - retaining, internal

1шт.

3

E135261

NOTCHED DISK

DISC - clutch, steel, outer teeth

1шт.

4

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, outer teeth

8шт.

5

E135271

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth, if used

1шт.

5

E135272

NOTCHED DISK

DISC - 2.5 mm thick, inner teeth, if used

1шт.

6

E135272

NOTCHED DISK

DISC - clutch, steel, inner teeth

2шт.

7

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, inner teeth

4шт.

8

E135019

CIRCLIP

RING - snap, external

2шт.

9

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

10

E135220

GUIDE RING

GUIDE - spring

4шт.

11

E135131

SPRING

- clutch

2шт.

12

106876A1

SEALING RING,60mm ID x 2.5mm Thk

RING - seal, piston ID

2шт.

13

S301950

PISTON

- clutch

2шт.

14

E135140

SEALING RING

RING - seal, piston OD

2шт.

Changed to 199079A1 effective at Transmission S/N 10392.

1шт.

15

E135045

BEARING, NEEDLE,Needle, 40mm ID x 47mm OD x 26mm W

BEARING - needle, 40 mm ID x 47 mm OD x 26 mm

1шт.

16

106904A1

PINION CARRIER

HOUSING - forward and low clutch

1шт.

17

E135043

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 26mm W

BEARING - needle, 35 mm ID x 42 mm OD X 26mm

1шт.

18

E135005

CLUTCH PLATE,109mm ID x 177.5mm OD x 2mm Thk

DISC - clutch, fibre, outer teeth

12шт.

19

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, inner teeth

9шт.

20

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth

1шт.

21

E135271

NOTCHED DISK

DISC - 2.0 mm thick, steel, inner teeth, if used

1шт.

21

E135272

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth, if used

1шт.

22

E135261

NOTCHED DISK

DISC - clutch, steel, outer teeth

1шт.

23

E135125

RING, SNAP

RING - retaining, internal

1шт.

24

E135218

THRUST RING

WASHER - thrust

1шт.
