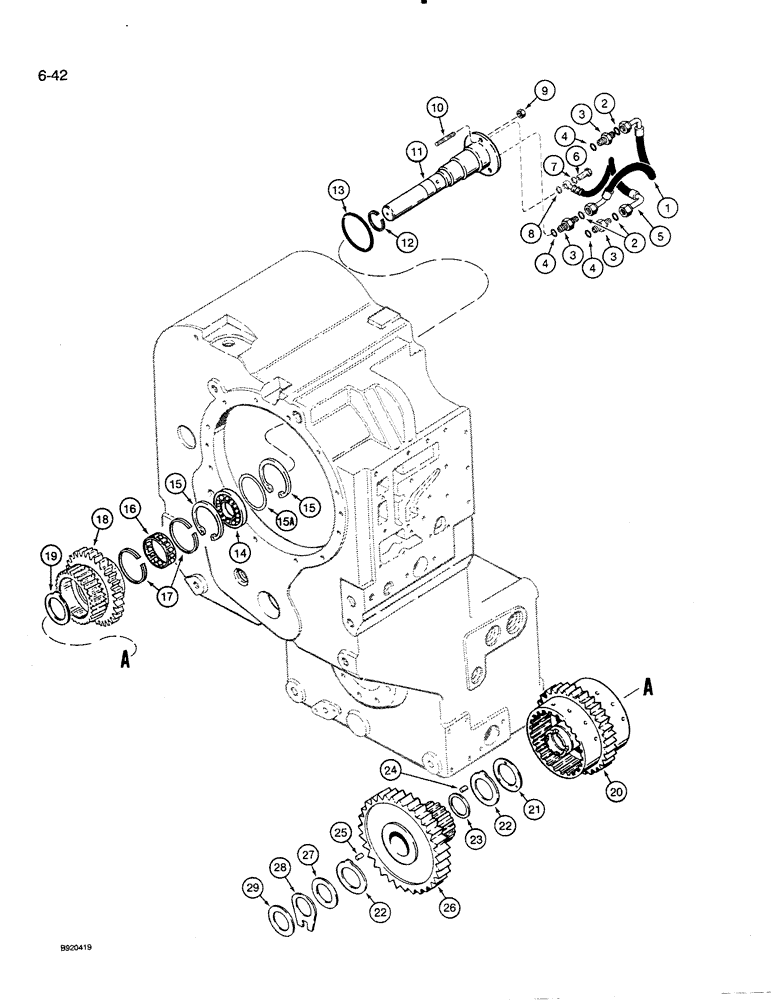

Запчасти Case 821 (6-042) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN

L129917

TRANSMISSION

ASSEMBLY - includes Refs. 1 and 2 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Refs. on Figures 6-034 - 6-062, Includes: Ref. 1 - 29

1шт.

1

S300583

HOSE

- 620 mm long, forward clutch

1шт.

2

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

- adapter, hose end

3шт.

3

S301961

ADAPTER

- hose

3шт.

SHOULD READ S300587 O-RING - ADAPTER, HOSE SIDE.

1шт.

4

S300587

O-RING,12.4mm ID x 1.78mm Width

- adapter, transmission end

3шт.

SHOULD READ S300586 0-RING - ADAPTER, TRANS. SIDE.

1шт.

5

S301960

HOSE

- 750 mm long, low clutch

1шт.

6

S301962

BANJO BOLT

BOLT - hex, hollow

1шт.

7

S301617

O-RING,2mm Thk x 13mm ID

O-RING - bolt, hose end

1шт.

8

S301616

GASKET,2.5mm Thk x 18mm ID

O-RING - bolt, transmission end

1шт.

9

825-1408

NUT,M8, Cl 8

2шт.

10

E135084

STUD

- 8 mm - 1.25 x 18 mm

2шт.

11

E136113

AXLE

- forward and low clutches

1шт.

12

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

- piston, axle shaft

3шт.

13

S300460

O-RING,3mm Thk x 49mm ID

- axle

1шт.

14

L33515

BALL BEARING

BEARING - ball, 45 mm ID x 75 mm OD x 16 mm

1шт.

15

K24302

RING, SNAP

RING - snap, internal

2шт.

15a

S301544

SHIM,0.3mm Thk

(M60 ID x 75 OD) 0.3mm Thk

1шт.

15a

S301545

SHIM,0.5mm Thk

(M60 ID x 75 OD) 0.5mm Thk

1шт.

15a

103598A1

SHIM,60mm ID x 75mm OD x 1.2mm Thk

- 60 mm ID x 75 mm OD x 0.9 mm thick

1шт.

15a

S301546

SHIM,1mm Thk

(M60 ID x 75 OD) 1mm Thk

1шт.

15a

103597A1

SHIM

- 60 mm ID x 75 mm OD x 1.2 mm thick

1шт.

15a

S301547

SHIM,1.5mm Thk

(M60 ID x 75 OD) 1.5mm Thk

1шт.

15a

S301548

SHIM,1.6mm Thk

(M60 ID x 75 OD) 1.6mm Thk

1шт.

16

E135148

ROLLER CAGE BEARING,45mm ID x 75mm OD x 28mm W

BEARING - roller

1шт.

17

E135002

PISTON RING,69.6mm ID x 75.8mm OD x 3mm Thk

RING - retaining, internal, bearing

2шт.

18

106877A1

PINION

GEAR - low

1шт.

19

E135117

WASHER, THRUST

WASHER - thrust, tabbed

1шт.

20

NSS

NOT SOLD SEPARAT

PACK - clutch, low and forward, see Figure 6-046 for components

1шт.

21

E135123

WASHER, THRUST

WASHER - thrust, 35 mm ID x 65 mm OD x 1.5 mm

1шт.

22

E135267

WASHER, THRUST

WASHER - thrust, tabbed

2шт.

23

E135268

WASHER

- 48 mm ID x 54.7 mm OD x 0.8 mm

1шт.

S300462

ROLLER

KIT - bearing, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

NEEDLE - bearing, 10 mm OD x 17 mm long

14шт.

25

NSS

NOT SOLD SEPARAT

NEEDLE - bearing, 10 mm OD x 20 mm long

14шт.

26

S300461

GEAR

- forward

1шт.

27

E135120

WASHER

- thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

28

E135203

WASHER, THRUST

WASHER - thrust, notched

1шт.

29

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

(35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

29

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD) 0.4mm Thk

1шт.

29

E135099

SHIM,0.6mm Thk

(35.1 mm ID x 70 mm OD) 0.6mm Thk

1шт.

29

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 mm ID x 70 mm OD) 0.8mm Thk

1шт.

29

E135101

SHIM,1.0mm Thk

(35.1 mm ID x 70 mm OD) 1.0mm Thk

1шт.

29

E135102

SHIM,1.2mm Thk

(35.1 mm ID x 70 mm OD) 1.2mm Thk

1шт.

29

E135103

SHIM,1.4mm Thk

(35.1 mm ID x 70 mm OD) 1.4mm Thk

1шт.

29

E135104

SHIM,1.6mm Thk

(35.1 mm ID x 70 mm OD) 1.6mm Thk

1шт.

29

E135105

SHIM,1.8mm Thk

(35.1 mm ID x 70 mm OD) 1.8mm Thk

1шт.

29

E135106

SHIM,2.0mm Thk

(35.1 mm ID x 70 mm OD) 2.0mm Thk

1шт.

29

E135107

SHIM,2.2mm Thk

(35.1 mm ID x 70 mm OD) 2.2mm Thk

1шт.

29

E135108

SHIM,2.4mm Thk

(35.1 mm ID x 70 mm OD) 2.4mm Thk

1шт.

29

E135109

SHIM,2.6mm Thk

(35.1 mm ID x 70 mm OD) 2.6mm Thk

1шт.

29

E135110

SHIM,2.8mm Thk

(35.1 mm ID x 70 mm OD) 2.8mm Thk

1шт.
