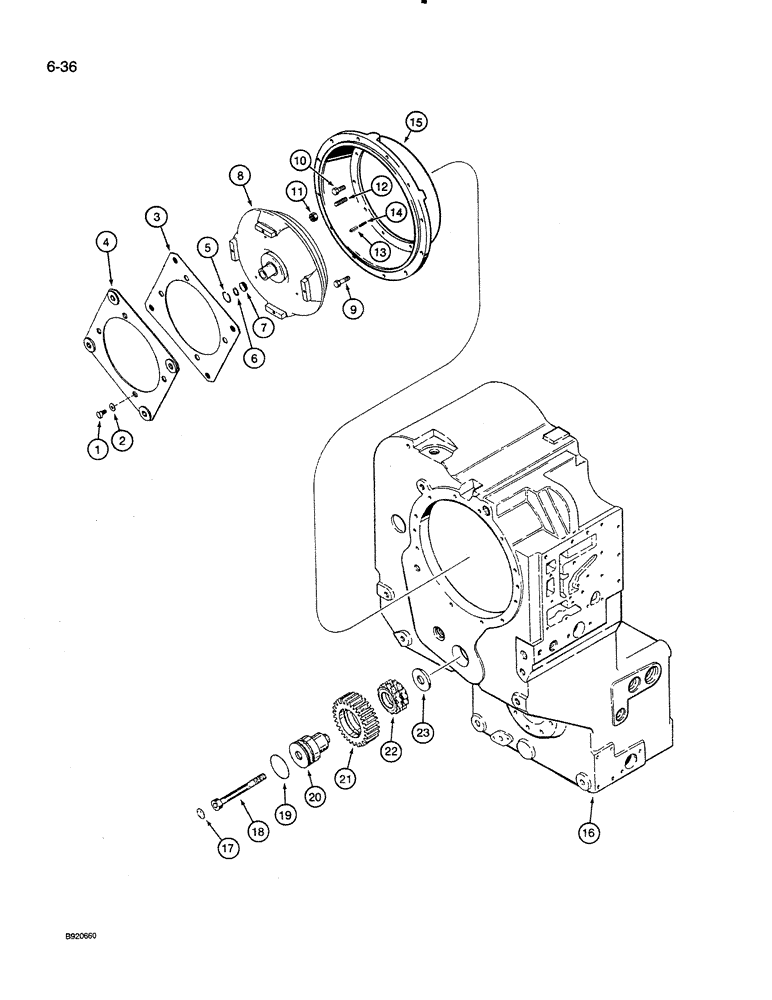

Запчасти Case 821 (6-036) - TRANSMISSION ASSEMBLY IDLER GEAR CONVERTER AND COVER P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 and 2 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Refs. on Figures 6-034 - 6-062, Includes; Ref. 1 - 23

1шт.

1

E136098

BOLT

BOLT - hex, 12 - 1.75 x 18 mm, special

4шт.

2

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

WASHER, M13.5 x 24 x 2.5

4шт.

3

S300441

DIAPHRAGM

PLATE - flex, plain

1шт.

4

E136097

DIAPHRAGM

PLATE - flex, stepped

1шт.

5

R16289

SNAP RING,1.06", Int, #106

Ring, Snap, , converter 1.06", Int, #106

1шт.

6

E135035

O-RING,25 mm ID

SEAL - x 3, O-ring 25 mm ID

1шт.

7

E135167

WASHER

WASHER - sealing

1шт.

8

S300444

TORQUE CONVERTER

CONVERTER - transmission

1шт.

8

S300444R

REMAN-TORQUE CONVERT

821 P.I.N. JAK0024165 & Aft.

1шт.

8

S300444C

CORE-TORQUE CONVERTR

Return Number

1шт.

9

826-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

BOLT - hex, 10 - 1.5 x 50 mm, class 10.9

2шт.

10

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

BOLT, Hex, M10 x 35, 10.9, Full Thd

11шт.

11

825-1010

NUT,M10, Cl 8

NUT - hex, 10 mm - 1.5

1шт.

12

E135083

STUD

STUD - 10 - 1.5 x 30 mm

1шт.

13

E135027

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, 10 mm OD x 28 mm

2шт.

14

E135025

PIN

PIN - roll, 6 mm OD x 28 mm

2шт.

15

E135283

COVER

HOUSING - converter

1шт.

16

106839A1

HOUSING

HOUSING - transmission

1шт.

17

106874A1

BLOCK

PLUG - 25 mm, expansion

1шт.

18

106872A1

HEX SOC SCREW

BOLT - hex socket, 12 - 1.75 x 100 mm, grade 10.9

1шт.

19

S300455

O-RING,3mm Thk x 57mm ID

O-RING - stub axle

1шт.

20

106869A1

AXLE

AXLE - stub, idler gear

1шт.

21

106871A1

PINION

GEAR - idler

1шт.

22

S300458

SET

KIT - needle bearing

1шт.

23

106870A1

THRUST WASHER

WASHER - thrust

1шт.
