(6-034) - TRANSMISSION ASSEMBLY, HOUSING, P.I.N. JAK0024165 AND AFTER

Запчасти Case 821 (6-034) - TRANSMISSION ASSEMBLY, HOUSING, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN

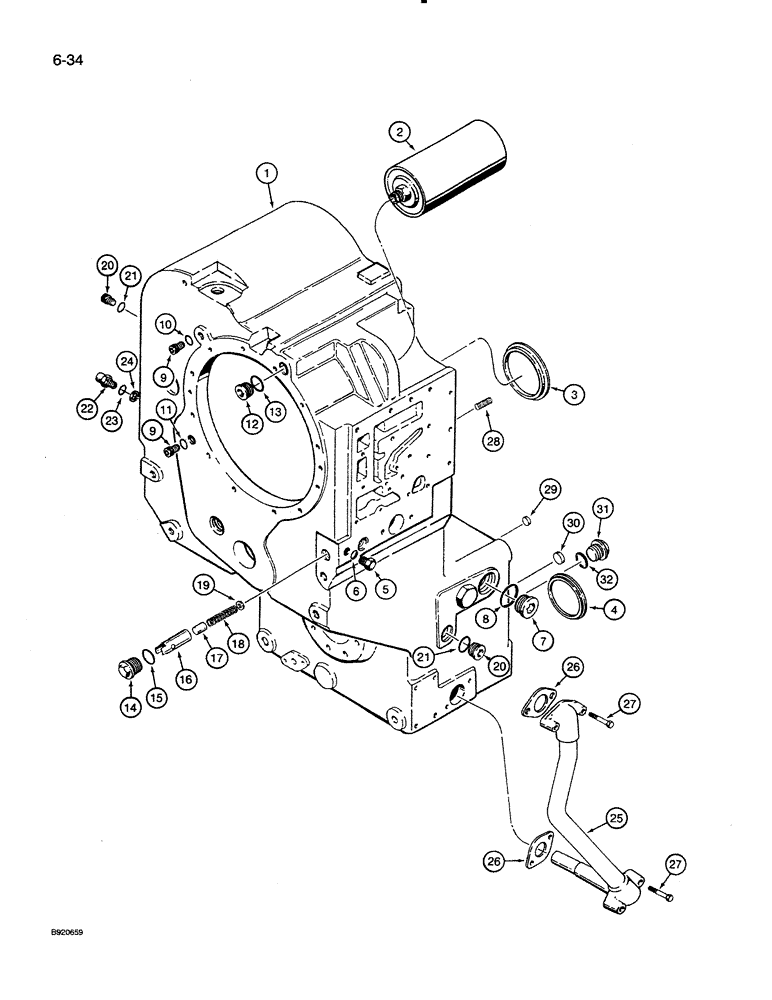

Схема запчастей Case 821 - (6-034) - TRANSMISSION ASSEMBLY, HOUSING, P.I.N. JAK0024165 AND AFTER (06) - POWER TRAIN
4
1
7
21
27
26
26
6
21
20
9
31
8
16
17
27
24
14
20
2
10
12
30
19
9
28
22
32
18
5
13
11
3
15
29
23
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

L129917

TRANSMISSION

ASSEMBLY - includes Refs. 1 and 2 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006, and all Refs. on Figures 6-034 - 6-062, Includes: Ref. 1 - 32

1шт.

1

106839A1

HOUSING

- transmission

1шт.

2

S301612

FILTER

- transmission oil

1шт.

3

E135201

SEAL

- expansion, 106 mm

1шт.

4

E135169

PLUG

- expansion, 80 mm

2шт.

5

E135079

PLUG

- hex, 14 mm - 1.5

1шт.

6

1968430C1

O-RING

- plug

1шт.

7

905476R1

PLUG

- hex socket, 36 mm - 1.5 PT

1шт.

8

81284C1

O-RING,2.2mm Thk x 33mm ID

- 33 mm ID x 2 mm wide

1шт.

9

E135075

PLUG

- hex socket, 14 mm - 1.5

2шт.

10

1968430C1

O-RING

- plug

1шт.

11

933610R1

SEALING RING,M14 x 18 x 1.8

O-RING - plug

1шт.

12

A52148

PLUG

- hex socket, 30 mm - 1.5

1шт.

13

A52368

SEAL

O-RING - plug

1шт.

14

106949A1

PLUG

- hex, 30 mm - 1.5

1шт.

15

A52368

SEAL

O-RING - plug

1шт.

16

106951A1

SLEEVE

- valve, converter pressure

1шт.

17

106953A1

PISTON

- converter pressure valve

1шт.

18

106954A1

COMPRESSION SPRING

SPRING - converter pressure valve

1шт.

19

106955A1

WASHER

- spring stop, 10 x 20 x 2.5 mm

1шт.

20

934651R1

PLUG,Hex Soc, M18 x 1.5

2шт.

21

S300495

O-RING,2mm Thk x 15mm ID

- plug

2шт.

22

S300494

SENDER UNIT

SENSOR - speed

1шт.

23

106970A1

SEALING RING

- sender

1шт.

24

S300506

SHIM,1.8mm Thk

Sender 1.8mm Thk

1шт.

24

S300505

BLOCK

SHIM - sender, 1.6 mm thick

1шт.

24

S300497

SHIM,1.5mm Thk

Sender 1.5mm Thk

1шт.

24

S300498

SHIM,1.4mm Thk

Sender 1.4mm Thk

1шт.

24

S300499

SHIM,1.2mm Thk

Sender 1.2mm Thk

1шт.

24

S300500

SHIM,1mm Thk

Sender 1mm Thk

1шт.

24

S300501

SHIM,2mm Thk

Sender 2mm Thk

1шт.

24

S300502

SHIM,0.5mm Thk

Sender 0.5mm Thk

1шт.

24

S300503

SHIM,0.3mm Thk

Sender 0.3mm Thk

1шт.

24

S300504

SHIM,0.2mm Thk

Sender 0.2mm Thk

1шт.

25

S301958

TUBE

- suction

1шт.

26

S301959

GASKET

GASKET - suction tube

2шт.

27

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

4шт.

28

106942A1

SCREW

- set, 16 - 2 x 30 mm

2шт.

29

E135010

PLUG

- 22 mm, expansion

1шт.

30

E135011

PLUG

- 30 mm, expansion

1шт.

31

E135081

PLUG

- hex, 26 mm x 1.5

1шт.

32

3133948R1

O-RING,2mm Thk x 23mm ID

- plug

1шт.
