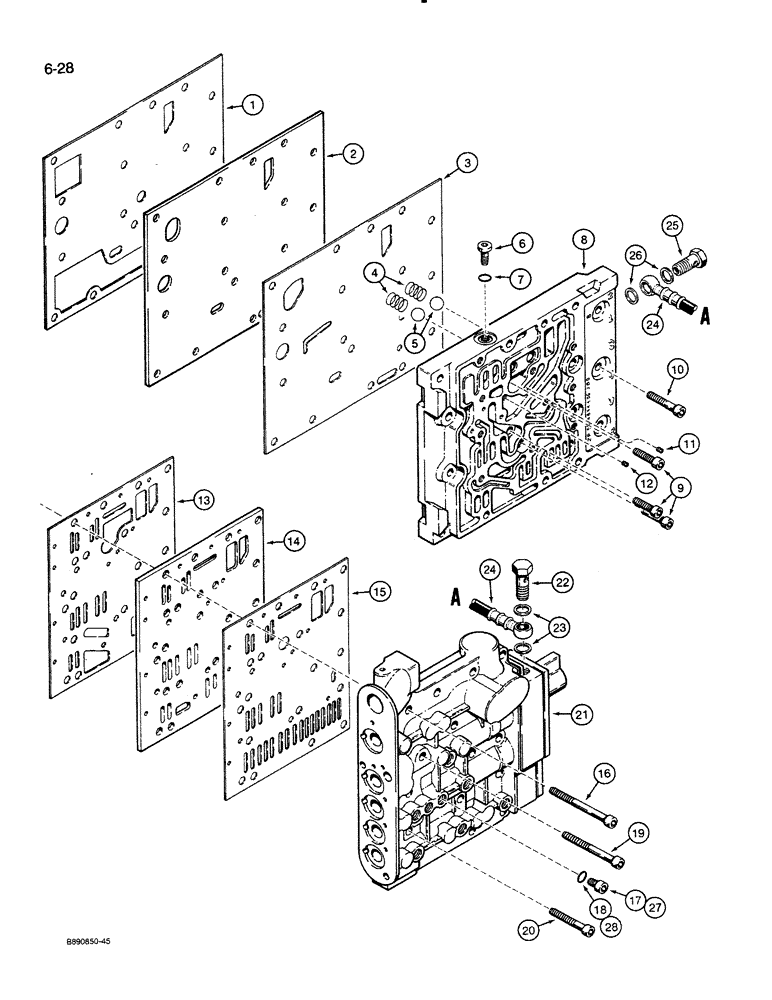

Запчасти Case 821 (6-028) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS, PRIOR TO P.I.N. JAK0024165 (06) - POWER TRAIN

L124591

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 - 4 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Figures 6-002 - 6-032 and 7-002, Includes: Ref. 1 - 28

1шт.

LR124591

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

LC124591

CORE-TRANSMISSION

Return Number

1шт.

1

S300482

GASKET

GASKET - plate, at transmission housing

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

2

S300483

LARGE PLATE

PLATE, LARGE PLATE - valve, transmission housing to channel plate

1шт.

3

S300484

GASKET

GASKET - valve plate to channel plate

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

4

E135132

SPRING

SPRING - ball check

1шт.

5

E135050

BALL

BALL - check, 16 mm OD

1шт.

6

A52230

PLUG

PLUG - hex, 10 mm - 1

1шт.

7

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

8

S300485

PLATE

PLATE - hydraulic, Serial Range: channel,-valve

1шт.

9

864-8030

HEX SOC SCREW,M8 x 30mm, Cl 8.8

SCREW, Hex Soc Hd, M8 x 30, 8.8

3шт.

10

864-8040

HEX SOC SCREW,M8 x 40mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 40 mm

9шт.

11

N14709

SET SCREW,M5 x 6mm

SCREW - set, hex socket, 5 mm x 6 mm

1шт.

12

E135207

RESTRICTOR

PLUG - orifice, hex socket headless

1шт.

13

S300487

GASKET

GASKET - at channel, Serial Range: plate-valve

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

14

S300488

LARGE PLATE

PLATE, LARGE PLATE - valve, channel plate to control valve

1шт.

15

S300489

GASKET

GASKET - at control valve to channel plate

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

16

864-8080

HEX SOC SCREW,M8 x 80mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 80 mm

6шт.

17

A52230

PLUG

PLUG - hex,10 mm - 1

1шт.

18

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

19

864-8070

HEX SOC SCREW,M8 x 70mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 70 mm

1шт.

20

864-8050

HEX SOC SCREW,M8 x 50mm, Cl 8.8

BOLT - hex socket, 8 mm - 1.25 x 50 mm

9шт.

21

S300492

VALVE

VALVE ASSEMBLY - transmission control, see Figures 6-30 and 6-32 for additional components, Includes: Ref. 22 - 28

1шт.

22

E135090

BOLT

BOLT - hex, hollow, control valve to plate hose, at valve

1шт.

23

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

SEALING WASHER, , Connector M12 x 15.5 x 1.5

2шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

24

S300574

HOSE

HOSE - control, Serial Range: valve-plate

1шт.

25

E135088

BANJO BOLT

BOLT - hex, hollow, control valve to plate hose, at plate

1шт.

26

A52231

SEALING RING

RING - seal, plug

2шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

27

A52230

PLUG

PLUG - hex, 10 mm - 1

6шт.

28

S300491

O-RING,8mm ID x 1.5mm Width

O-RING - plug

6шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

S300575

SEAL KIT

KIT - seal and gasket Figures 6-002 - 6-032 and 7-002 , Includes Refs. 1, 3, 7, 13, 15, 18, 23, 26 and 28

1шт.
