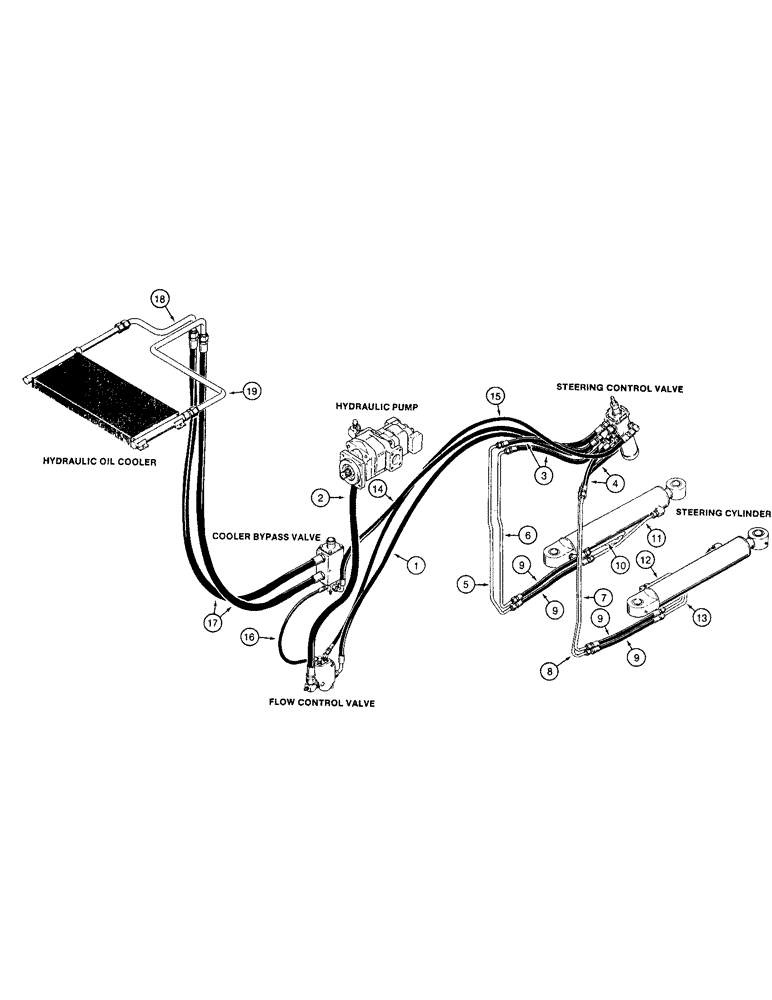

Запчасти Case 821 (1-012) - PICTORIAL INDEX, STEERING AND COOLING HYDRAULIC CIRCUIT (00) - PICTORIAL INDEX

1

Steering supply hose, steering control valve to flow control valve, Figure 5-008

1шт.

2

Steering supply hose, flow control valve to steering and equipment pump, Figure 5-008

1шт.

3

Hose, from tee at right-hand upper and lower ports on control valve to left-hand steering tubes, Figue 5-010

1шт.

4

Hose, from tee at right-hand upper and lower ports on control valve right-hand steering tubes, Figure 5-010

1шт.

5

Left-hand steering tube, from hose at tee at right-hand upper port on control valve to hose to rod end of left-hand cylinder, Figure 5-010

1шт.

6

Left-hand steering tube, from hose at tee at right-hand lower port on control valve to hose to closed end of left-hand cylinder, Figure 5=010

1шт.

7

Right-hand steering tube, from hose at tee at right-hand upper port on control valve to hose to closed end of right-hand cylinder, Figure 5-010

1шт.

8

Right-hand steering tube, from hose at tee at right-hand lower port on control valve to hose to rod end of right-hand cylinder, Figure 5-010

1шт.

9

Hose, from right and left-hand steering tubes to tubes at steering cylinder, Figure 5-010

1шт.

10

Steering tube, left-hand, from upper hose to closed end of cylinder, Figure 5-010

1шт.

11

Steering tube, left-hand, from lower hose to rod end of cylinder, Figure 5-010

1шт.

12

Steering tube, right-hand, from upper hose to closed end of cylinder, Figure 5-010

1шт.

13

Steering tube, right-hand, from lower hose to rod end of cylinder, Figure 5-010

1шт.

14

Return hose from upper left-hand port on steering control valve to right-hand port of manifold at cooler bypass valve, Figure 5-012

1шт.

15

Pilot pressure hose, from elbow at port on right-hand side of steering control valve to elbow at upper front port of flow control valve, Figure 5-012

1шт.

16

Return hose, from elbow at upper rear port on flow control valve to rear port of manifold at cooler bypass valve, Figure 5-012

1шт.

17

Hose, from rear ports of cooler bypass valve to tubes at hydraulic oil cooler, Figure 5-012

1шт.

18

Tube, left-hand, from hose to nipple at left-hand port of hydraulic oil cooler, Figure 5-012

1шт.

19

Tube, right-hand, from hose to adapter at right-hand port of hydraulic oil cooler, Figure 5-012

1шт.
