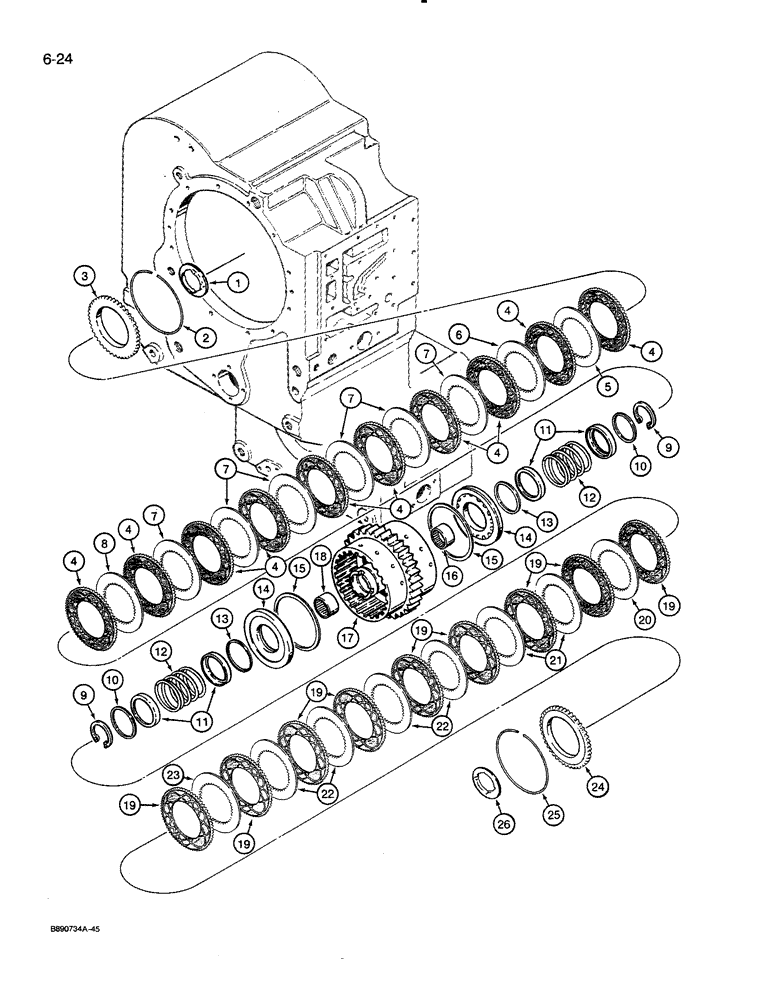

Запчасти Case 821 (6-024) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK, PRIOR TO P.I.N. JAK0024165 (06) - POWER TRAIN

L124591

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 - 4 on Figure 6-002, Refs. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Refs. on Figures 6-008 - 6-032 and 7-002, Includes; Ref. 1 - 26

1шт.

LR124591

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

LC124591

CORE-TRANSMISSION

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PACK - clutch, third and fourth clutches, Includes: Ref. 1 - 26

1шт.

1

237301A1

PLATE, SPACER

PLATE,SPACER WASHER - thrust (Replaces E135218)

1шт.

2

E135124

RING, SNAP

RING SNAP RING - retaining, internal

1шт.

3

E135222

NOTCHED DISK

DISC - clutch, steel, outer teeth

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, outer teeth

10шт.

5

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth, if used

1шт.

5

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth, if used

1шт.

5

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth, if used

1шт.

6

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth

1шт.

7

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth

6шт.

8

E135225

NOTCHED DISK

DISC - 2.0 mm thick, steel, inner teeth

1шт.

9

E135019

CIRCLIP

RING - snap, external

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

RING - guide

2шт.

11

E135220

GUIDE RING

GUIDE - spring

4шт.

12

E135131

SPRING

SPRING - clutch

2шт.

13

E135141

SEALING RING

SEALRING RING - seal, piston ID

2шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

14

E135217

PISTON

PISTON - clutch

2шт.

15

E135142

SEALING RING

SEALRING RING - seal, piston OD

2шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

16

E135044

BEARING, NEEDLE

BEARING - needle, 40 mm ID x 47 mm 0D x 20 mm

1шт.

17

E135232

GEAR

HOUSING - third and fourth clutches

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

BEARING - needle, 35 mm ID x 42 mm OD x 20 mm

1шт.

19

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

DISC - clutch, fibre, outer teeth

9шт.

20

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth

1шт.

21

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth

2шт.

22

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth

4шт.

23

E135224

NOTCHED DISK

DISC - 1.5 mm thick, inner teeth, if used

1шт.

23

E135226

NOTCHED DISK

DISC - 2.0 mm thick, inner teeth, if used

1шт.

23

E135225

NOTCHED DISK

DISC - 2.5 mm thick, steel, inner teeth, if used

1шт.

24

E135222

NOTCHED DISK

DISC - clutch, steel, outer teeth

1шт.

25

E135124

RING, SNAP

RING SNAP RING - retaining, internal

1шт.

26

237301A1

PLATE, SPACER

PLATE,SPACER WASHER - thrust (Replaces E135218)

1шт.

S300575

SEAL KIT

KIT - seal and gasket Figures 6-002 - 6-032 and 7-002, Includes Refs. 13 and 15

1шт.
