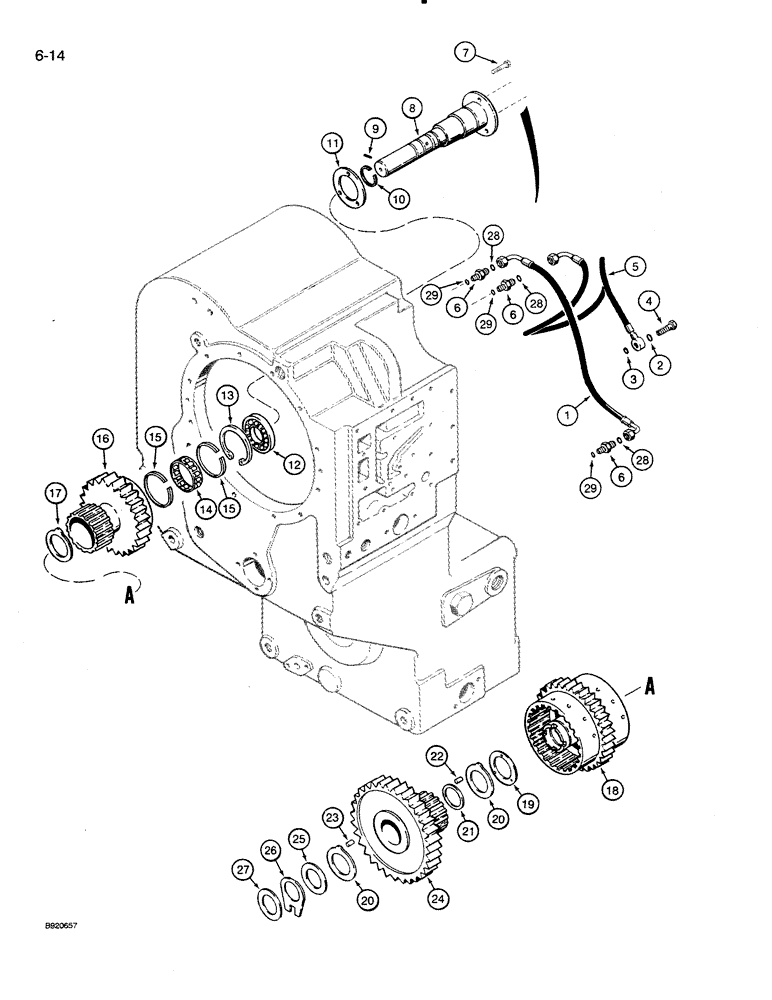

Запчасти Case 821 (6-014) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES, PRIOR TO P.I.N. JAK0024165 (06) - POWER TRAIN

L124591

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Ref. 1 - 4 on Figure 6-002, Ref. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Ref. on Figures 6-008 - 6-032 and 7-002, Includes: Ref. 1 - 29

1шт.

LR124591

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

LC124591

CORE-TRANSMISSION

Return Number

1шт.

1

S300583

HOSE

HOSE - 516 mm long, forward clutch

1шт.

2

S301616

GASKET,2.5mm Thk x 18mm ID

O-RING - 18 x 2.5 mm

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

3

S301617

O-RING,2mm Thk x 13mm ID

O-RING - 13 x 2 mm

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

4

S301962

BANJO BOLT

BOLT - hex, hollow, low clutch hose

1шт.

5

S301960

HOSE

HOSE - 750 mm long, low clutch

1шт.

6

S300585

FITTING

ADAPTER - straight, hose

3шт.

7

30002R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

BOLT - hex, 8 - 1.25 x 20 mm

3шт.

S300464

AXLE

AXLE ASSEMBLY - forward and low clutches, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

AXLE - forward and low clutches

1шт.

9

E135023

DOWEL

PIN - roll, 2.5 mm OD x 10 mm

5шт.

10

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

RING - piston, axle shaft

3шт.

11

E135223

GASKET

GASKET - axle

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

12

L33515

BALL BEARING

BEARING - ball, 45 mm ID x 75 mm OD x 16 mm

1шт.

13

K24302

RING, SNAP

RING SNAP RING - snap, internal

1шт.

14

E135148

ROLLER CAGE BEARING,45mm ID x 75mm OD x 28mm W

BEARING - roller

1шт.

15

E135002

PISTON RING,69.6mm ID x 75.8mm OD x 3mm Thk

RING - retaining, internal, bearing

2шт.

16

E135270

GEAR

GEAR - low

1шт.

17

E135117

WASHER, THRUST

WASHER - thrust, tabbed

1шт.

18

NSS

NOT SOLD SEPARAT

PACK - clutch, low and forward, see Figure 6-016 for components

1шт.

19

E135123

WASHER, THRUST

WASHER - thrust, 35 mm ID x 65 mm OD x 1.5 mm

1шт.

20

E135267

WASHER, THRUST

WASHER - thrust, tabbed

2шт.

21

E135268

WASHER

WASHER - 48 mm ID x 54.7 mm OD x 0.8 mm

1шт.

S300462

ROLLER

KIT - needle bearing, Includes: Ref. 22 and 23

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - needle, 10 mm OD x 17 mm long

14шт.

23

NSS

NOT SOLD SEPARAT

BEARING - needle, 10 mm OD x 20 mm long

14шт.

24

S300461

GEAR

GEAR - forward

1шт.

25

E135120

WASHER

WASHER - thrust, 35 mm ID x 70 mm OD x 1.5 mm

1шт.

26

E135203

WASHER, THRUST

WASHER - thrust, notched

1шт.

27

E135097

SHIM,35.1mm ID x 70mm OD x 0.2mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 0.2mm Thk

1шт.

27

E135098

SHIM,0.4mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 0.4mm Thk

1шт.

27

E135099

SHIM,0.6mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 0.6mm Thk

1шт.

27

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 0.8mm Thk

1шт.

27

E135101

SHIM,1.0mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 1.0mm Thk

1шт.

27

E135102

SHIM,1.2mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 1.2mm Thk

1шт.

27

E135103

SHIM,1.4mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 1.4mm Thk

1шт.

27

E135104

SHIM,1.6mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 1.6mm Thk

1шт.

27

E135105

SHIM,1.8mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 1.8mm Thk

1шт.

27

E135106

SHIM,2.0mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 2.0mm Thk

1шт.

27

E135107

SHIM,2.2mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 2.2mm Thk

1шт.

27

E135108

SHIM,2.4mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 2.4mm Thk

1шт.

27

E135109

SHIM,2.6mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 2.6mm Thk

1шт.

27

E135110

SHIM,2.8mm Thk

SHIM, (35.1 mm ID x 70 mm OD) 2.8mm Thk

1шт.

28

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

O-RING - 13.3 x 2.4 mm

3шт.

SHOULD READ S300587 O-RING - ADAPTER, HOSE SIDE.

1шт.

29

S300587

O-RING,12.4mm ID x 1.78mm Width

O-RING - 12.4 x 1.8 mm

3шт.

SHOULD READ S300586 0-RING - ADAPTER, TRANS. SIDE.

1шт.

S300575

SEAL KIT

KIT - seal and gasket Figures 6-002 - 6-032 and 7-002, Includes Refs. 2, 3 and 11

1шт.
