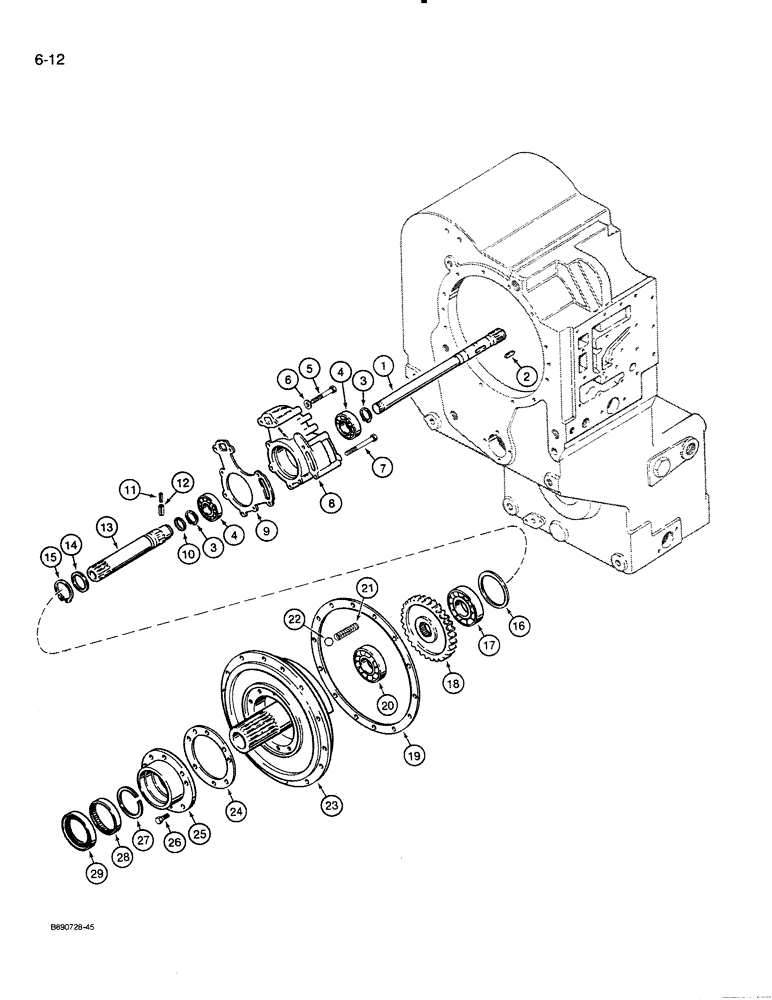

Запчасти Case 821 (6-012) - TRANSMISSION ASSEMBLY, INPUT GEAR, PUMP, AND OUTPUT SHAFT, PRIOR TO P.I.N. JAK0024165 (06) - POWER TRAIN

L124591

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Ref. 1 - 4 on Figure 6-002, Ref. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006 and all Ref. on Figures 6-008 - 6-032 and Figure 7-002, Includes; Ref. 21 - 29

1шт.

LR124591

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

LC124591

CORE-TRANSMISSION

Return Number

1шт.

1

292167A1

SHAFT

SHAFT - pump output (Replaces E135280)

1шт.

2

E135029

KEYWAY

KEY - shaft

1шт.

3

933086R1

SNAP RING,M30, Ext

SNAP RING, M30, Ext

2шт.

4

S300449

BEARING, BALL,30 mm ID x 62 mm OD x 16 mm

BEARING - ball, pump

2шт.

5

827-8085

BOLT,Hex, M8 x 1.25 x 85mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 85 mm, class 10.9

4шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

WASHER - flat, 9 x 17 x 2 mm

4шт.

7

827-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 10.9

BOLT - hex, 8 - 1.25 x 110 mm, class 10.9

4шт.

8

E136100

PUMP

PUMP - transmission (Replaces N14716)

1шт.

9

E135248

GASKET

GASKET - pump

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

10

E135036

O-RING,Square, 2mm Thk x 30mm ID

SEAL - square section, x 2 mm 30 mm ID

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

11

E135026

PIN,1.5mm OD x 5mm L, Slotted

PIN - roll, 1.5 mm OD x 5 mm

1шт.

12

E135028

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll, 2.5 mm OD x 5 mm

1шт.

13

E135250

SHAFT

SHAFT - input, pump

1шт.

14

E135144

RING, SNAP

RING SNAP RING - piston, 41.8 mm ID x 45 mm OD x 3 mm

1шт.

15

A48760

SNAP RING,M40, Ext

RING - snap, external, 40 mm x 1.75

1шт.

16

E135179

SHIM,70mm ID x 89mm OD x 0.3mm Thk

SHIM, , Bearing 0.3mm Thk

1шт.

16

E135180

SHIM,0.5mm Thk

SHIM, , Bearing 0.5mm Thk

1шт.

16

E135178

SHIM,70mm ID x 89mm OD x 0.6mm Thk

SHIM, , Bearing 0.6mm Thk

1шт.

16

E135177

SHIM,0.7mm Thk

SHIM, , Bearing 0.7mm Thk

1шт.

16

E135176

SHIM,70mm ID x 89mm OD x 0.8mm Thk

SHIM, , Bearing 0.8mm Thk

1шт.

16

E135175

SHIM,70mm ID x 89mm OD x 0.9mm Thk

SHIM, , Bearing 0.9mm Thk

1шт.

16

E135174

SHIM,70mm ID x 89mm OD x 1mm Thk

SHIM, , Bearing 1.0mm Thk

1шт.

16

E135173

SHIM,1.1mm Thk

SHIM, , Bearing 1.1mm Thk

1шт.

16

E135172

SHIM,70mm ID x 89mm OD x 1.2mm Thk

SHIM, , Bearing 1.2mm Thk

1шт.

16

S300446

SHIM,1.3mm Thk

SHIM, , Bearing 1.3mm Thk

1шт.

16

E135170

SHIM,70mm ID x 89mm OD x 1.4mm Thk

SHIM, , Bearing 1.4mm Thk

1шт.

17

S300445

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

BEARING - ball

1шт.

18

E135251

GEAR

GEAR - input

1шт.

19

E135253

GASKET

GASKET - oil feed flange

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

20

N14703

ROLLER BEARING,45 mm ID x 85 mm OD x 19 mm

BEARING - roller

1шт.

21

E135136

SPRING

SPRING - ball check

1шт.

22

E135051

BALL

BALL - check, 20 mm

1шт.

23

E135252

FLANGE

FLANGE - oil feed

1шт.

24

E135244

GASKET

GASKET - hub

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

25

E135202

HUB

HUB - feed flange

1шт.

26

826-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

BOLT - hex, 8 - 1.25 x 30 mm, class 10.9

8шт.

27

E135143

RING,Locking, 65.4mm ID x 70mm OD x 3.5mm Thk

RING - piston

1шт.

28

E135146

NEEDLE ROLLER,Needle, 75mm ID x 83mm OD x 16mm W

SLEEVE - needle

1шт.

29

S300448

SEAL

SEAL - oil

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

S300575

SEAL KIT

KIT - seal and gasket Figures 6-002 - 6-032 and 7-002, Includes Refs. 9, 10, 19, 24 and 29

1шт.
