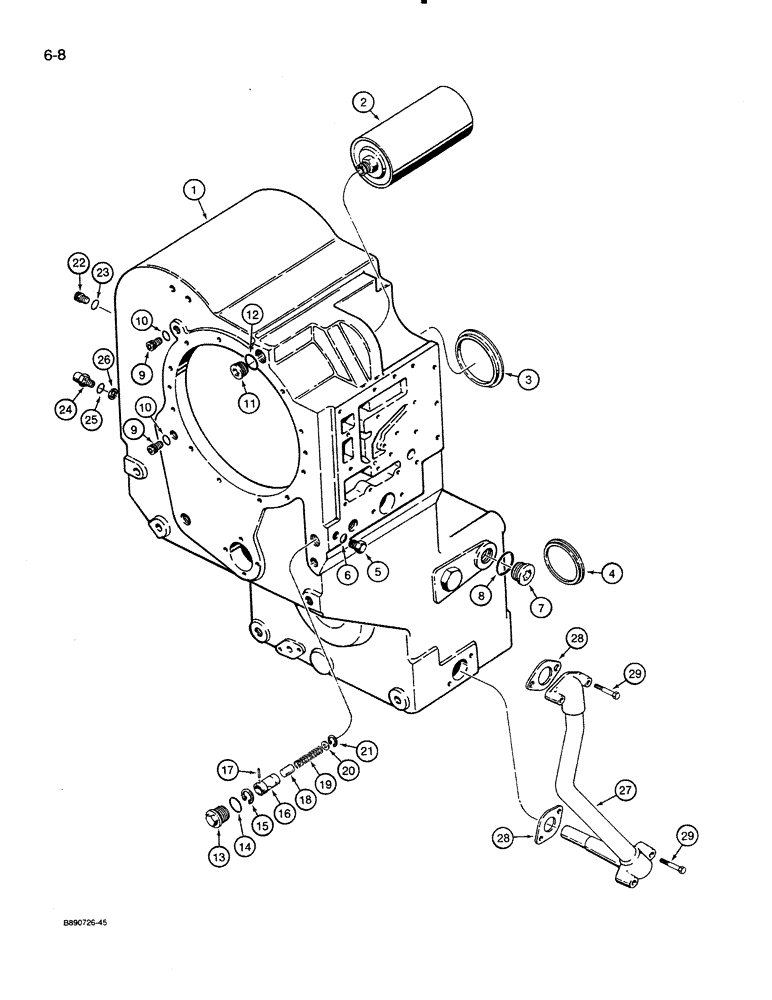

Запчасти Case 821 (6-008) - TRANSMISSION ASSEMBLY, HOUSING, PRIOR TO P.I.N. JAK0024165 (06) - POWER TRAIN

L124591

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 - 4 on Figure 6-002, Ref. 12 - 16 on Figure 6-004, Ref. 4 on Figure 6-006, and all Ref. on Figure 6-008 - 6-032 and Figure 7-002, Includes: Ref. 1 - 29

1шт.

LR124591

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

LC124591

CORE-TRANSMISSION

Return Number

1шт.

1

E135249

HOUSING

HOUSING - transmission

1шт.

2

S301612

FILTER

FILTER - transmission oil, was S300650

1шт.

3

E135201

SEAL

PLUG - expansion, 106 mm

1шт.

4

E135169

PLUG

PLUG - expansion, 80 mm

2шт.

5

E135079

PLUG

PLUG - hex, 14 mm - 1.5

1шт.

6

1968430C1

O-RING

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

7

E135077

PLUG,Hex, M36 x 1.5

PLUG - hex socket, 36 mm - 1.5 PT

1шт.

8

E135033

O-RING,2.2mm Thk x 33mm ID

O-RING - x 2 mm wide 33 mm ID

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

9

E135075

PLUG

PLUG - hex socket, 14 mm - 1.5

2шт.

10

1968430C1

O-RING

O-RING - plug

2шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

11

A48885

PLUG

PLUG - hex socket, 30 mm - 1.5

1шт.

12

S300450

O-RING,23.3mm ID x 2.4mm Width

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

13

E135082

PLUG

PLUG - hex, 30 mm - 1.5

1шт.

14

A52368

SEAL

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

15

A37550

SNAP RING,1.00", Int, #100

RING - snap, internal, 28 mm x 1.2

1шт.

16

E135200

SPACER

SLEEVE - valve, converter pressure

1шт.

17

E135126

DOWEL,4mm OD x 27.5mm L

PIN - dowel, 4 x 27.5 mm

1шт.

18

E135166

VALVE POPPET

PISTON - converter pressure valve

1шт.

19

E135134

SPRING

SPRING - converter pressure valve

1шт.

20

E135092

WASHER

WASHER - spring stop, 10 x 20 x 2.5 mm

1шт.

21

E135020

CIRCLIP

RING - snap, internal, 20 mm x 1.5

1шт.

22

E135076

PLUG

PLUG - hex socket, 18 mm - 1.5

1шт.

23

S300495

O-RING,2mm Thk x 15mm ID

O-RING - plug

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

24

S300494

SENDER UNIT

SENSOR - speed, not used with L124591 transmission

1шт.

25

S300496

SEALING RING

SEAL - sender

1шт.

Part of seal and gasket kit P/N S300575 and Figures 6-2 - 6-32 and 7-2

1шт.

26

S300497

SHIM,1.5mm Thk

SHIM, , Sender 1.5mm Thk

1шт.

26

S300498

SHIM,1.4mm Thk

SHIM, , Sender 1.4mm Thk

1шт.

26

S300499

SHIM,1.2mm Thk

SHIM, , Sender 1.2mm Thk

1шт.

26

S300500

SHIM,1mm Thk

SHIM, , Sender 1mm Thk

1шт.

26

S300501

SHIM,2mm Thk

SHIM, , Sender 2mm Thk

1шт.

26

S300502

SHIM,0.5mm Thk

SHIM, , Sender 0.5mm Thk

1шт.

26

S300503

SHIM,0.3mm Thk

SHIM, , Sender 0.3mm Thk

1шт.

26

S300504

SHIM,0.2mm Thk

SHIM, , Sender 0.2mm Thk

1шт.

27

E135235

HYD TUBE,480, 161 mm L

TUBE - suction

1шт.

28

E135282

GASKET

GASKET - suction tube

2шт.

29

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

BOLT, Hex, M8 x 50, 10.9

4шт.

S300575

SEAL KIT

KIT - seal and gasket on Figures 6-002 - 6-032 and 7-002, Includes Refs. 6, 8, 10, 12, 14, 23 and 25

1шт.
