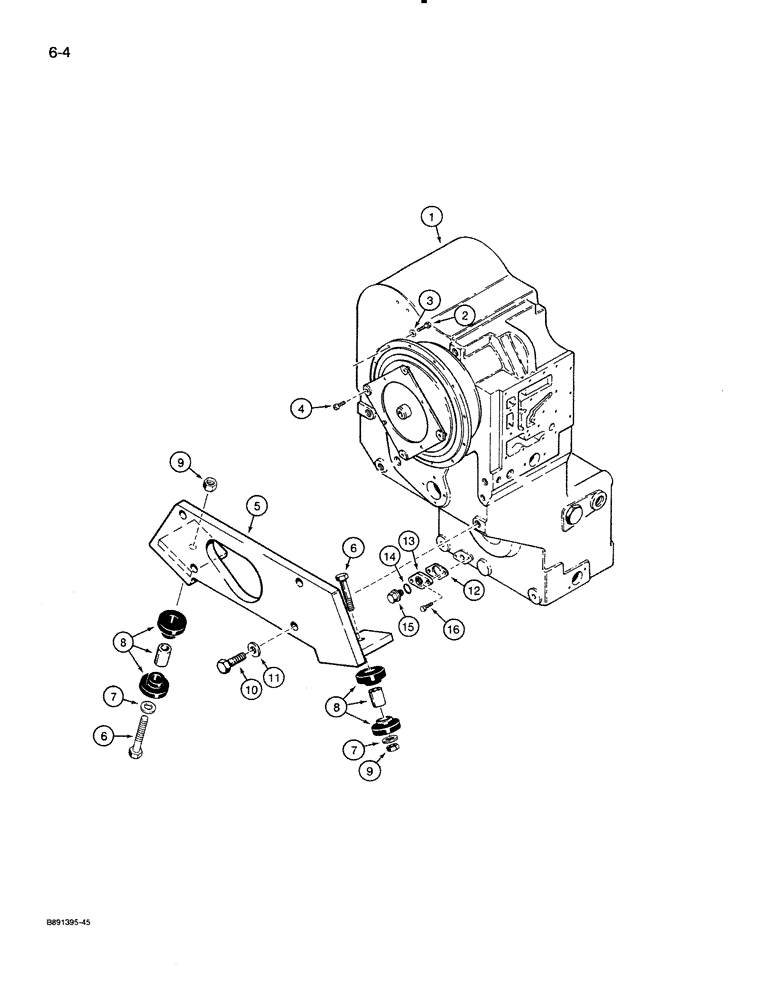

Запчасти Case 821 (6-004) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

L124591

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Refs. 1 - 4 on Figure 6-002, Refs. 12 - 16 on this Figure, Ref. 4 on Figure 6-006, and all Refs. on Figure 6-008 - 6-032 and 7-002, Serial Range: -JAK0024165

1шт.

1

LR124591

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

LC124591

CORE-TRANSMISSION

Return Number

1шт.

1

L129917

TRANSMISSION

TRANSMISSION ASSEMBLY - includes Ref. 1 and 2 on Figure 6-002, Ref. 12 - 16 on this Figure, Ref. 4 on Figure 6-7, and all Refs. on Figure 6-034 - 6-058, Start Serial: JAK0024165

1шт.

1

LR129917

REMAN-TRANSMISSION

, Start Serial: JAK0024165

1шт.

1

LC129917

CORE-TRANSMISSION

Return Number

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 40 mm

12шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

WASHER - flat, 13/32 x 13/16 x 3/32", hardened

12шт.

4

L125431

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 8.8

SCREW, hex socket, 10 mm - 1.5, special

4шт.

5

L127262

SUPPORT

BRACKET - transmission mounting

1шт.

6

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

BOLT - hex, 3/4 NC x 4-1/2 inch

2шт.

7

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

WASHER - flat, 25/32 x 1-3/8 x 1/8 inch, hardened

2шт.

8

L111929

SHOCK ABSORBER

MOUNT - transmission, three piece

2шт.

9

131-1400

LOCK NUT,Jam, 3/4"-16

NUT - hex, self-locking, 3/4 inch NC

2шт.

10

826-20055

BOLT,Hex, M20 x 2.5 x 55mm, Cl 10.9, Full Thd

BOLT - hex, 20 - 2.5 x 55 mm, class 10.9

4шт.

11

L79179

WASHER

WASHER - flat, 13/16 x 1-15/32 x 5/32, hardened

4шт.

12

S300507

GASKET

GASKET - cover plate, included with transmission

1шт.

See Figure 4-024 for the transmission speed selector control and Figure 7-004 for the parking brake cable mounting bracket for L124591 transmission. See Figure 4-026 for the transmission speed selector control for L129917 transmission.

1шт.

Part of seal and gasket, L124591 transmission kit P/N S300575 and Figures 6-2

1шт.

13

S300509

COVER

PLATE - cover, included with L124591 transmission

1шт.

13

S300508

COVER

PLATE - cover, included with L129917 transmission

1шт.

14

E135040

SEALING WASHER,M22 x 27 x 1.5

SEAL - cover plate, included with transmission

1шт.

See Figure 4-024 for the transmission speed selector control and Figure 7-004 for the parking brake cable mounting bracket for L124591 transmission. See Figure 4-026 for the transmission speed selector control for L129917 transmission.

1шт.

Part of seal and gasket, L124591 transmission kit P/N S300575 and Figures 6-2

1шт.

15

E135080

PLUG

PLUG - hex, cover plate, included with transmission

1шт.

16

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT - hex, 8 - 1.25 x 16 mm, included with transmission

2шт.

S300575

SEAL KIT

KIT - seal and gasket, L124591 transmission, Includes Refs. 12 and 14 on Figures 6-002

1шт.

See Figure 4-024 for the transmission speed selector control and Figure 7-004 for the parking brake cable mounting bracket for L124591 transmission. See Figure 4-026 for the transmission speed selector control for L129917 transmission.

1шт.
