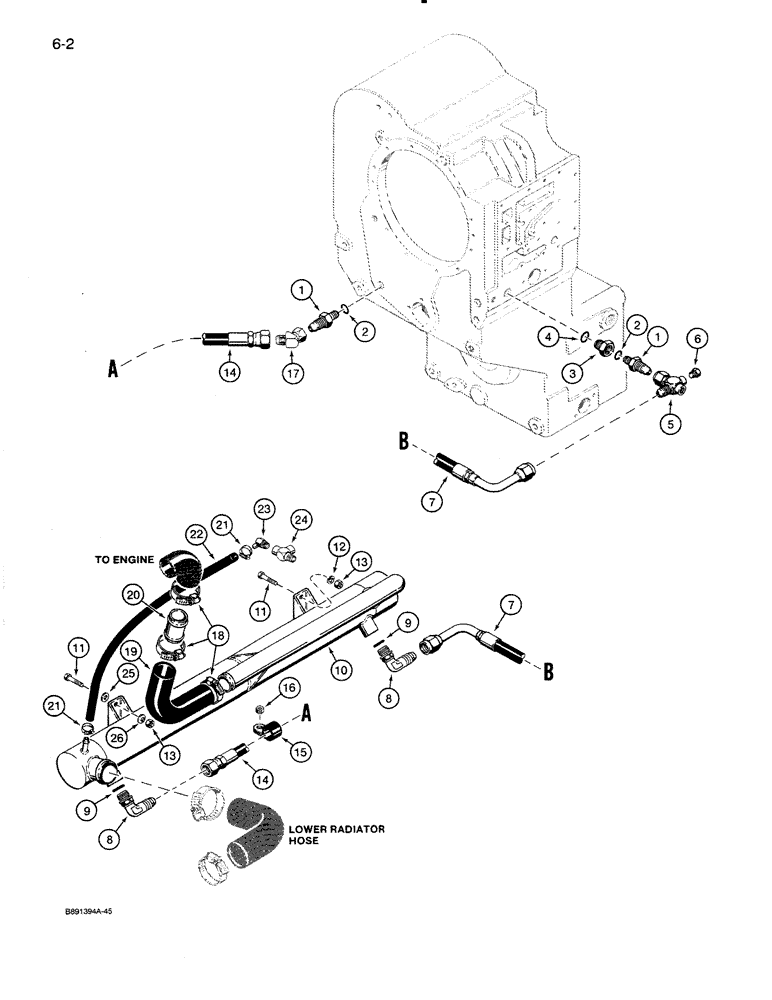

Запчасти Case 821 (6-002) - TRANSMISSION HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

S300453

FITTING

ADAPTER - hydraulic, included with L124591 transmission

2шт.

1

106867A1

ADAPTER

- hydraulic, included with L129917 transmission

2шт.

2

S300450

O-RING,23.3mm ID x 2.4mm Width

- adapter, included with L124591 and L129917 transmission

2шт.

Part of seal and gasket, L124591 transmission kit P/N S300575 and Figures 6-4 - 6-32 and 7-2

1шт.

3

S300452

RESTRICTOR

REDUCER - hydraulic, included with L124591 transmission

1шт.

4

81284C1

O-RING,2.2mm Thk x 33mm ID

- reducer, included with L124591 transmission

1шт.

Part of seal and gasket, L124591 transmission kit P/N S300575 and Figures 6-4 - 6-32 and 7-2

1шт.

5

L125441

FITTING

CROSS - hydraulic

1шт.

6

221-844

PLUG,Hex Soc, 1/2"-14

- square socket, 1/2 inch PT

1шт.

7

L128009

HOSE,25.4mm ID x 635mm L, SAE 100R1

- 610 mm long, to Out port of transmission oil cooler

1шт.

8

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj O-ring boss, Incl. Ref. 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

10

L125987

COOLER,Transnission

COOLER - transmission oil

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , If used 1/2"

4шт.

13

131-10

NUT,1/2"-13, GB

NUT, LOCK, , If used 1/2"-13, GB

4шт.

14

L128010

HOSE,25.4mm ID x 1180mm L, SAE 100R1

- 1180 mm long, to In port of transmission oil cooler

1шт.

15

S86530

CLAMP

- hose

1шт.

16

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1шт.

17

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree, 1-5/16-12 inch flare x swivel str thread

1шт.

18

214-259

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP - hose, No. 32, Type F

3шт.

19

L127974

RADIATOR HOSE,50.00 mm ID x 200.00 mm, SAE 20R4 Class C or D-1

- Formed, Transmission oil cooler to engine 50.00 mm ID x 200.00 mm, SAE 20R4 Class C or D-1

1шт.

20

L117015

TUBE,50.8 mm OD x 77 mm L

- coolant, from hose at transmission oil cooler to engine

1шт.

21

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, No. 24, Spring

2шт.

22

31-1067

HOSE,0.63" ID x 36.00"

- 5/8 (16 mm) ID x 36 inch (914 mm) long, to engine 0.63" ID x 36.00"

1шт.

23

217-144

45 ELBOW,45 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

ADAPTER - 45 degree, 5/8 stem end x 1/2 inch PT

1шт.

24

221-1693

TEE,Street, 1/2" NPT

- street, 1/2 inch PT, at engine

1шт.

25

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch, if used

2шт.

26

R52337

WASHER

SPRING - Belleville, at rear cooler mounting, if used

2шт.

S300575

SEAL KIT

KIT - seal and gasket, L124591 transmission, Includes Refs. 2 and 4 on this Figure and on Figures 6-004 - 6-032 and 7-002

1шт.
