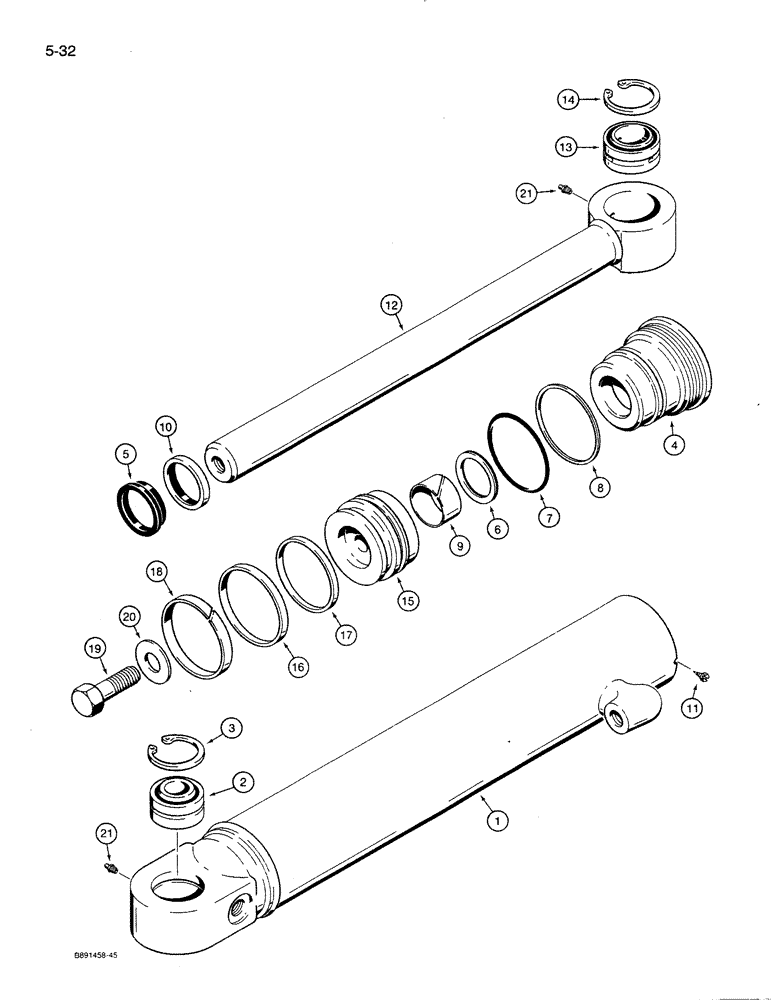

Запчасти Case 821 (5-032) - STEERING CYLINDER, P.I.N. JAK0024132 AND AFTER (05) - STEERING

1986978C1

CYLINDER

ASSEMBLY - 3-1/2 ID x 17-3/16 inch stroke, steering, Includes: Ref. 1 - 20

2шт.

1

G110661

JACK BODY,88.77 mm ID x 660.7 mm L

TUBE - cylinder, Includes: Ref. 2 and 3

1шт.

2

1343679C1

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 52.38mm W

- self-aligning

1шт.

3

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap, bushing

2шт.

G110607

CYLINDER END CAP

GLAND ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, wide

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

6

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

7

238-5235

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

8

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

9

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

10

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - rod, outer

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - hex, self tapping, No. 8 NC x 3/8 "

1шт.

12

1986979C1

PISTON ROD

ROD - piston, 1-3/4 inch (45 mm) diameter, Includes: Ref. 13 and 14

1шт.

13

G109152

SPHERICAL BEARING,34.92mm ID x 55.56mm OD x 30.15mm W

- self-aligning

1шт.

14

L12571

SNAP RING,#218, 2.321", Int, Spiral

RING - snap

2шт.

15

1986982C1

PISTON

- cylinder

1шт.

16

G100709

SEALING RING,90.195mm OD x 6.96mm Thk

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

- piston

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

Part of seal kit P/N G110621

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, extra short, 1/8 inch PT, not included with cylinder

2шт.

G110621

SEAL PACKAGE

KIT - seal, Includes Refs. 5, 6, 7, 8, 9, 10, 16, 17 and 18

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.
