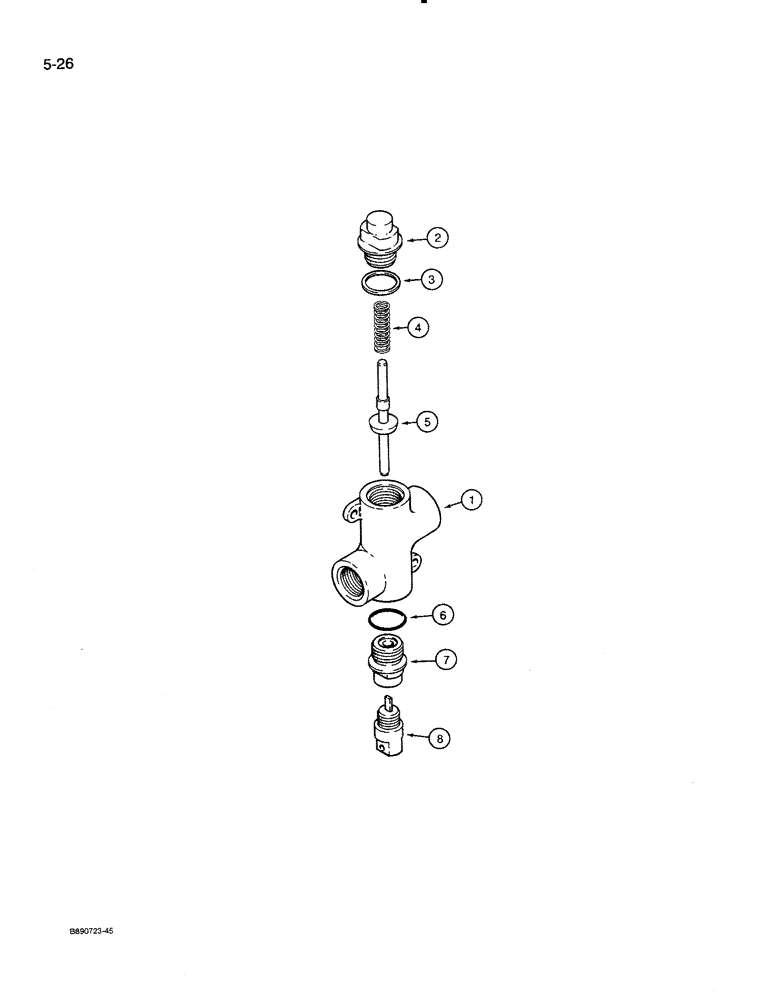

Запчасти Case 821 (5-026) - AUXILIARY STEERING CHECK VALVE (05) - STEERING

L126569

VALVE

ASSEMBLY - check, auxiliary steering, Includes: Ref. 1 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

2

S300698

PLUG

- guide

1шт.

3

S300699

GASKET

RING - backup

1шт.

Part of seal kit P/N S300700

1шт.

4

S300697

SPRING

- valve

1шт.

5

S300696

SPOOL

- valve

1шт.

6

716582R1

O-RING

- switch housing

1шт.

Part of seal kit P/N S300700

1шт.

7

S300782

FITTING

HOUSING - switch

1шт.

8

S300783

TERMINAL CONNECTOR

SWITCH - contact, auxiliary steering

1шт.

S300700

SEAL PACKAGE

KIT - seal, Includes Refs. 3 and 6

1шт.
