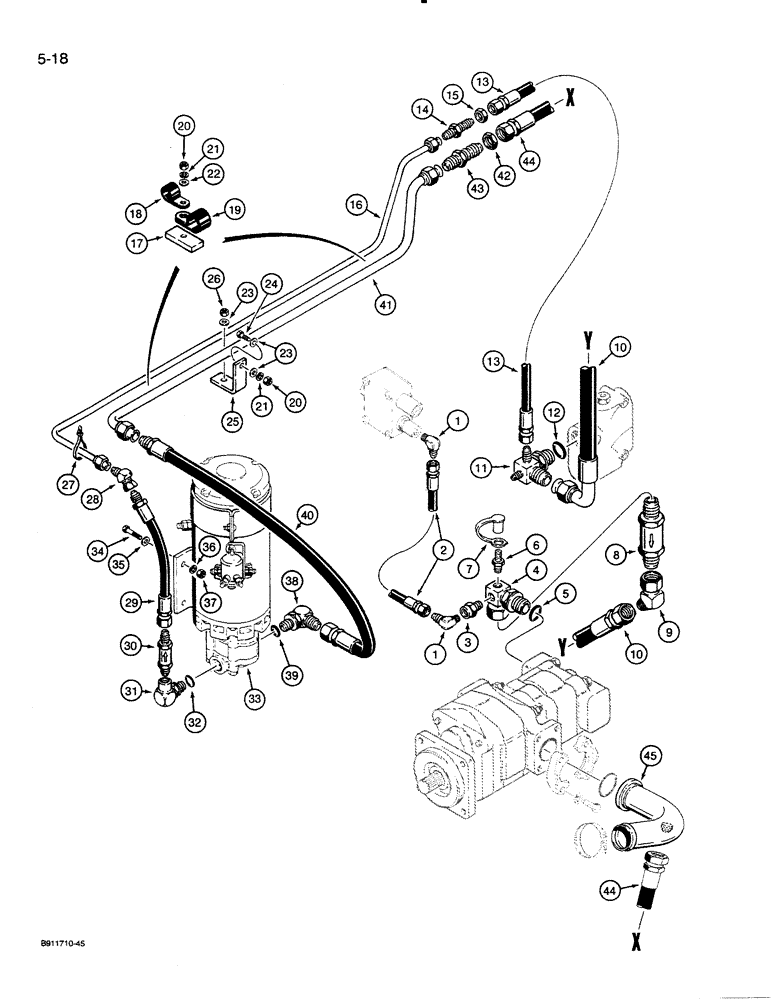

Запчасти Case 821 (5-018) - AUXILIARY STEERING HYDRAULIC CIRCUIT, P.I.N. JAK0024165 AND AFTER (05) - STEERING

1

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT, see Figure 4-054, Ref. 18, auxiliary steering steering pressure switch

2шт.

2

101501A1

HOSE ASSY.

HOSE - 1170 mm long, pressure, switch to hydraulic pump

1шт.

3

L129369

CONNECTOR, ELEC

SNUBBER - pressure reducing

1шт.

4

L129995

FITTING

MANIFOLD - special fitting, at hydraulic pump, Includes: Ref. 5

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

H434164

COUPLING

COUPLER - quick disconnect

1шт.

7

H434163

DUST CAP

CAP - coupler dust

1шт.

8

L59608

LOCK VALVE

VALVE - check

1шт.

9

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 deg, 1-5/16-12 inch flare x swivel str thread

1шт.

10

L129996

HOSE

- 520 mm long, pressure

1шт.

11

L129994

FITTING

MANIFOLD - special fitting, Includes: Ref. 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

13

W11468

HOSE

- 29 inch long

1шт.

14

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

1шт.

15

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

16

L129989

PIPE ASSY.

TUBE - pressure, to auxiliary steering pump

1шт.

17

L119350

SPACER

- brackets to rear frame

2шт.

18

S77322

CLAMP

- closed, 12.7 mm ID, pressure tube

2шт.

19

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- P, 3/4 inch diameter, suction tube

2шт.

20

425-106

NUT,3/8"-16, Cl 5

3шт.

21

492-11038

LOCK WASHER,3/8"

3шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

23

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

25

L129998

SUPPORT

BRACKET - tube mounting

1шт.

26

425-106

NUT,3/8"-16, Cl 5

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread

1шт.

29

L129993

HOSE ASSY.

HOSE - 410 mm long, pressure tube to auxiliary steering pump

1шт.

30

L70819

VALVE

- check

1шт.

31

218-5460

FITTING

ELBOW - 90 degree, 3/4-16 adj O-ring x 1/2 inch female PT, Includes: Ref. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

33

L116118

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary steering, parts list Figure 5-020

1шт.

34

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

35

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

36

492-11038

LOCK WASHER,3/8"

4шт.

37

425-106

NUT,3/8"-16, Cl 5

4шт.

38

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Includes: Ref. 39

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

L129992

HOSE ASSY.

HOSE - 710 mm long, suction, auxiliary steering pump to suction tube

1шт.

41

L129991

PIPE ASSY.

TUBE - suction, auxiliary steering pump to hydraulic pump inlet

1шт.

42

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, lock, bulkhead, 1-1/16 inch NF

1шт.

43

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

FIT STL BULKHD .75MJ .75MJ

1шт.

44

L129997

HOSE

- 1000 mm long, suction, to hydraulic pump inlet tube

1шт.

45

L125583

TUBE

- inlet, hydraulic pump, use on models with auxiliary steering

1шт.
