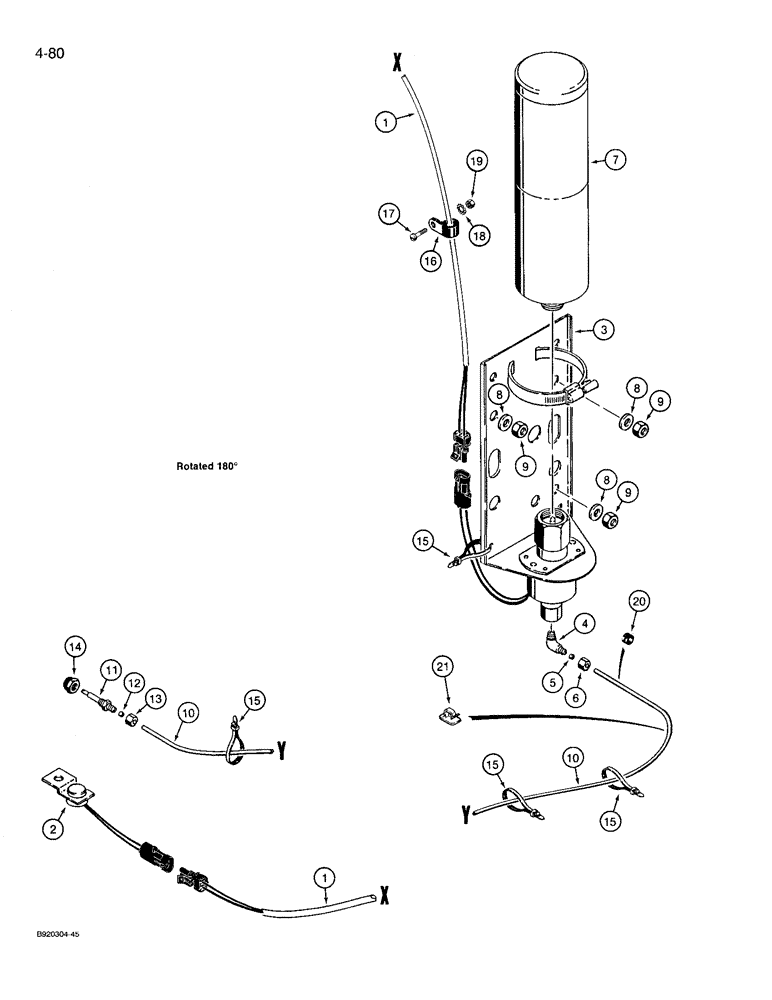

Запчасти Case 721 (4-80) - COLD WEATHER STARTING SYSTEM (04) - ELECTRICAL SYSTEMS

1

L125425

HARNESS

- rear, see Figures 4-48 - 4-52, and 4-66

1шт.

2

L126191

THERMOSTATIC SWITCH

THERMOCOUPLE - circuit breaking, includes lead wires, use existing engine hardware

1шт.

L126198

VALVE

ASSEMBLY - solenoid, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

VALVE - component parts not serviced separately

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Incl. Ref 4 - 6 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

4

NSS

NOT SOLD SEPARAT

BODY - elbow

1шт.

5

222-650

SLEEVE,1/8" Tube, Comp

1шт.

6

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

7

A171940

CYLINDER

- starting fluid

1шт.

8

S95569

WASHER

- flat, 9/16 x 1-3/8 x 9/64 inch, hardened

3шт.

9

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

3шт.

10

L126227

TUBE,0.125" OD x 84" L

- nylon, 1/8 (3) ID x 84 inch (2134 mm) long, cut from L60539, see below

1шт.

See Figure 9-112 for cold start decal.

1шт.

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - atomizer, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube 5/16"-24, 45º Fl, Comp

1шт.

14

217-40

REDUCER,1/4"-18 NPTF x 1/8"-27 Fem NPTF

- 1/4 x 1/8 inch

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

16

A62209

CLAMP,5/16", Insul, 1/4" Bolt

- retaining, if used

1шт.

17

182-561

SCREW,Slotted Pan Hd, #10-24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch, if used

1шт.

18

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.

19

129-17

NUT,Hex, #10 - 24

NUT - hex, No. 10 NC, if used

1шт.

20

L77834

GROMMET

- rubber, if used

1шт.

21

L100659

CLIP

- tube

1шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, 1/8 inch (3 mm) ID x 168 inch (4267 mm) long

1шт.

See Figure 9-112 for cold start decal.

1шт.
