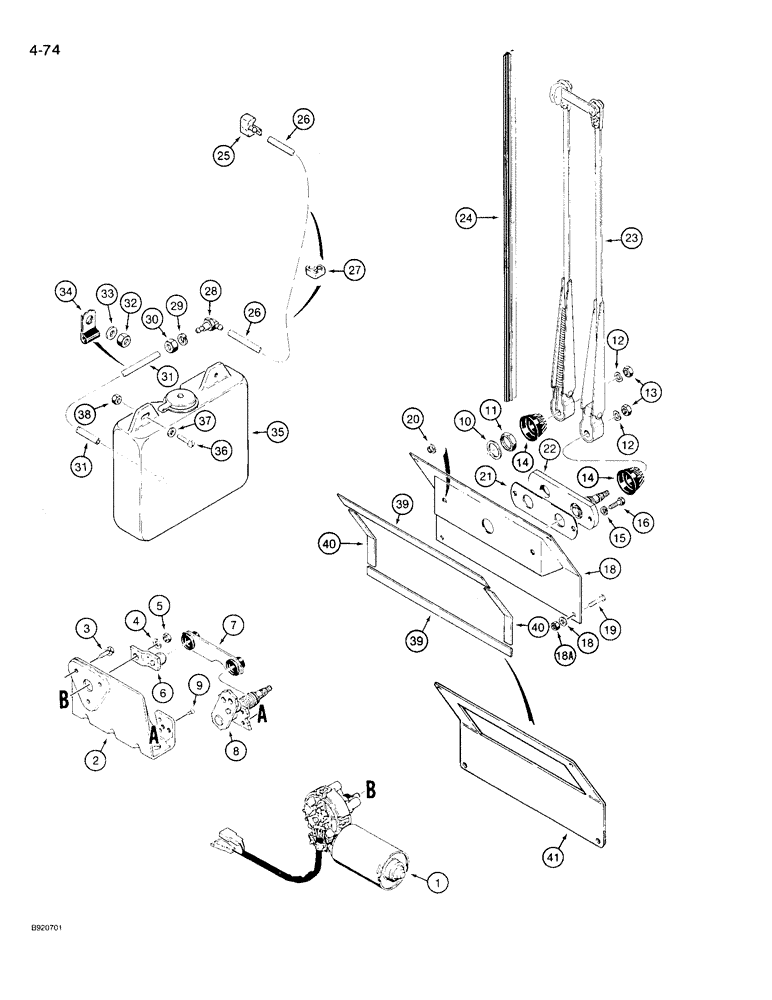

Запчасти Case 721 (4-74) - CAB FRONT WIPER (04) - ELECTRICAL SYSTEMS

A187534

WIPER MOTOR

MOTOR ASSEMBLY - with bracket, front windshield wiper, 24 volt, Includes: Ref. 1 - 9

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

1

A187535

WIPER MOTOR

MOTOR - 24 volt, windshield wiper, included in A187534 motor assembly

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

2

N8359

SUPPORT

BRACKET - wiper

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

3

N8362

CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9

SCREW AND WASHER ASSEMBLY - mounting

3шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

4

N8361

SPRING WASHER

- spring, retaining

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

5

L112090

NUT

- hex, 8 mm, retaining

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

6

N8360

SUPPORT

ARM - drive

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

7

A187835

ROD

LINK - wiper

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

8

A187836

CROSS SHAFT

SHAFT - pivot

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

9

N8356

SCREW,Phillips Drive, Flat HD, M5 x 8mm

- bracket

4шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

10

L112088

WASHER

- flat, 20 x 29 x 1 mm, shaft

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

11

L112087

NUT

- hex, 20 mm - 1, shaft

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

12

L112089

WASHER

- spring, 8 mm

2шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

13

L112090

NUT

- hex, 8 mm, retaining

2шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

14

L112081

CAP

- wiper

2шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

16

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

- hex, 1/4 NF x 3/4 inch

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

17

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

4шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

18

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

18a

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

19

1339586C1

COVER

- mounting, front wiper

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- 5/16 inch, black, wiper cover

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

21

A186219

GASKET,1.5mm Thk

- pivot

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

22

A186220

PIVOT ASSY.

PIVOT - wiper arm

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

23

A187964

WIPER ARM

ARM - 680 mm long, windshield wiper, replaces A187573

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

24

A187574

WIPER BLADE

BLADE - 700 mm long, windshield wiper

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.

234594A1

WIPER BLADE

REFILL for Ref. 24. The refill does not have a metal strip. You need to use the metal strip from the old blade.

1шт.

25

1970002C1

JET

NOZZLE - fluid, windshield wiper

1шт.

26

1964827C1

PIPE

HOSE - 810 mm long, Serial Range: nozzle-elbow

1шт.

27

1970003C1

CLIP,ELECTRICAL

CLIP - hose, to wiper arm

2шт.

28

1968053C1

ELBOW

CONNECTOR - bulkhead, 90 degree

1шт.

29

N8361

SPRING WASHER

- spring, retaining

1шт.

30

825-1408

NUT,M8, Cl 8

1шт.

31

1964828C1

PIPE

HOSE - 1145 mm long, elbow to fluid reservoir

1шт.

32

425-106

NUT,3/8"-16, Cl 5

If used 3/8"-16, G5

3шт.

33

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

- flat, 13/32 x 13/16 x 3/64 inch, if used

3шт.

34

R14668

CLAMP

- harness retaining, if used

3шт.

35

A187527

RESERVOIR ASSY.

RESERVOIR ASSEMBLY - with pump, windshield wiper fluid

1шт.

36

1276117C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 3/4"

SCREW - 1/4 NC x 3/4 inch, special

2шт.

37

1990502C1

WASHER

- flat, 17/64 x 13/16 x 5/64 inch

2шт.

38

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

39

1981919C1

WIPER SEAL

- 260 mm long, adhesive back, no longer available, order Ref. 41, one piece seal

2шт.

40

1340076C1

WIPER SEAL

- 150 mm long, adhesive back, no longer available, order Ref. 41, one piece seal

2шт.

41

1994815C1

WIPER SEAL

- one piece, adhesive back

1шт.

Included in P/NL36339 canopy windshield and wiper kit on Fig. 9-106.

1шт.
