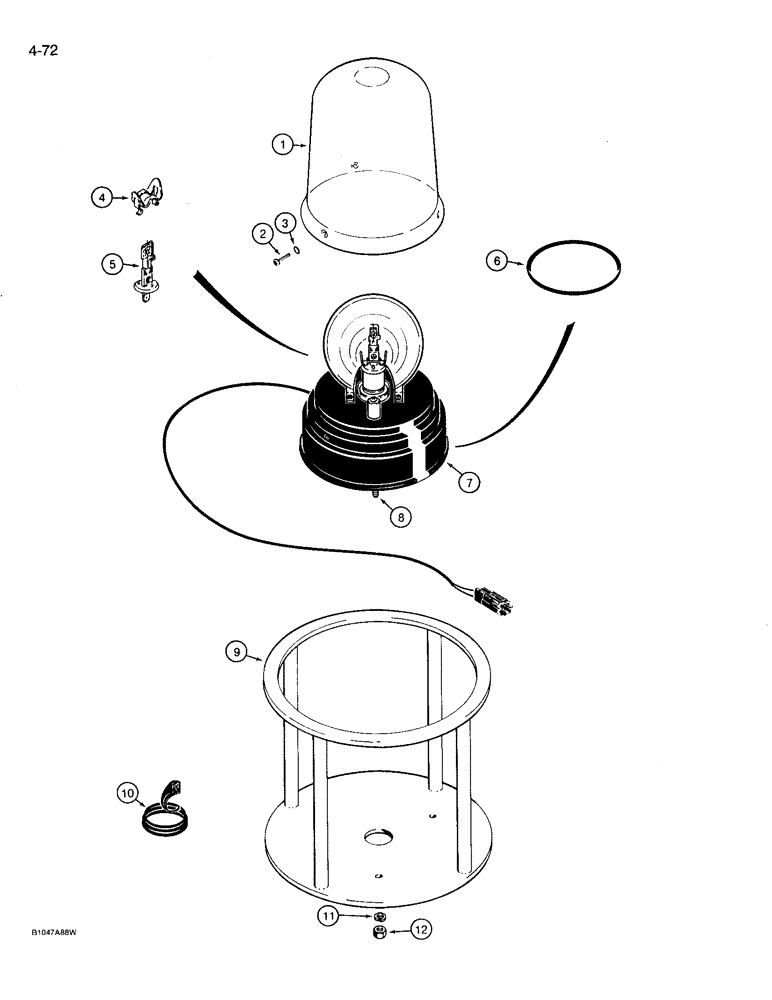

Запчасти Case 721 (4-72) - ROTATING BEACON ASSEMBLY AND MOUNTING (04) - ELECTRICAL SYSTEMS

A187528

LIGHT ASSY.

BEACON ASSEMBLY - rotating, Includes: Ref. 1 - 8

1шт.

1

A187542

LENS

- beacon, amber

1шт.

2

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, round head, No. 8 x 1/2 inch, Lens mounting

3шт.

3

S5598

O-RING,0.106" ID x 0.218" OD x 0.73"

SEAL - lens mounting screw

3шт.

4

NSS

NOT SOLD SEPARAT

CLIP - bulb

1шт.

5

A187543

BULB,H1 24V 70W

- halogen, rotating beacon

1шт.

6

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

7

NSS

NOT SOLD SEPARAT

BASE ASSEMBLY - with drive motor, rotating beacon

1шт.

8

814-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 20 mm

3шт.

9

L124809

CAGE

- beacon

1шт.

10

L109042

GASKET

TRIM - edge, 12-7/8 inch (350 mm) long, cut from F42827 trim, see below

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

12

825-1406

NUT,M6, Cl 8

3шт.

F42827

TRIM,2946.4mm L

TRIM - 116 inch (2946 mm) long, cut to required length

1шт.

A187985 Red Lens Rotary Beacon set up.

1шт.

127158A1 Blue Lens is available for the A187985 Beacon. (Blue Lens is required Snow removal machines inn Canada)

1шт.
