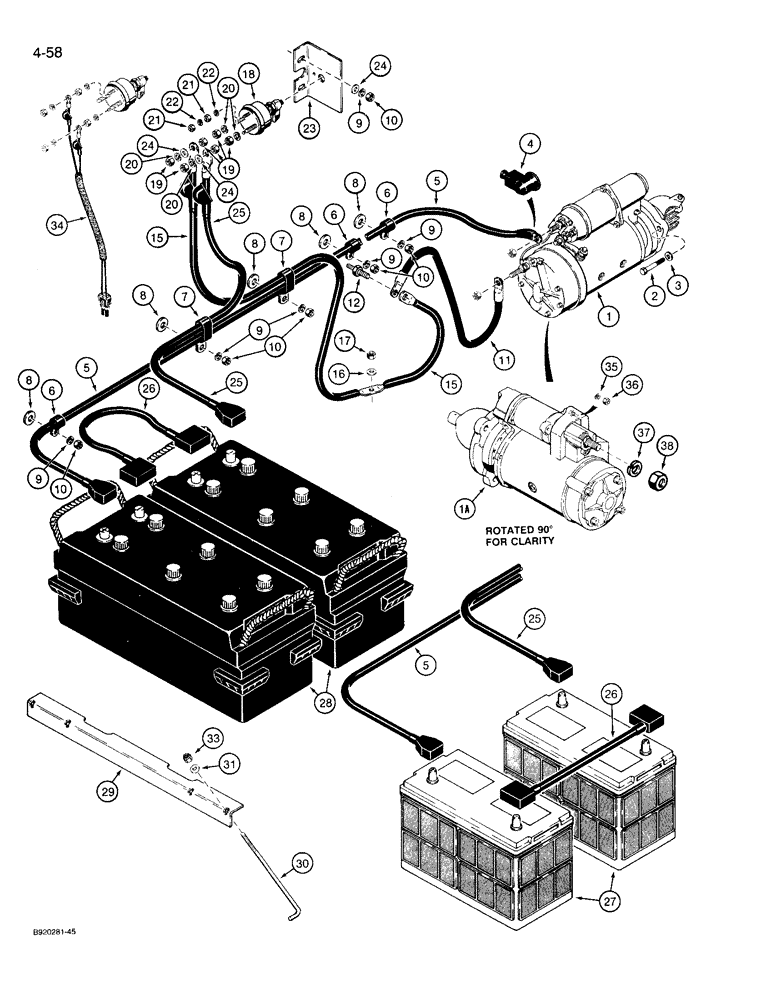

Запчасти Case 721 (4-58) - STARTER, BATTERY, AND BATTERY CABLES (04) - ELECTRICAL SYSTEMS

A186270

STARTING MOTOR

STARTER ASSEMBLY - production, 24 volt, Delco Remy No. 1993796, for service order A187568 starter assembly (Ref. 1)

1шт.

1

A187568

STARTING MOTOR

STARTER ASSEMBLY - service replacement, Delco Remy No. 1990453, parts list Figures 4-6 through 4-10, no longer available, order Ref. 1A, A187722

1шт.

1a

A187722

STARTING MOTOR

STARTER ASSEMBLY - Nippondenso No. 128000-7020, parts list Figures 4-12 and 4-14

1шт.

1a

AR187722

REMAN-STARTER

Remanufactured Starter

1шт.

1a

AC187722

CORE-STARTER

Return Number

1шт.

2

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

BOLT, Hex, M10 x 50, 8.8

3шт.

3

R24323

WASHER

WASHER - flat, 13.5 ID x 25 OD, hardened

3шт.

4

L126713

BOOT

BOOT - plastic, cable at starter

1шт.

5

L126109

CABLE

CABLE - battery to starter, positive terminal

1шт.

6

49885

CLAMP

- battery cable to rear frame

3шт.

7

L19029

CLAMP

CLAMP - double, battery cable to rear frame

2шт.

8

S95569

WASHER

WASHER - flat, 9/16 x 1-3/8 x 9/64 inch, hardened

5шт.

9

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

7шт.

10

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

7шт.

11

L126351

CABLE

CABLE - ground, at starter, used with A187568 starter

1шт.

12

L127553

STUD

ADAPTER - stud, brass, cable mounting

1шт.

15

L124790

CABLE

CABLE - ground, at disconnect switch

1шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

WASHER - flat, 3/8 inch, brass

1шт.

17

L127555

NUT,Hex, 3/8" - 16

NUT - hex, 3/8 inch, brass

1шт.

L126256

SWITCH

SWITCH - master disconnect, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - switch

1шт.

19

129-187

NUT,5/16"-24, Brass

NUT - hex, 3/8 inch NF, brass

6шт.

20

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

21

131-573

NUT,#10-32

NUT - hex, self-locking, No. 10 NF

4шт.

22

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

23

L126108

SUPPORT

BRACKET - mounting, disconnect switch

1шт.

24

495-21044

WASHER,3/8"

WASHER, (flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

25

L124788

CABLE

CABLE - ground, disconnect switch to battery, negative terminal

1шт.

26

L124738

CABLE

CABLE - jumper, Serial Range: battery-battery

1шт.

27

BMF31E

DRY BATTERY

BATTERY - standard, 12 volt, dry type, service replacement

2шт.

28

BHC4DA

BATTERY, DRY

BATTERY DRY BATTERY - heavy duty, 12 volt, dry type, service replacement

2шт.

29

L124221

SUPPORT

BRACKET - battery hold down

2шт.

30

L124224

BOLT

BOLT - special, J-type, battery hold down

4шт.

31

495-21038

WASHER,5/16"

WASHER, (flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

33

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

4шт.

34

L127676

WIRE HARNESS

HARNESS - disconnect

1шт.

35

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

36

225-14210

NUT,#10-32

NUT, #10-32

1шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

38

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
