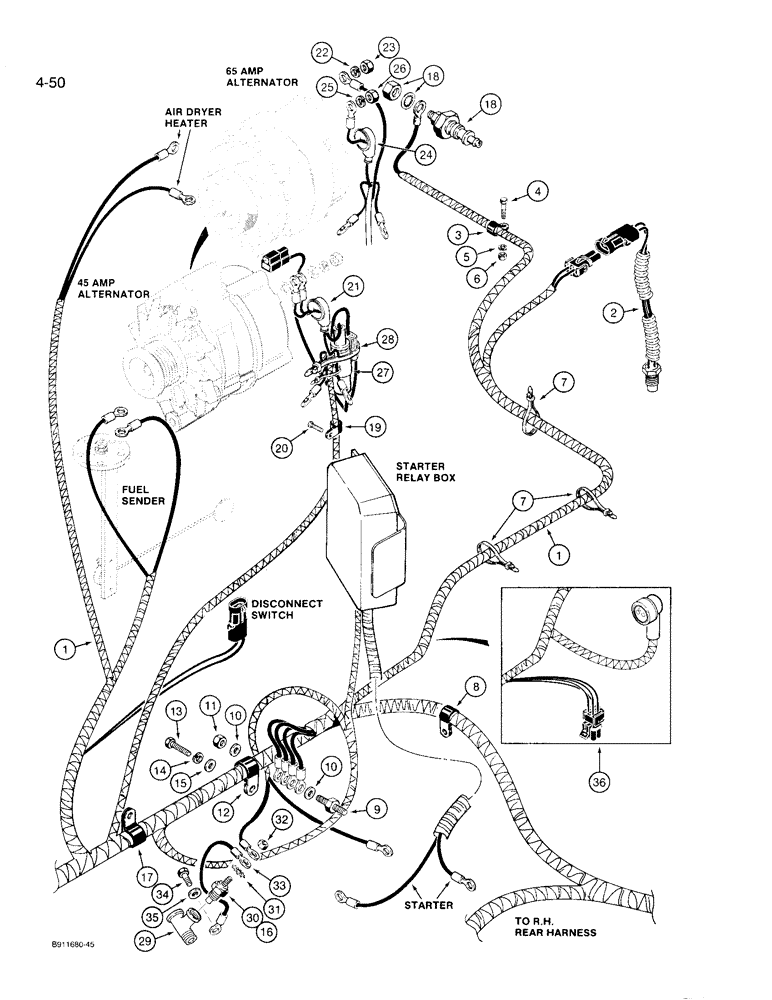

Запчасти Case 721 (4-50) - REAR HARNESS, ENGINE LEFT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L125425

HARNESS

- rear, see Figures 4-48 and 4-52 for continuation of harness, Includes: Ref. 1A, Serial Range: -JAK0022758

1шт.

1a

A186288

RELAY

- control, transmission to shifter, shown on Figure 4-48, Ref. 1A

1шт.

2

A187530

TEMPERATURE SENDER

SWITCH - temperature, hydraulic oil

1шт.

3

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- harness, at filter

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

5

492-11038

LOCK WASHER,3/8"

1шт.

6

425-106

NUT,3/8"-16, Cl 5

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- rear harness, uses transmission hardware

2шт.

9

L126316

STUD

ADAPTER - stud, copper, engine ground mount

1шт.

10

L126317

COPPER WASHER

WASHER - flat, special, copper

2шт.

11

L126318

NUT

- hex, special, copper

1шт.

12

S88820

CLAMP

- retaining, harness

1шт.

13

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

14

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

15

895-11012

WASHER,13.5mm ID x 24mm OD x 2.5mm Thk

1шт.

16

A187529

TEMPERATURE SENDER

SENDER - engine temperature, Serial Range: -JAK0022587

1шт.

17

49858

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- medium closed, 3/4 inch diameter, uses existing hardware

2шт.

18

N13268

PRESSURE SWITCH

INDICATOR ASSEMBLY - restriction, hydraulic oil, parts list Figure 8-40

1шт.

19

49836

CLAMP

- 1/2 inch diameter

1шт.

20

814-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 16 mm

1шт.

21

L126713

BOOT

- plastic, alternator

1шт.

22

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Use on models with 65 amp alternator 7/16"

1шт.

23

425-107

NUT,7/16"-14, G5

- hex, 7/16 inch NC, Use on models with 65 amp alternator

1шт.

24

S64612

BOOT

- rubber, use on models with 65 amp alternator

1шт.

25

892-11004

LOCK WASHER,M4

WASHER, LOCK, , Use on models with 65 amp alternator M4

1шт.

26

825-1404

NUT,M4, Cl 8

Use on models with 65 amp alternator M4, Cl 8

1шт.

27

L127475

HARNESS

CAPACITOR - harness, use on models with 45 amp alternator

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

29

221-1693

TEE,Street, 1/2" NPT

- street, 1/2 inch PT

1шт.

30

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER - engine temperature, Start Serial: JAK0022587

1шт.

31

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

1шт.

32

225-20210

NUT,#10-32, Brass

1шт.

33

L129823

ELECTRICAL WIRE

WIRE - resistor, engine coolant temperature sender to engine, use with A191109 instrument cluster, Ref. 1, Figure 4-16, Start Serial: JAK0022558

1шт.

Has a built in 1/2 watt, 2.7 resistor (NSS) built into it.

1шт.

34

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 16 mm

1шт.

35

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

36

L129034

HARNESS

- rear, see Figures 4-48 and 4-52 for continuation of harness, Start Serial: JAK0022558

1шт.
