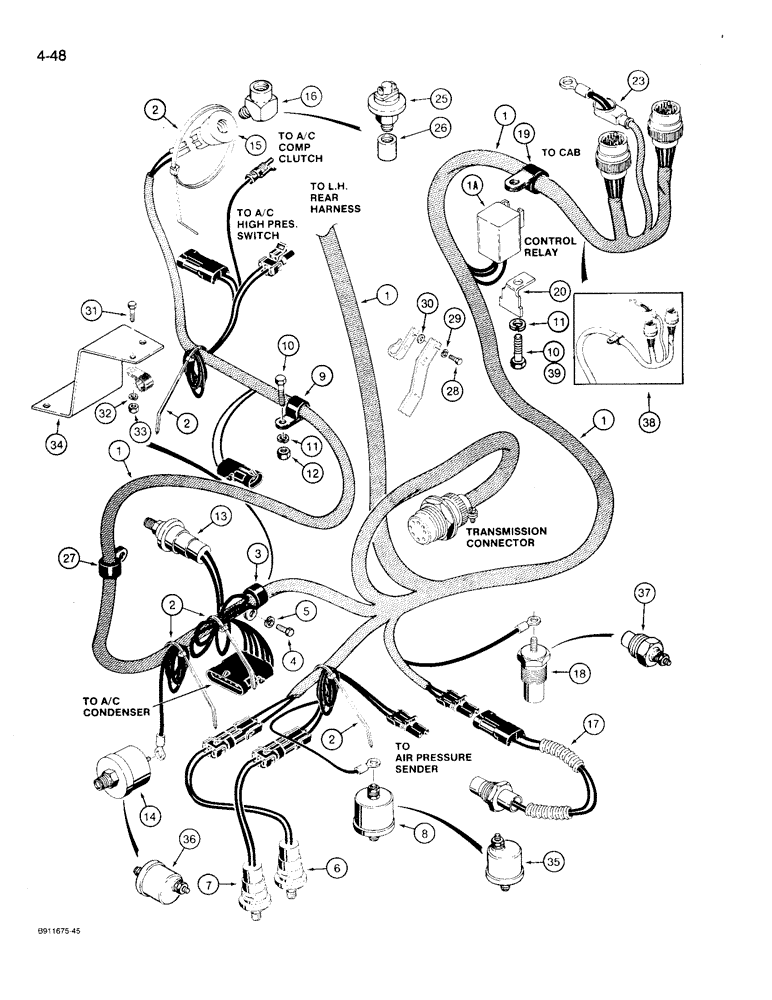

Запчасти Case 721 (4-48) - REAR HARNESS, ENGINE RIGHT-HAND SIDE (04) - ELECTRICAL SYSTEMS

1

L125425

HARNESS

- rear, see Figures 4-50 and 4-52 for continuation of harness, Includes: Ref. 1A, Serial Range: -JAK0022758

1шт.

1a

A186288

RELAY

- control, Serial Range: transmission-shifter

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

49799

GASKET

CLAMP - harness, at torque converter

1шт.

4

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 20 mm

1шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

6

1546463C1

SWITCH, PRESSURE

SWITCH - declutch, low air, replaced A187770

1шт.

7

A187531

SWITCH

- pressure, low air

1шт.

8

A187532

PROBE

SENDER - air pressure, brake, use with A187539 gauge, Ref. 4 on Figure 4-18

1шт.

9

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

- harness retaining, at engine

1шт.

10

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1-2шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

A187723

SENDER UNIT

SWITCH - engine oil pressure

1шт.

14

677161R92

SENDER UNIT

SENDER - engine oil pressure, use with A187537 gauge, Ref. 2 on Figure 4-18

1шт.

15

A172784

RESTRICTION SWITCH

SWITCH - air restriction, no longer available, order Ref. 25, 1983233C1, and Ref. 26, 221-1335

1шт.

16

217-1084

45 ELBOW,45 Degree, 1/8"-27 Female x 1/8"-27 Male

Street, Use with Ref. 15, A172784 switch 45º, 1/8"-27 Female x 1/8"-27 Male

1шт.

17

A187530

TEMPERATURE SENDER

SWITCH - temperature, transmission oil

1шт.

18

S111010

TEMPERATURE SENDER

SENDER - temperature, transmission oil, use with A187538 gauge, Ref. 3 on Figure 4-18

1шт.

19

R14668

CLAMP

- harness, at transmission

1шт.

20

L127449

SUPPORT

BRACKET - mounting, transmission shift relay, L125425 harness

1шт.

23

L126713

BOOT

- plastic, harness at floor of operators compartment

1шт.

25

1983233C1

RESTRICTION SWITCH

SWITCH, air restriction

1шт.

26

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

27

49833

CLAMP

- harness retaining, at throttle lever on units without air conditioning, uses Refs. 28, 29, and 30 hardware, at hose clamp bracket on units with air conditioning, uses Refs. 31, 32, and 33 hardware

1шт.

28

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

29

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 7 x 13 x 2 mm

2шт.

31

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

32

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

34

L125956

SUPPORT

BRACKET - hose clamp, units with air conditioning

1шт.

35

L128324

SENDER UNIT

SENDER - air pressure, brake, use with L125855 gauge, Ref. 4 on Figure 4-20

1шт.

36

L127534

SENDER UNIT

SENDER - engine oil pressure, use with L125853 gauge, Ref. 2 on Figure 4-20

1шт.

37

L127532

TEMPERATURE SENDER,1/2" - 14

SENDER - temperature, transmission oil, use with L125854 gauge, Ref. 3 on Figure 4-20

1шт.

38

L129034

HARNESS

- rear, see Figures 4-50 and 4-52 for continuation of harness, Start Serial: JAK0022758

1шт.

39

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch, if used

1шт.
