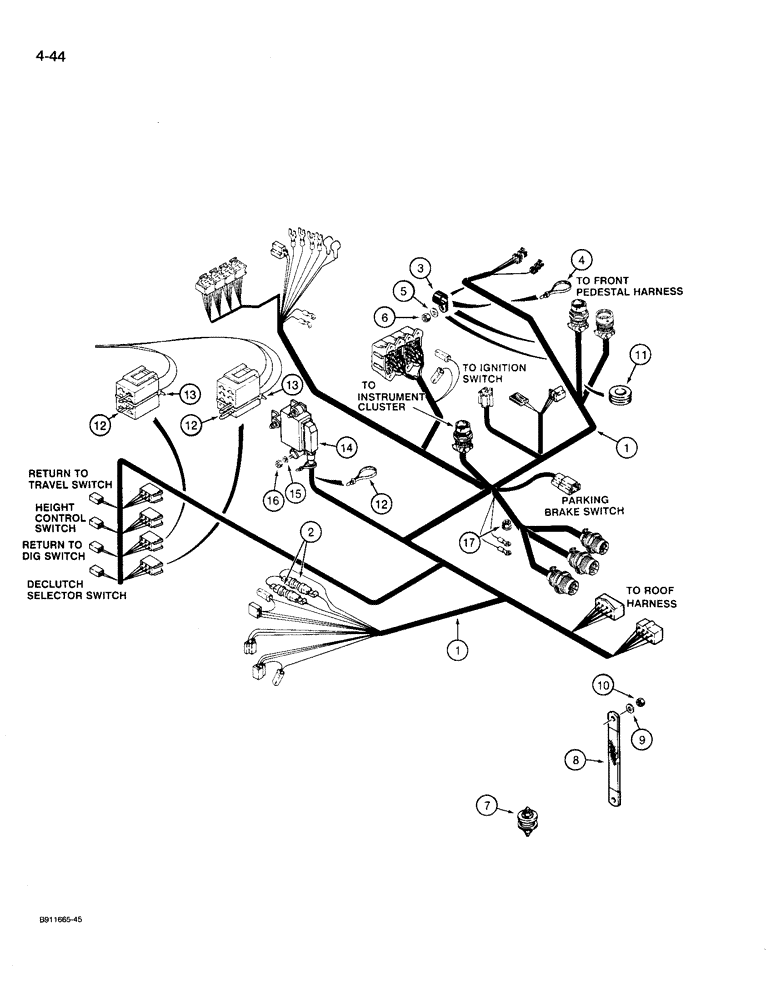

Запчасти Case 721 (4-44) - *MAIN CANOPY HARNESS, TRANSMISSION CONTROL, P.I.N. JAK0022758 & AFTER (04) - ELECTRICAL SYSTEMS

1

1546471C1

HARNESS

- main ROPS canopy, Includes: Ref. 2

1шт.

2

548239R2

RECTIFIER

- module diode

2шт.

3

R14668

CLAMP

- harness retaining, two not shown

4шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

4шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 1/4 inch NC

4шт.

7

A187523

JUNCTION BLOCK

CONNECTOR - harness, includes hardware

1шт.

8

L126051

GROUND STRAP

STRAP - ground

1шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, 11 x 25 x 2 mm, brass

2шт.

10

L127555

NUT,Hex, 3/8" - 16

- hex, 3/8 inch NC, brass

2шт.

11

1970021C1

GROMMET

- harness, branch to front pedestal harness

1шт.

12

L127013

ELECTRICAL WIRE

CABLE - jumper, use when height control and return-to-transport option is not used

2шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

14

A187988

TESTER

CONTROL - transmission

1шт.

14

138496A1R

REMAN ELECT CONTROL

721, REMAN for Part No. A187988, N.A. Only

1шт.

14

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

15

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

16

225-14110

NUT,#10-24

3шт.

17

1999948C1

FLANGE NUT

- hex flange, 5/16 inch, special, mounts ground wire to canopy frame

1шт.
