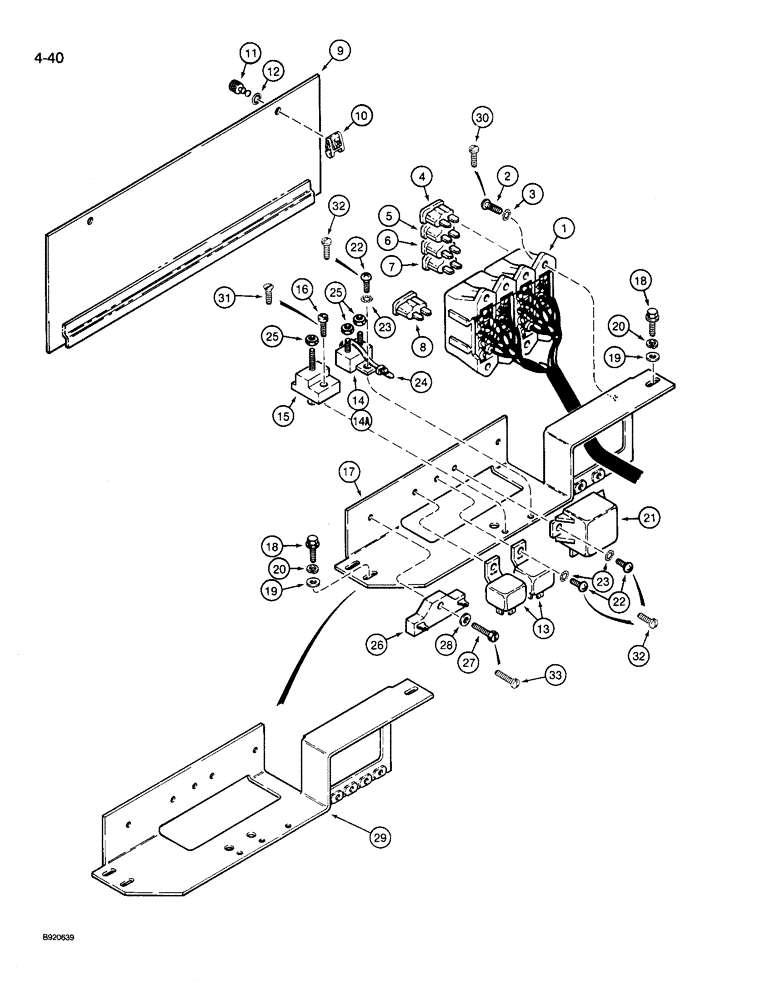

Запчасти Case 721 (4-40) - CANOPY HARNESS - OPERATORS COMPARTMENT, POWER DISTRIBUTION CENTER, PRIOR TO P.I.N. JAK0022758 (04) - ELECTRICAL SYSTEMS

1

A187886

SWITCH

HARNESS - ROPS canopy, see Figure 4-38 for serviceable rectifiers

1шт.

2

182-524

SCREW,Cross Pan Hd, #10 - 24 x 5/8"

- machine, pan head Phillips, No. 10 NC x 5/8 inch, if used

4шт.

3

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

4шт.

4

A149796

FUSE

- 3 ampere (Violet)

1шт.

5

A149798

FUSE

- 5 ampere (Tan)

2шт.

6

A149799

FUSE

- 7.5 ampere (Brown)

4шт.

7

A149800

FUSE,10 Amp

- 10 ampere (Red)

6шт.

8

A149801

FUSE,Lt Blue, 15 Amp

- 15 ampere (Light blue)

1шт.

9

1977999C3

COVER

- fuse box

1шт.

10

A36042

CLIP

RECEPTACLE - quarter turn

2шт.

11

1970049C1

BUTTON

STUD - fuse box

2шт.

12

1981869C1

WASHER

- stud

2шт.

13

A186288

RELAY

- mini

2шт.

14

1964993C1

CIRCUIT-BREAKER

BREAKER - circuit, 10 amp, includes bracket, with plastic housing and seal, no longer available, order Ref. 14A, S243558 circuit breaker (12.5 amp)

1шт.

14a

S243558

CIRCUIT-BREAKER,12.5A

BREAKER - circuit, 12.5 amp, includes bracket, with plastic housing and seal, if used

1шт.

15

245539C1

CONNECTION

BLOCK - junction

1-2шт.

16

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

- machine, flat head slotted, No. 10 NC x 5/8 inch if used

1шт.

17

1970035C1

SUPPORT

HOUSING - power distribution center, includes weldnuts, uses Refs. 2,16, 22, and 27 screws, no longer available, order Ref. 29, 1970034C4 housing

1шт.

18

187-1310

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex flange, 1/4 NC x 3/4 inch

3шт.

19

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 5/64 inch

3шт.

20

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

21

1546542C1

RELAY

- canopy power, replaces L115883 relay

1шт.

22

182-550

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan head Phillips, No. 10 NC x 1/2 inch, if used

5шт.

23

493-11020

LOCK WASHER,5.08mm ID x 12.75mm OD x 1.02mm Thk

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

5шт.

24

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

26

F22316

RESISTOR,75 Ohms 0.2 Amps DC

- 75 ohm, if used

1шт.

27

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- hex, slotted, No. 10 x 1 inch, if used

1шт.

28

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

1шт.

29

1970034C4

SUPPORT

HOUSING - power distribution center, uses Refs. 30 - 33 screws

1шт.

30

187-330

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - pan head, self-tapping, No. 10 NC x 5/8 inch, if used

4шт.

31

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - self-tapping, No. 10 NC x 5/8 inch, if used

1шт.

32

263-1056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - pan head, self tapping, No. 10 NC x 1/2 inch, if used

5шт.

33

26489R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - pan head, self tapping, No. 10 NC x 1 inch, if used

1шт.
