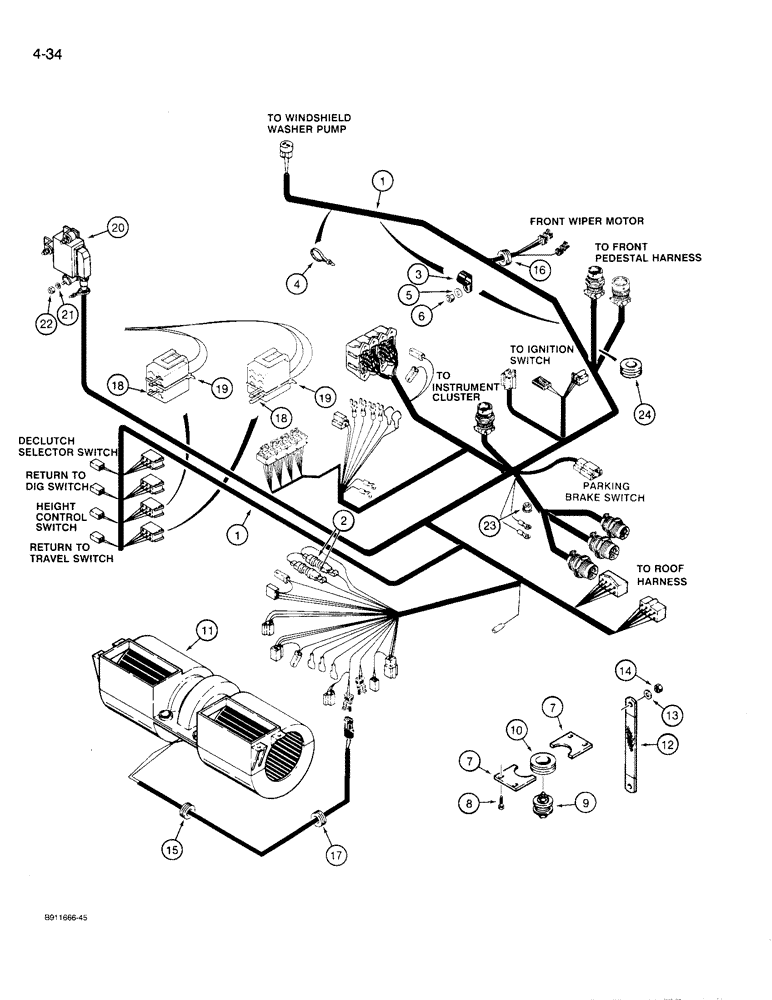

Запчасти Case 721 (4-34) - MAIN CAB HARNESS, TRANSMISSION CONTROL, *P.I.N. JAK0022758 (04) - ELECTRICAL SYSTEMS

1

1546470C1

HARNESS

- main cab, Includes: Ref. 2

1шт.

2

548239R2

RECTIFIER

- module diode

2шт.

3

R14668

CLAMP

- harness retaining

2шт.

4

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

2шт.

6

7770

NUT,Hex, 1/4 - 20, Cl 5

- hex, 1/4 inch NC

2шт.

7

1970030C1

LARGE PLATE

PLATE - harness guide

2шт.

8

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

4шт.

9

A187523

JUNCTION BLOCK

CONNECTOR - harness, includes hardware

1шт.

10

A187875

GROMMET

- rubber, cab floor

1шт.

11

REF

INSTRUCTION

BLOWER ASSEMBLY - cab, parts list Figure 4-78

1шт.

12

L126051

GROUND STRAP

STRAP - ground

1шт.

13

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

- flat, 11 x 25 x 2 mm, brass

2шт.

14

L127555

NUT,Hex, 3/8" - 16

- hex, 3/8 inch NC, brass

2шт.

15

96901C1

GROMMET

- blower wire

1шт.

16

117975

GROMMET,5/8" ID x 1 3/8" x .062", Diag Cut

- wiper wire

1шт.

17

1546537C1

GROMMET

- wire

1шт.

18

L127013

ELECTRICAL WIRE

CABLE - jumper, use when height control and return-to-transport option is not used

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

20

A187988

TESTER

CONTROL - transmission

1шт.

20

138496A1R

REMAN ELECT CONTROL

721, REMAN for Part No. A187988, N.A. Only

1шт.

20

138496A1C

CORE-ELECTRONIC CONT

Return Number, For N.A. Only

1шт.

21

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

22

225-14110

NUT,#10-24

3шт.

23

1999948C1

FLANGE NUT

- hex flange, 5/16 inch, special, mounts ground wire to cab frame

1шт.

24

1970021C1

GROMMET

- harness, branch to front pedestal harness

1шт.
