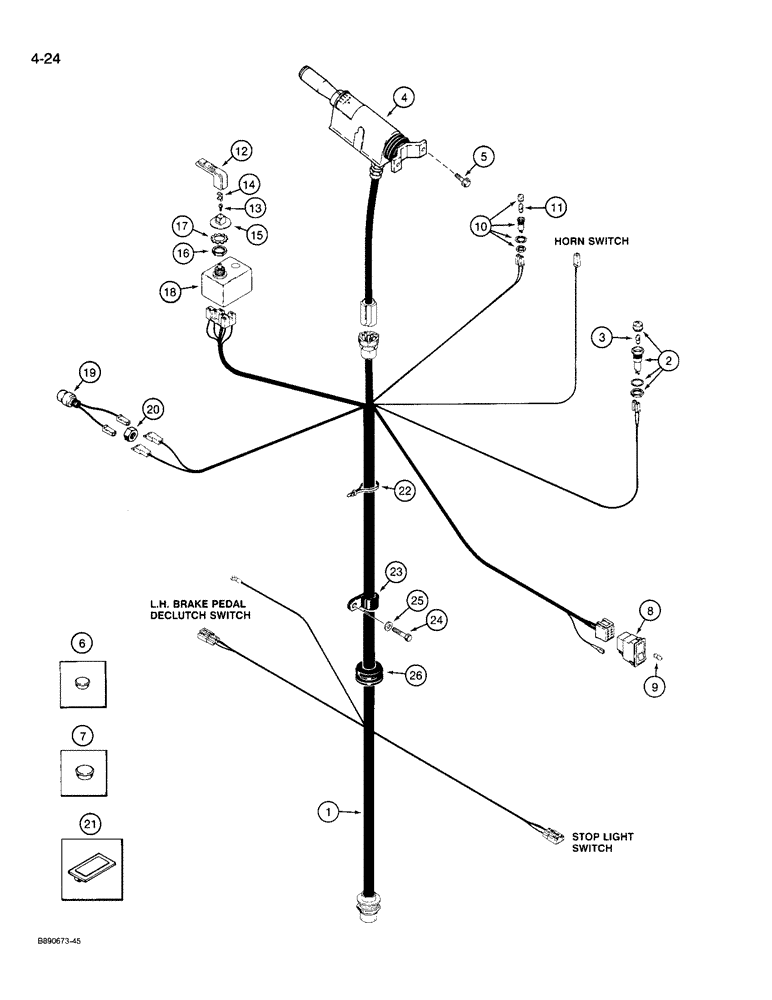

Запчасти Case 721 (4-24) - HARNESS - PEDESTAL, *PRIOR TO P.I.N. JAK0022758 (04) - ELECTRICAL SYSTEMS

1

A187710

HARNESS

- pedestal

1шт.

A186268

LAMP

ASSEMBLY - master warning mounting hardware, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

3

193067

BULB,C2F, #313, 28V

- lamp, No. 313

1шт.

4

A187760

SELECTOR

CONTROL ASSEMBLY - transmission, speed selector, parts list, Figure 4-63A

1шт.

Whenever a nozzle is removed from cylinder head, P/N J906659 gasket must be replaced before nozzle is installed.

1шт.

(Used on models with Clark Shifter only)

1шт.

4

75239663R

REMAN-JOYSTICK

721 CASE WHEEL LOADER (NORTH AMERICA), Control Assembly transmission speed, *PRIOR TO P.I.N. JAK0022758, Reman for New PN A187760

1шт.

4

75239663C

CORE-JOYSTICK

Return Number

1шт.

5

814-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex flange, 8 mm - 1.25 x 25 mm

2шт.

6

353-406

PLUG,Dome, .625" hole, Nylon

- nylon, 5/8 inch, used on units without Ref. 19, A135520 switch

1шт.

7

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, 1-3/16 inch, used on units without Ref. 18, L127265 switch

1шт.

8

A187589

SWITCH

- rocker, flasher lamp, Includes: Ref. 9

1шт.

9

926645C1

BULB,W5, 12V, 1.2W

- W5/1,2 24V1

1шт.

A187667

LAMP

ASSEMBLY - indicator, turn signal, Includes: Ref. 10 and 11

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - lamp, includes lens cap and mounting hardware

1шт.

11

T39215

BULB

- indicator lamp, No. 1820

1шт.

12

97103C3

LEVER

- turn signal

1шт.

13

170-104

SCREW,Sl Pan Hd, #5 - 40 x 3/8"

- machine, pan head slotted, No. 5 NC x 3/8 inch

1шт.

14

1329896C1

CLASP

CLIP - retaining, lever

1шт.

15

97102C1

ADAPTER

- lever, turn signal

1шт.

16

D91352

JAM NUT

- hex jam, 3/4 inch NS

1шт.

17

193-98

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

1шт.

18

L127265

SWITCH

- turn signal

1шт.

19

A135520

SWITCH

- cold start

1шт.

20

425-1110

NUT,5/8"-18, G5

1шт.

21

245918C1

LENS

PLUG - rocker switch, used on units without Ref. 8, A187589 rocker switch

1шт.

22

473321C1

CABLE TIE,8" OAL x 0.098" W

STRAP, CABLE, , Harness to pedestal .098" x 8"

3шт.

23

R14668

CLAMP

- harness retaining

1-2шт.

24

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1-2шт.

25

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1-2шт.

26

1970021C1

GROMMET

- harness, cab floor

1шт.
