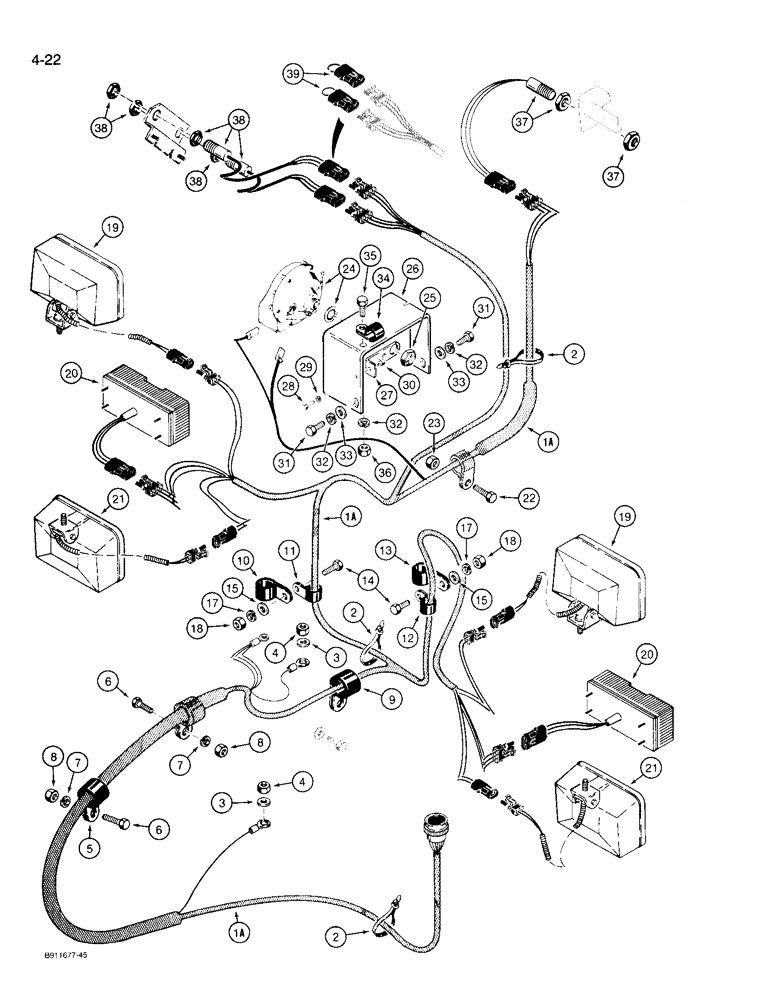

Запчасти Case 721 (4-22) - FRONT HARNESS - LAMPS AND SWITCHES (04) - ELECTRICAL SYSTEMS

1

L126375

HARNESS

- front, not shown, Serial Range: -JAK0022758

1шт.

P/N L126375 harness is identical to P/N L129089 harness except that it has two wires and connectors for auxiliary steering in the area of the rear chassis ground wire and a connector to the cab harness.

1шт.

1a

L129089

HARNESS

- front, Serial Range: -JAK0022758

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

L126317

COPPER WASHER

WASHER - flat, special, copper

2шт.

4

L126318

NUT

- hex, special, copper

2шт.

5

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- harness, front

1шт.

6

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, use existing hardware

1шт.

10

D34033

CLAMP

- hydraulic tube, left hand

1шт.

11

49845

CLAMP

- harness, use on models with return to dig only

1шт.

11

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

- harness, replaces 49845 clamp, use on models with return to dig, height control and return-to-transport

1шт.

12

49838

CLAMP

- harness, front lamps

1шт.

13

D34033

CLAMP

- hydraulic tube, right hand

1шт.

14

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

15

495-21044

WASHER,3/8"

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

2шт.

17

492-11038

LOCK WASHER,3/8"

2шт.

18

425-106

NUT,3/8"-16, Cl 5

2шт.

19

A187519

LIGHT ASSY.,24V, 70W, Clear

LAMP - drive, parts list Figure 4-68

2шт.

20

A186292

LIGHT ASSY.

LAMP - turn signal and flasher, parts list Figure 4-70

2шт.

21

A187520

LIGHT ASSY.,24V, 70W, Clear

LAMP - flood, parts list Figure 4-68

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

23

131-218

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

1шт.

24

L10353

HORN

- electric, includes internal tooth lock washer

1шт.

25

L30866

LOCK NUT

- hex, 7/8 inch - 20 thread

1шт.

26

L126838

COVER

- horn

1шт.

27

L73799

BRACKET

- mounting, horn

1шт.

28

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

1шт.

29

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

30

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

31

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

32

492-11038

LOCK WASHER,3/8"

3шт.

33

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- harness, return to dig

1шт.

35

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

36

425-106

NUT,3/8"-16, Cl 5

1шт.

37

A187552

SWITCH

- wiper arm, proximity, return to dig, includes hardware

1шт.

38

A186283

IGNITION SWITCH

SWITCH - proximity, height control and return to transport, includes hardware

2шт.

39

L127785

HARNESS

CONNECTOR - jumper wire, use when height control and return to transport option is not used

2шт.
