Запчасти Case 721 (4-18) - OPTIONAL GAUGES WITH BULLET TYPE TERMINALS, AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS

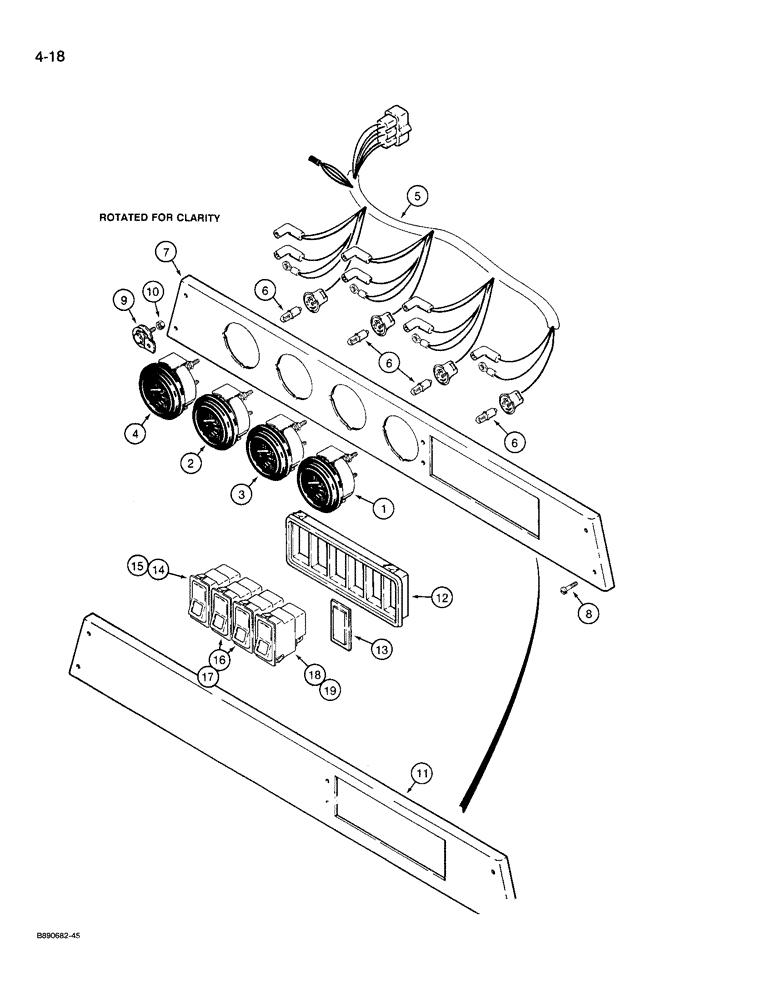

Схема запчастей Case 721 - (4-18) - OPTIONAL GAUGES WITH BULLET TYPE TERMINALS, AND OVERHEAD SWITCHES (04) - ELECTRICAL SYSTEMS
9
13
15
8
7
2
6
3
19
18
11
4
5
17
6
10
14
6
1
16
12

Артикул

Название

Примечание

Количество

1

A187536

VOLTMETER

GAUGE - voltmeter, no longer available, order one each of Refs. 1 and 6 and two of Ref. 7 shown on Figure 4-20

1шт.

2

A187537

OIL PRESSURE GAUGE

GAUGE - engine oil pressure, no longer available, order one each of Refs. 2 and 6 and three of Ref. 7 shown on Figure 4-20, and Ref. 36, L127534 sender, Figure 4-48

1шт.

See Fig. 4-48 for the proper electrical senders. Ref. 8, 14, and 18 on that Figure are used with gauges with bullet type connectors.

1шт.

3

A187538

PRESSURE GAUGE

GAUGE - transmission oil temperature, no longer available, order one each of Refs. 3 and 6 and three of Ref. 7 shown on Figure 4-20, and Ref. 37, L127532 sender, Figure 4-48

1шт.

See Fig. 4-48 for the proper electrical senders. Ref. 8, 14, and 18 on that Figure are used with gauges with bullet type connectors.

1шт.

4

A187539

PRESSURE GAUGE

GAUGE - air pressure, no longer available, order one each of Refs. 4 and 6 and three of Ref. 7 shown on Figure 4-20, and Ref. 35, L128324 sender, Figure 4-48

1шт.

See Fig. 4-48 for the proper electrical senders. Ref. 8, 14, and 18 on that Figure are used with gauges with bullet type connectors.

1шт.

5

A187633

HARNESS

- optional gauge

1шт.

6

T39215

BULB

- gauge, No. 1820

4шт.

7

1339563C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units with optional gauges

1шт.

8

182-582

SCREW,Cross Pan Hd, 1/4"-20 x 3/4"

- machine, pan Phillips, 1/4 NC x 3/4 inch

4шт.

9

S108406

RESISTOR

- air pressure gauge

1шт.

10

225-14210

NUT,#10-32

1шт.

11

1339868C2

PANEL, INSTRUMENTS

PANEL - instrument, overhead, use on units without optional gauges

1шт.

12

A187580

PANEL

- mounting, switch

1шт.

13

245918C1

LENS

PLUG blanking, rocker switch

1шт.

14

A187622

SWITCH

- rocker, windshield washer, this switch has a plastic lense and must have decal added to show the function., Includes: Ref. 15

1шт.

See Fig. 9-110 and 9-112 for environmental control panel and rocker switch decals.

1шт.

15

926645C1

BULB,W5, 12V, 1.2W

- W5/1, 2 24V1, 2W

1шт.

16

A187621

SWITCH

- rocker, wiper, front and rear, this switch has a plastic lense and must have decal added to show the function., Includes: Ref. 17

2шт.

See Fig. 9-110 and 9-112 for environmental control panel and rocker switch decals.

1шт.

17

926645C1

BULB,W5, 12V, 1.2W

- W5/1, 2 24V1, 2W

1шт.

18

1913507C1

SWITCH ASSY

SWITCH - rocker, beacon, this switch has a plastic lense and must have decal added to show the function., Includes: Ref. 19

1шт.

See Fig. 9-110 and 9-112 for environmental control panel and rocker switch decals.

1шт.

19

926645C1

BULB,W5, 12V, 1.2W

- W5/1, 2 24V1, 2W

1шт.

20

353-401

PLUG,Dome, .312" hole, Nylon

- nylon, 5/16 inch, used with Ref. 7, 1339563C2, and Ref. 11, 1339868C2 panels, not shown

2-4шт.

Выбрано товаров: 26
