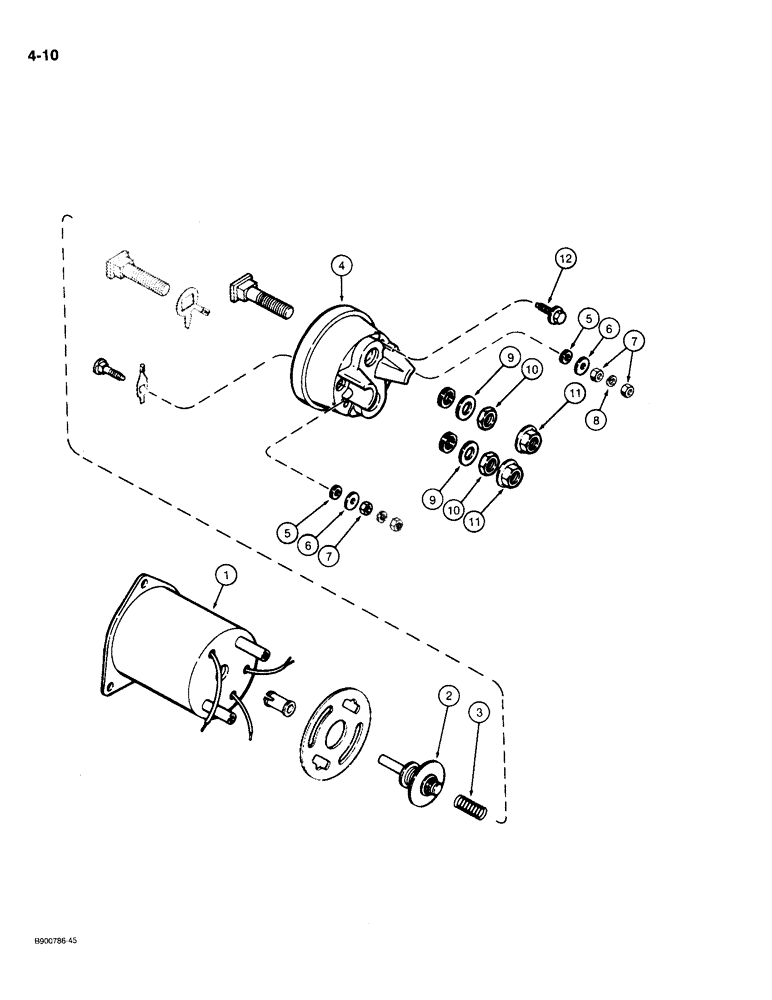

Запчасти Case 721 (4-10) - STARTER SOLENOID ASSEMBLY (04) - ELECTRICAL SYSTEMS

A49774

SWITCH

SOLENOID ASSEMBLY - starter, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - solenoid, order A49774 solenoid assembly

1шт.

2

A49566

CONTACTOR

- solenoid

1шт.

3

D32499

SPRING

- return, contact

1шт.

4

NSS

NOT SOLD SEPARAT

COVER - solenoid, order A49774 solenoid assembly

1шт.

5

A42084

INSULATOR

- terminal, rubber

2шт.

6

A49560

WASHER

- flat, terminal

2шт.

7

129-667

NUT,#10-32, LH

3шт.

8

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

1шт.

9

195-2067

WASHER,33/64" x 7/8" x .065"

- flat, 1/2 x 7/8 x 1/16 inch

2шт.

10

129-145

JAM NUT,Jam, 1/2"-13, G5

2шт.

11

A47890

NUT

NUT - flange type, 1/2 inch NC

2шт.

12

A49571

CAPTIVE WASHER SCREW,Hex, #10 - 32 x 0.62"

SCREW ASSEMBLY - retainer, cover, includes washer and seal

2шт.
