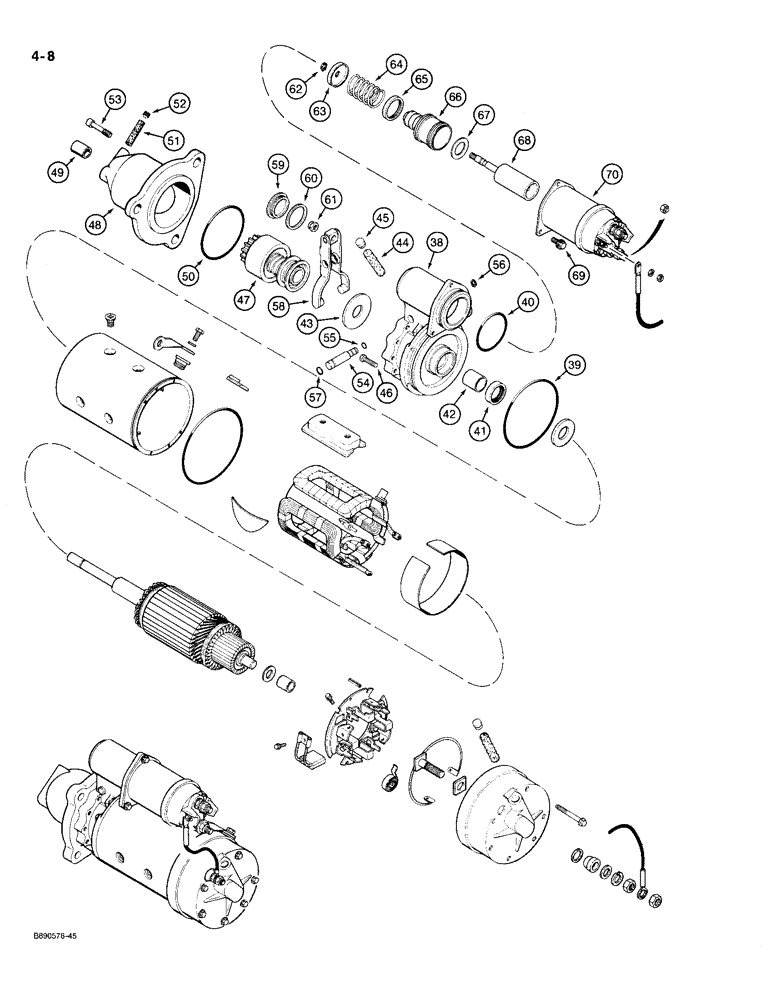

Запчасти Case 721 (4-08) - STARTER ASSEMBLY (04) - ELECTRICAL SYSTEMS

A187568

STARTING MOTOR

STARTER ASSEMBLY - service replacement, 24 volt, Delco-Remy No. 1990453, continued, Includes: Ref. 38 - 70 and 2 - 37 on Figure 4-6

1шт.

A49772

HOUSING

ASSEMBLY - shift lever, Includes: Ref. 38 - 45

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING - shift lever

1шт.

39

D31954

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- housing, lever

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

40

A14506

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

- housing, solenoid

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

Part of shift lever kit, P/N A187515

1шт.

41

R21582

OIL SEAL

- oil, housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

42

A49765

BUSHING

- armature, starter drive

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

43

A185121

WASHER

- brake, lever housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

44

A49567

WICK

- oil, lever housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

45

A49573

PLUG

- oil wick, lever housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

46

114-1

BOLT,Hex, 1/4" - 28 x 1", Gr 5

Lever housing Hex, 1/4"-28 x 1", G5

5шт.

47

A47523

DRIVE

CLUTCH - drive, starter

1шт.

A49773

HOUSING

ASSEMBLY - drive, Includes: Ref. 48 - 52

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING - drive, order A49773 housing assembly

1шт.

49

A47257

BUSHING

- armature, housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

50

A43854

O-RING,3.237" ID x 0.106" THK

- housing, lever

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

Part of shift lever kit, P/N A187515

1шт.

51

A47888

WICK

- oil, drive housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

52

A47989

SPRING

PLUG - oil wick, drive housing

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

54

A42199

PIN

SHAFT - shift lever

1шт.

Part of shift lever kit, P/N A187515

1шт.

55

A47259

O-RING,0.244" ID x 0.391" OD

- sealing, shaft, inner, 3/8 inch OD

1шт.

Part of shift lever kit, P/N A187515

1шт.

56

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

Part of shift lever kit, P/N A187515

1шт.

57

A47258

O-RING,0.369" ID x 0.515" OD

- pivot stud, outer, 1/2 inch OD

1шт.

Part of shift lever kit, P/N A187515

1шт.

58

A49775

LEVER

- shift

1шт.

Part of shift lever kit, P/N A187515

1шт.

59

R21587

PLUG

- inspection, lever housing

1шт.

60

A41924

GASKET

- plug

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

Part of shift lever kit, P/N A187515

1шт.

61

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking 5/16 inch NF

1шт.

Part of bushing kit P/N A187514 and Figure 4-6

1шт.

Part of shift lever kit, P/N A187515

1шт.

62

G46146

SNAP RING,#37, Ext

Ring, Snap, , solenoid plunger #37, Ext

1шт.

63

A43419

SEAT

- outer, spring

1шт.

64

A41242

SPRING

- return, plunger

1шт.

65

A43380

BACK-UP RING

SEAT- spring, plunger

1шт.

66

A49589

BOOT

- plunger

1шт.

67

A41922

WASHER

- plunger seat

1шт.

68

A49757

PLUNGER

- solenoid

1шт.

69

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW ASSEMBLY - mounting, solenoid, includes washer

3шт.

70

A49774

SWITCH

SOLENOID ASSEMBLY - starter, parts list Figure 4-10

1шт.

A187515

KIT

SHIFT LEVER KIT - starter, includes Refs. 40, 50, 54 - 58, 60 and 61 above

1шт.

A187514

KIT

BUSHING KIT- Includes Refs. 39, 40, 41, 42, 43, 44, 45, 49, 50, 51, 52, 60 and 61 and Figure 4-6

1шт.
