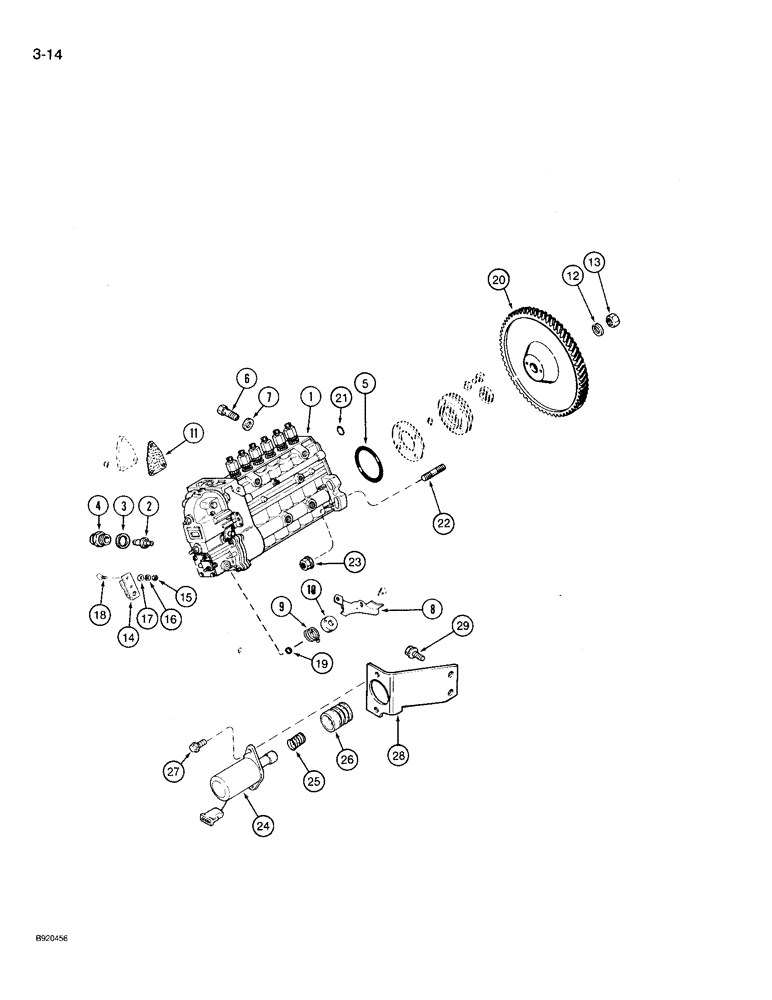

Запчасти Case 721 (3-14) - FUEL INJECTION PUMP AND DRIVE, 6T-830 ENGINE (03) - FUEL SYSTEM

1

J915973

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new, Includes: Ref. 2 - 19

1шт.

1

JR915973

PUMP

PUMP ASSEMBLY - injection, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

JC913339

CORE

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, Includes: Ref. 2 - 19

1шт.

1

JR921100

REMAN-INJECTION PUMP

Remanufactured Pump Assy

1шт.

1

JC921100

CORE-INJECTION PUMP

Return Number

1шт.

2

A77720

PIN

PIN - timing

1шт.

3

933222R1

SEALING WASHER,M18 x 22 x 1.5

SEALING WASHER, , Plug M18 x 22 x 1.5

1шт.

4

J912888

PLUG

PLUG - timing

1шт.

5

A41856

O-RING,3mm Thk x 75mm ID

O-RING - sealing

1шт.

6

J912886

VALVE

VALVE - overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

1шт.

8

J910979

LEVER

LEVER - pump shutoff, replaces J914094

1шт.

9

J912890

SPRING

SPRING - lever shutoff

1шт.

10

691292C1

RETAINER

HOUSING - spring return

1шт.

11

A46322

GASKET

GASKET - cover plate

1шт.

12

A77775

LOCK WASHER

WASHER - lock, replaces J912895

1шт.

13

A41852

LOCK NUT

NUT - hex lock

1шт.

14

1808728C1

LEVER

LEVER - throttle control

1шт.

15

1806312C1

NUT

NUT - throttle lever

1шт.

16

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

17

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

WASHER, M6

1шт.

18

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

19

680187C1

O-RING,2.5mm Thk x 9mm ID

O-RING - special sealing

1шт.

20

J912614

GEAR

GEAR - fuel pump

1шт.

21

J916284

O-RING

O-RING - sealing

1шт.

22

J915036

STUD

STUD - pump mounting, replaces J907978, 55 mm (2-5/32 in)

4шт.

23

J902662

FLANGE NUT

NUT - hex flange, 10 mm

4шт.

24

J918601

SOLENOID

SOLENOID - fuel shutoff, replaces J914371, Includes: Ref. 25 and 26

1шт.

25

A77702

SPRING

SPRING - return, plunger

1шт.

26

A77681

BOOT

BOOT - protective, plunger

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

BOLT, Hex Flg, M6 x 15, 8.8, Full Thd

2шт.

28

J916142

SUPPORT

BRACKET - solenoid mounting

1шт.

29

854-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

BOLT - hex flange, 10 - 1.5 x 20 mm

2шт.
