Запчасти Case 721 (3-10) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (03) - FUEL SYSTEM

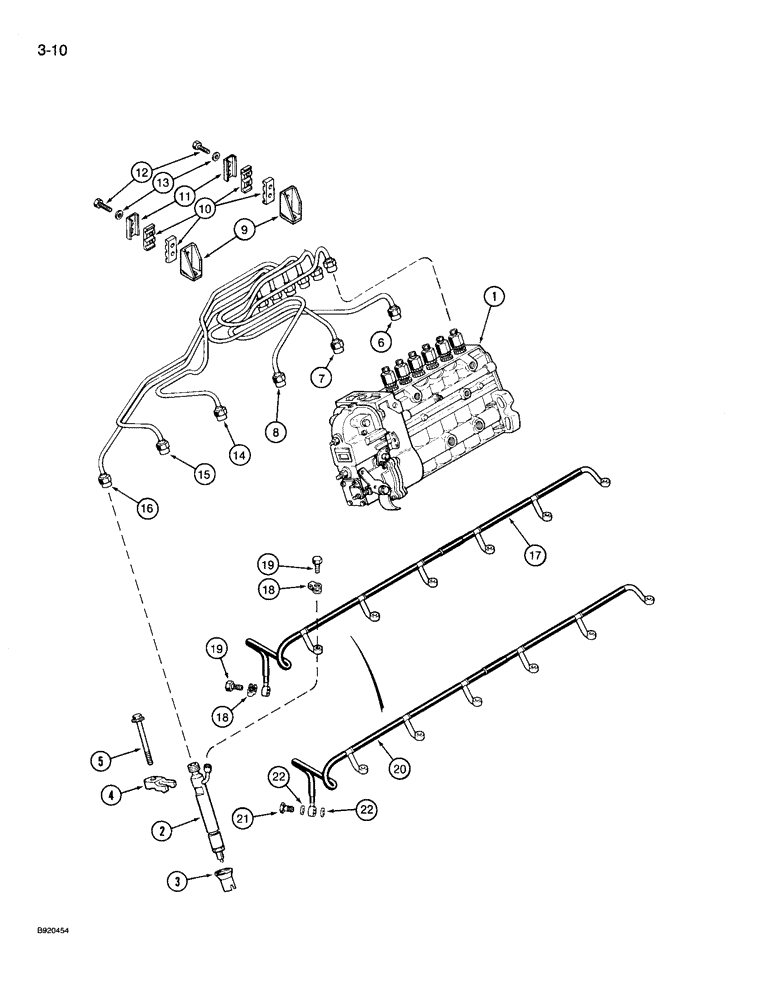

Схема запчастей Case 721 - (3-10) - FUEL INJECTION SYSTEM, 6T-830 ENGINE (03) - FUEL SYSTEM
14
8
2
20
10
18
18
17
15
11
9
1
6
13
12
3
19
5
22
16
4
7
19
22
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, parts list Figure 3-14

1шт.

2

REF

INSTRUCTION

INJECTOR ASSEMBLY - fuel, parts list Figure 3-16

6шт.

3

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

4

J910279

CLAMP

- injector

6шт.

5

845-8080

BOLT,Hvy Hex, M8 x 80mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 80 mm

6шт.

6

J906783

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 1 cylinder

1шт.

7

J906784

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 2 cylinder

1шт.

8

J906785

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 3 cylinder

1шт.

9

J917776

BRACE

- tube

1шт.

10

J917747

CLAMP

ISOLATOR - tube

2шт.

11

J904519

SUPPORT

BRACE - tube

1шт.

12

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, , Replaces J903609 Hex Hd, M5 x .8 x 20, w/LW

2шт.

13

J903723

WASHER

- flat, 6 x 10 x 1 mm

2шт.

14

J910521

FUEL TUBE

TUBE - fuel, No. 4 cylinder

1шт.

15

J906787

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 5 cylinder

1шт.

16

J906788

FUEL TUBE,2 mm ID x 6.4 mm OD x 690 mm L

TUBE - fuel, No. 6 cylinder

1шт.

17

J915695

MANIFOLD

- fuel drain, prior to engine serial number 44713107, no longer available, order Refs. 20 - 22, manifold, check valve, and washers on this Figure, and item 20, banjo bolt on Figure 3-12

1шт.

18

J903380

SEAL

- connector, Ref. 17, manifold

6-7шт.

19

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special, Ref 17, manifold M6 x 1 x 14.3

6-7шт.

20

J920595

TUBE ASSY.

MANIFOLD - fuel drain, engine serial number 44713107 and after

1шт.

21

J916360

VALVE

- check, Ref. 20, manifold

1шт.

22

J918188

WASHER,7.8mm ID x 13.5mm OD x 1.2mm Thk

- banjo fitting, Ref. 20, manifold

2шт.
