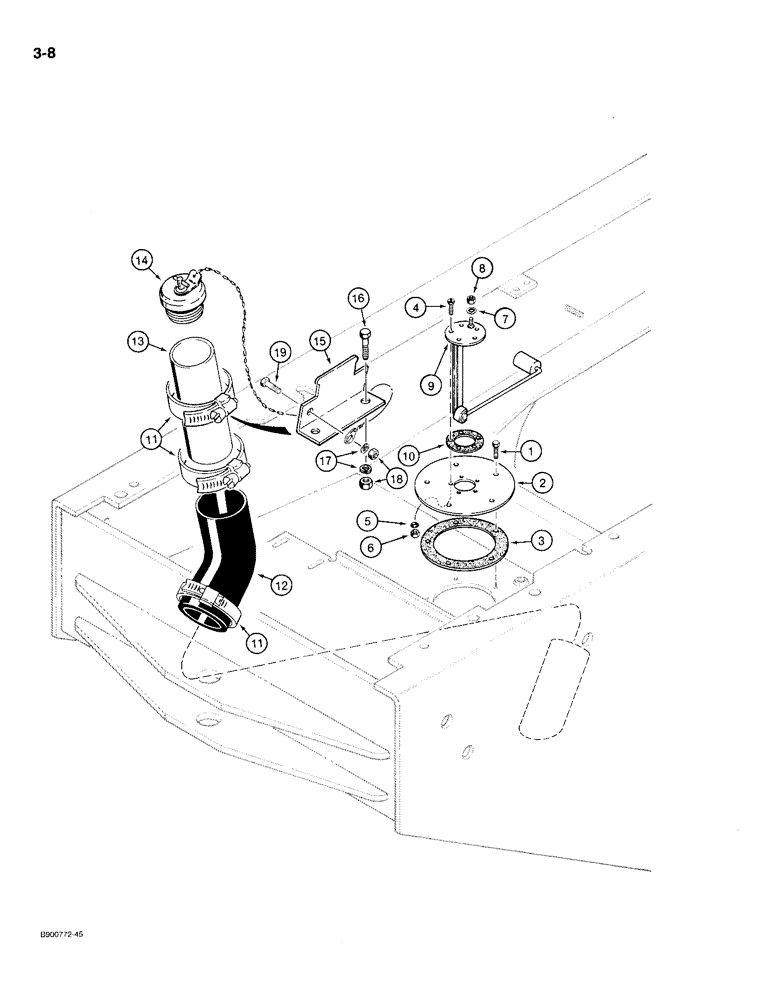

Запчасти Case 721 (3-08) - FUEL TANK FILLER AND SENDER, P.I.N. JAK0022432 AND AFTER (03) - FUEL SYSTEM

1

L108414

BOLT

- special, self-sealing

5шт.

2

L77441

PLATE

- tank access cover

1шт.

3

L79876

GASKET,4.57mm Thk

- tank access cover

1шт.

4

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, No. 10 NC x 3/4 inch

5шт.

5

L115306

WASHER

- sealing

5шт.

6

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

7

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

8

129-37

NUT,#10-32

1шт.

9

L124069

PROBE

SENDER - fuel tank, Includes: Ref. 10

1шт.

10

A11822

GASKET

- sender

1шт.

11

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia

3шт.

12

L127180

FUEL HOSE

HOSE - elbow, fuel filler

1шт.

13

L128103

PIPE

- fuel filler

1шт.

14

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

15

L128402

SUPPORT

BRACKET - fuel filler tube

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

17

492-11038

LOCK WASHER,3/8"

3шт.

18

425-106

NUT,3/8"-16, Cl 5

3шт.

19

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.
