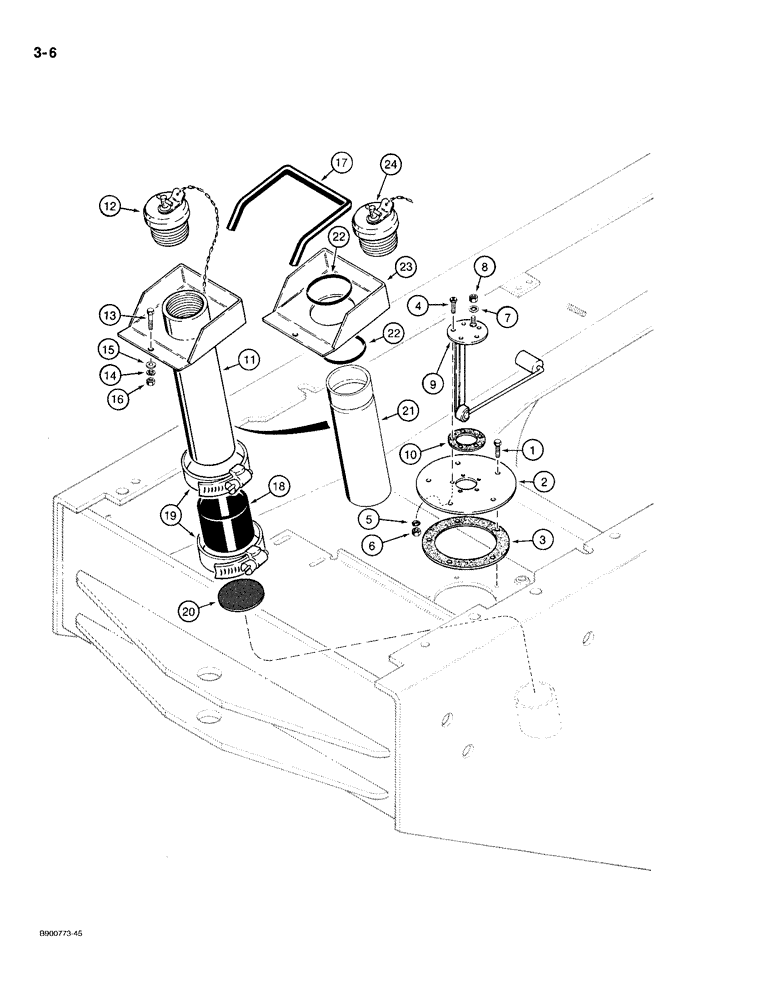

Запчасти Case 721 (3-06) - FUEL TANK FILLER AND SENDER, PRIOR TO P.I.N. JAK0022432 (03) - FUEL SYSTEM

1

L108414

BOLT

- special, self-sealing

5шт.

2

L77441

PLATE

- tank access cover

1шт.

3

L79876

GASKET,4.57mm Thk

- tank access cover

1шт.

4

163-13

SCREW,Hex, #10 - 24 x 3/4"

- machine, No. 10 NC x 3/4 inch

5шт.

5

L115306

WASHER

- sealing

5шт.

6

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

5шт.

7

193-99

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

8

129-37

NUT,#10-32

1шт.

9

L124069

PROBE

SENDER - fuel tank, Includes: Ref. 10

1шт.

10

A11822

GASKET

- sender

1шт.

L119011

PIPE

AND CAP ASSEMBLY - fuel filler, no longer available, order Ref. 21, 22, 23, and 24 shown below, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

PIPE - filler

1шт.

12

L74929

FILLER CAP

CAP, FILLER - fuel tank

1шт.

13

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

14

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

1шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

D39366

LINING

TRIM - edge, 20 inch long, cut from F42827 bulk, see below

1шт.

See Figure 9-18 for fuel tank.

1шт.

18

L77270

HOSE,89.00 mm ID x 102.00 mm, SAE 30R2

89 mm ID x 102 mm, SAE 30R2, Filler

1шт.

19

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adjustable, includes screw, No. 64, type F

2шт.

20

L77398

STRAINER ELEMENT

SCREEN - fuel filler

1шт.

21

L128125

PIPE

- fuel filler

1шт.

22

238-5338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 5, 75 Duro

2шт.

23

L128124

PROTECTOR

GUARD - pipe, fuel filler

1шт.

24

L74929

FILLER CAP

CAP, FILLER - pipe, fuel

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk roll, 116 inch (2946 mm) long

1шт.

See Figure 9-18 for fuel tank.

1шт.
