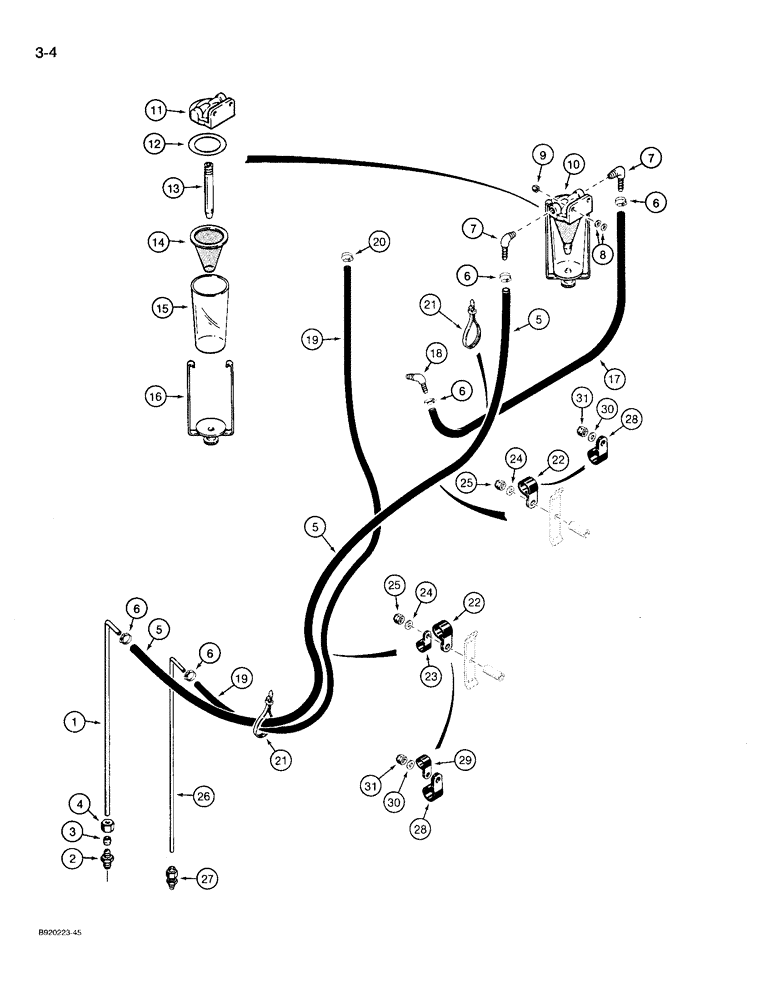

Запчасти Case 721 (3-04) - FUEL LINES AND SEDIMENT BOWL (03) - FUEL SYSTEM

1

L119109

FUEL TUBE,9.53 mm OD x 478, 46 mm L

TUBE - fuel supply, Includes: Ref.

1шт.

222-638

FITTING,9/16"-24 x 3/8" NPT, Comp

ADAPTER - straight, 3/8 tube OD x 3/8 inch PT, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-654

FERRULE,3/8" Tube, Comp

- tapered, 3/8 inch tube OD

1шт.

4

222-664

TUBE NUT,9/16"-24, 45 Degree Fl, Comp

NUT - 9/16 - 24 inch thread, use with tapered sleeve

1шт.

5

850569C1

HOSE,0.38" ID x 77.00", SAE30R2 Type 1

Tank to Strainer 0.38" ID x 77.00", SAE30R2 Type 1

1шт.

6

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw #4, 0.25/0.62 Type F Worm

5шт.

7

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb stem x 1/4 inch PT

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

86625061

NUT,1/4"-20, GB

NUT - hex lock, 1/4 inch NC

2шт.

10

R18798

STRAINER ELEMENT

BOWL ASSEMBLY - sediment, fuel, Includes: Ref. 11 - 16

1шт.

11

R21356

HOUSING

BODY - sediment bowl

1шт.

12

R21357

GASKET

-, Serial Range: body-screen

1шт.

13

R21360

TUBE,0.687" DIA x 3.344" L

- sediment bowl

1шт.

14

R21359

FILTER SCREEN

SCREEN - strainer

1шт.

15

R21361

BOWL

- sediment

1шт.

16

R21358

CLAMP

RETAINER - sediment bowl

1шт.

17

L60470

FUEL HOSE,0.38" ID x 24.00", SAE 30R2 Type 1

Strainer To Pump 0.38" ID x 24.00", SAE 30R2 Type 1

1шт.

18

217-293

FITTING,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 3/8 barb stem x 1/4 inch PT

1шт.

19

L126218

FUEL HOSE

HOSE - 7.93 x 13.7 x 1140 mm long, fuel return

1шт.

20

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj., includes screw #4, 0.25/0.62 Type F Worm

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

22

T42284

CLAMP

- hose, large, Serial Range: -JAK0022432

2шт.

23

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- hose, small, Cable, Serial Range: -JAK0022432

1шт.

24

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Serial Range: -JAK0022432

2шт.

25

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, Serial Range: -JAK0022432

2шт.

26

L126216

FUEL TUBE,7.94 mm OD x 478, 46 mm L

TUBE - fuel return

1шт.

27

L125532

FITTING

ADAPTER - compression, straight, components are not serviceable

1шт.

28

T42284

CLAMP

- hose, large, Start Serial: JAK0022432

2шт.

29

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

- hose, small, Cable, Start Serial: JAK0022432

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Start Serial: JAK0022432

2шт.

31

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, Start Serial: JAK0022432

2шт.
