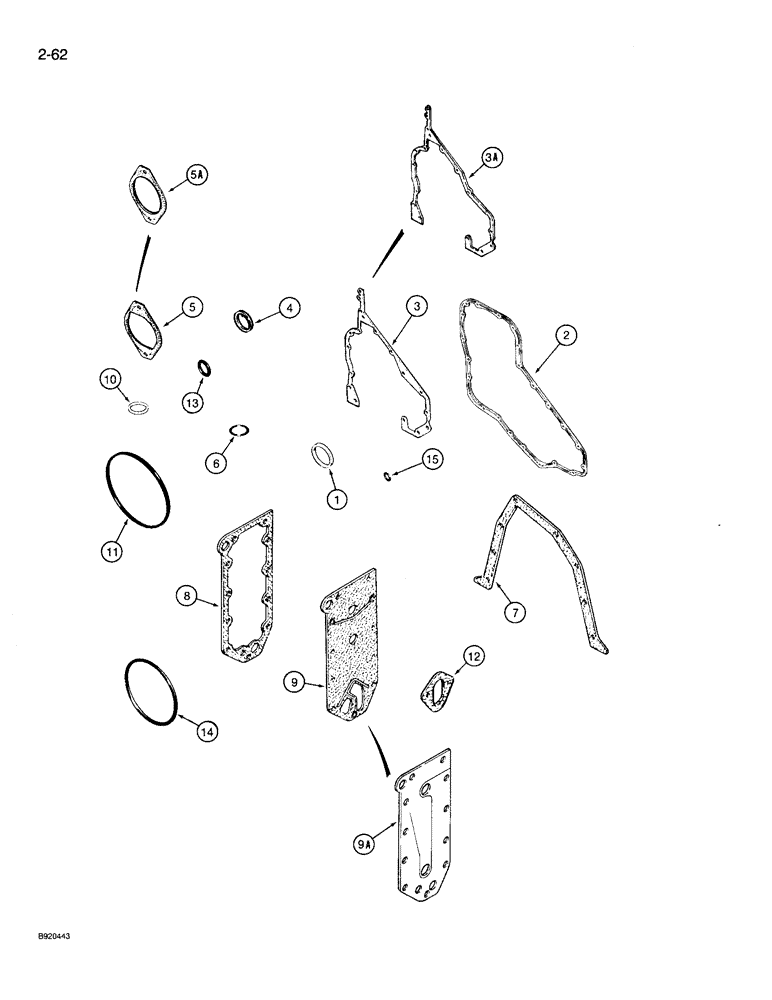

Запчасти Case 721 (2-62) - CYLINDER BLOCK GASKET KITS, 6T-830 ENGINE, PRIOR TO ENG. SN 44500128 (02) - ENGINE

A77718

GASKET KIT

KIT - gasket, cylinder block, replaces A77631, Includes: Ref. 1 - 15, Serial Range: -44500128

1шт.

For complete engine overhaul order one each of valve grind kit Fig. 2-60, cylinder block kit Fig. 2-62, oil pan kit Fig. 2-30, front and rear crankshaft seal kit Fig. 2-52 and required cylinder head gasket Fig. 2-32.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, Serial Range: -44500128

1шт.

2

J917779

GASKET,0.98mm Thk

- cover, gear, replaces J913431, Serial Range: -44500128

1шт.

3

J914303

SEAL

GASKET - housing, gear, Serial Range: -44500128

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing, replaces J914092, Serial Range: -44500128

1шт.

5

J913288

SEAL

GASKET - cover, access, Serial Range: -44500128

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump, Serial Range: -44500128

1шт.

7

J914301

GASKET

- rear retainer, Serial Range: -44500128

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core, replaces J914307, Serial Range: -44500128

1шт.

9

J914308

GASKET

- filter head, Serial Range: -44500128

1шт.

10

J901798

SEALING WASHER

WASHER - sealing, Serial Range: -44500128

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, Serial Range: -44500128

1шт.

12

J914304

GASKET

- mounting, pump, Serial Range: -44500128

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

, Serial Range: -44500128

1шт.

14

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve, replaces J907177, Serial Range: -44500128

6шт.

15

J913994

O-RING

- sealing, Serial Range: -44500128

1шт.

A77726

KIT

- gasket, cylinder block, Includes: Ref. 1 - 15, Start Serial: 44500128

1шт.

For complete engine overhaul order one each of valve grind kit Fig. 2-60, cylinder block kit Fig. 2-62, oil pan kit Fig. 2-30, front and rear crankshaft seal kit Fig. 2-52 and required cylinder head gasket Fig. 2-32.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- cover, Start Serial: 44500128

1шт.

2

J917779

GASKET,0.98mm Thk

- cover, gear, Start Serial: 44500128

1шт.

3a

J281721

GASKET

- housing, gear, Start Serial: 44500128

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING - pin housing, Start Serial: 44500128

1шт.

5a

J919601

GASKET

- cover, access, Start Serial: 44500128

1шт.

6

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, pump, Start Serial: 44500128

1шт.

7

J914301

GASKET

- rear retainer, Start Serial: 44500128

1шт.

8

J918174

GASKET,0.71mm Thk

- cooler core, Start Serial: 44500128

1шт.

9a

J918332

GASKET

- filter head, Start Serial: 44500128

1шт.

11

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - housing to block, Start Serial: 44500128

1шт.

12

J914304

GASKET

- mounting, pump, Start Serial: 44500128

1шт.

13

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

, Start Serial: 44500128

1шт.

14

J917737

O-RING,118.1 mm ID x 4 mm

- sleeve, Start Serial: 44500128

6шт.

15

J913994

O-RING

- sealing, Start Serial: 44500128

1шт.
