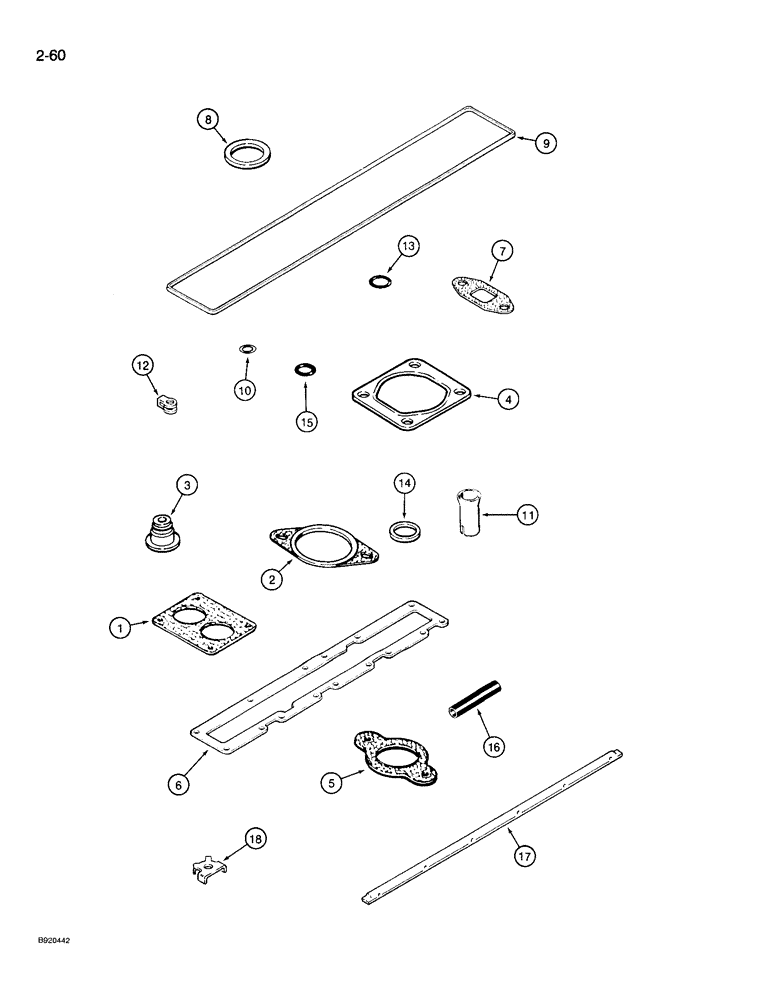

Запчасти Case 721 (2-60) - VALVE GRIND GASKET KITS, 6T-830 ENGINE, PRIOR TO ENG. SN 44487830 (02) - ENGINE

A77678

GASKET KIT

KIT - gasket, valve grind, replaces A77630, Includes: Ref. 1 - 17

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-32.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing

1шт.

2

A77705

GASKET

- outlet tube, replaces J914309

1шт.

3

J915707

SEAL

- stem, valve, replaces J912550 and J912549

12шт.

4

J911941

GASKET

- turbocharger mounting

1шт.

5

J911942

GASKET

- manifold, exhaust

6шт.

6

J914311

MANIFOLD GASKET

- cover, manifold

1шт.

7

J914388

GASKET

- drain tube

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector

6шт.

12

J903380

SEAL

- connector

6шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing

1шт.

14

J906659

SEAL

- injector nozzle

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff (Replaces A29197) -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather, Replaces J915040 19.05 mm ID x 51.00 mm

1шт.

17

J919677

TUBE

- oil

1шт.

A77794

GASKET KIT

KIT - gasket, valve grind, eng s/n 44487830 and after, Includes: Ref. 1- 19

1шт.

When just the valve grind gasket kit is used, also order the required cylinder head gasket on Fig. 2-32.

1шт.

1

J914310

GASKET,0.8mm Thk

- thermostat housing, eng s/n 44487830 and after

1шт.

2

J918779

GASKET,1.19mm Thk

- outlet tube, eng s/n 44487830 and after

1шт.

3

J915707

SEAL

- stem, valve, eng s/n 44487830 and after

12шт.

4

J911941

GASKET

- turbocharger mounting, eng s/n 44487830 and after

1шт.

5

J911942

GASKET

- manifold, exhaust, eng s/n 44487830 and after

6шт.

6

J914311

MANIFOLD GASKET

- cover, manifold, eng s/n 44487830 and after

1шт.

7

J914388

GASKET

- drain tube, eng s/n 44487830 and after

1шт.

8

J902466

SEAL,39.35mm ID x 59.35mm OD x 3mm Thk

RING - cap sealing, eng s/n 44487830 and after

1шт.

9

J905449

SEAL,7.179mm W x 2090mm L

SEAL - cover, eng s/n 44487830 and after

1шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, eng s/n 44487830 and after

6шт.

11

J909886

SEAL,16.9mm ID x 22mm OD x 38mm L

- injector, eng s/n 44487830 and after

6шт.

12

J903380

SEAL

- connector, eng s/n 44487830 and after

7шт.

13

J909397

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- sealing, eng s/n 44487830 and after

1шт.

14

J906659

SEAL

- injector nozzle, eng s/n 44487830 and after

6шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

Water filter shutoff, Eng S/N 44487830 and after -111, 70 Duro, .424" ID x .103" Thk

1шт.

16

J918610

HOSE,19.05 mm ID x 51.00 mm

Breather, Eng s/n 44487830 and After 19.05 mm ID x 51.00 mm

1шт.

17

J919677

TUBE

- oil, eng s/n 44487830 and after

1шт.

18

J914708

LOCKING PLATE

PLATE - lock, eng s/n 44487830 and after

12шт.

19

J823921

GAUGE

- head bolt, not shown, eng s/n 44487830 and after

1шт.
