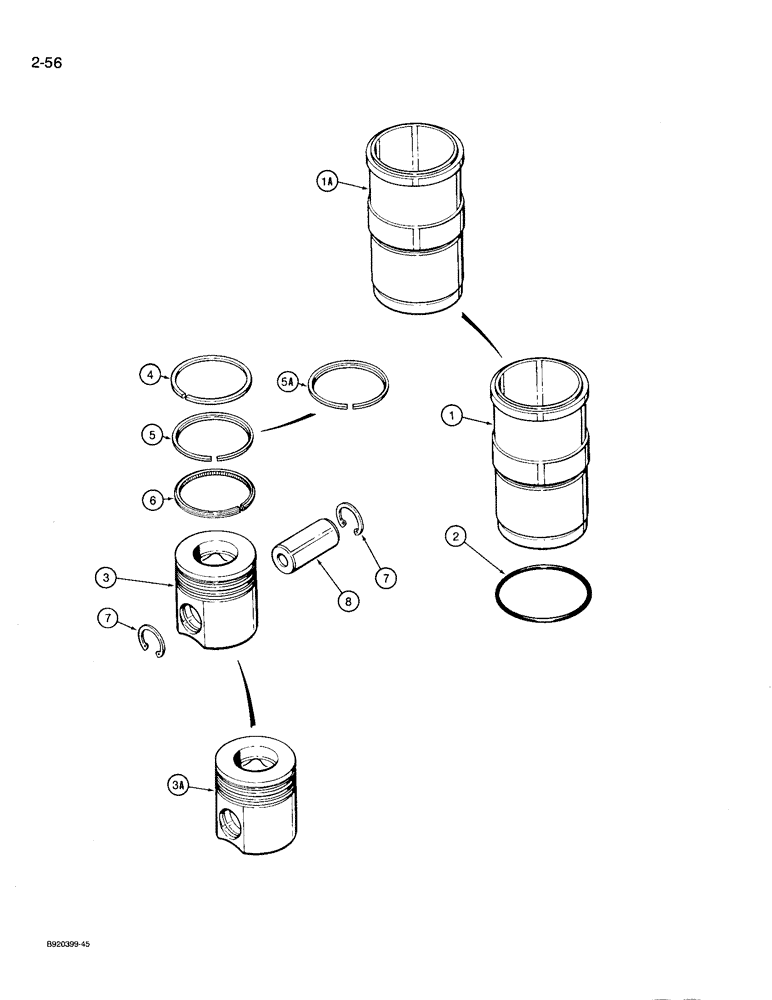

Запчасти Case 721 (2-56) - PISTONS, 6T-830 ENGINE, PISTONS PRIOR TO ENG. SN 44536857 (02) - ENGINE

A77598

CYLINDER

KIT - piston and sleeve, Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

- piston, standard, no longer available, order A77745 piston kit, shown below, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8749, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

J901996

RING

- retaining

2шт.

8

J901597

PIN

- piston

1шт.

A77747

PACKAGE

KIT - piston and sleeve, includes piston stamped 9928, piston eng s/n 44536857 - 44706125, Includes: Ref. 1 - 7

6шт.

A77772

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564 or 3163, piston eng s/n 44536857 - 44706125, Includes: Ref. 1 - 7

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston eng s/n 44536857 - 44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston eng s/n 44536857 - 44706125

1шт.

A77745

PACKAGE

KIT - piston, standard, includes piston stamped 9928, piston eng s/n 44536857 - 44706125, Includes: Ref. 3A - 6

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, includes piston stamped 9564 or 3163, piston eng s/n 44536857 - 44706125, Includes: Ref. 3A - 6

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9928, piston eng s/n 44536857 - 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163, piston eng s/n 44536857 - 44706125

1шт.

A77744

PACKAGE

KIT - piston ring, used with pistons stamped 9928, 9564, or 3163, piston eng s/n 44536857 - 44706125, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, piston eng s/n 44536857 - 44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston eng s/n 44536857 - 44706125

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston eng s/n 44536857 - 44706125

1шт.

7

J901996

RING

- retaining, piston eng s/n 44536857 - 44706125

2шт.

8

J901597

PIN

- piston, piston eng s/n 44536857 - 44706125

1шт.

A77798

PACKAGE, REPAIR

KIT - piston and sleeve, includes piston stamped 9564, piston eng s/n 44706126 and after, Includes: Ref. 1A - 7

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston eng s/n 44706126 and after

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston eng s/n 44706126 and after

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, includes piston stamped 9564 or 3163, piston eng s/n 44706126 and after

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163, piston eng s/n 44706126 and after

1шт.

A77744

PACKAGE

KIT - piston ring, used with piston stamped 9564 or 3163, piston eng s/n 44706126 and after, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, piston eng s/n 44706126 and after

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, piston eng s/n 44706126 and after

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, piston eng s/n 44706126 and after

1шт.

7

J901996

RING

- retaining, piston eng s/n 44706126 and after

2шт.

8

J901597

PIN

- piston eng s/n 44706126 and after

1шт.

Sleeve Shims released: J914653 Shim (.010") J914654 Shim (.015") J914655 Shim (.020") Shims are used to adjust sleeve protrusion when cylinder block has been re-machined.

1шт.
