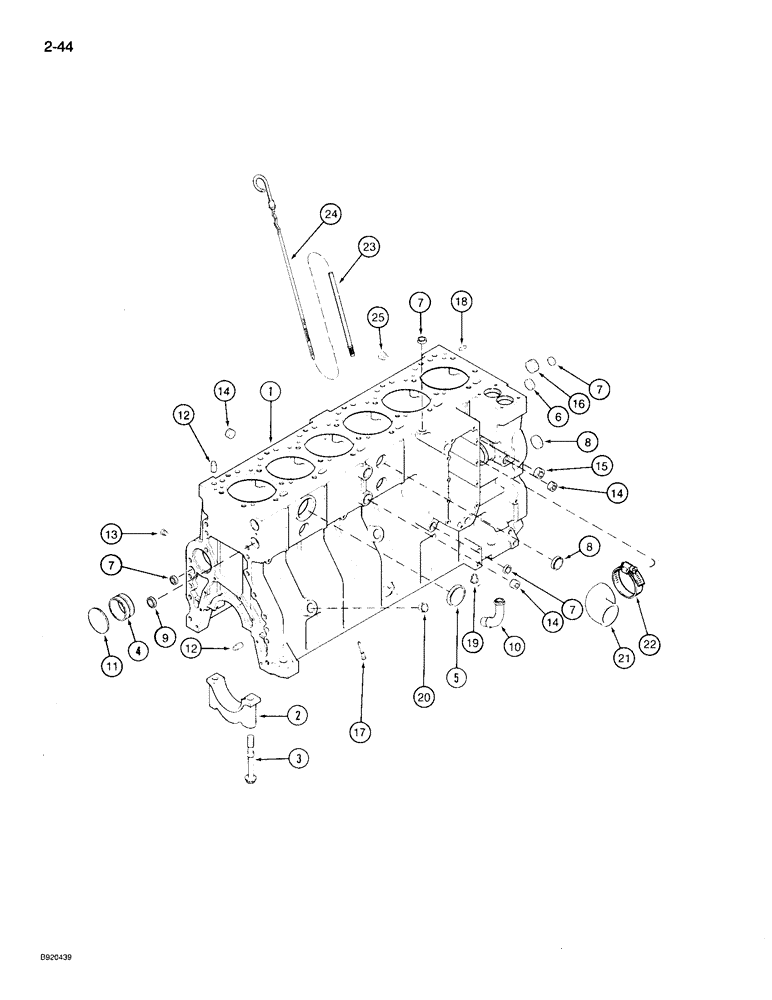

Запчасти Case 721 (2-44) - CYLINDER BLOCK, 6T-830 ENGINE, TWELVE PISTON COOLING NOZZLES,ENG. SN 44487830 - 44706125 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1989010C1
ENGINE ASSEMBLY
ENGINE ASSY ENGINE ASSEMBLY - complete, uses oil filter and cooler shown on Figure 2-26, for service order 1989098C2 basic engine shown on Figure 2-48
1шт.
Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe.
1шт.
1989010C3R
REMAN-REPLACEMENT EN
Remanufactured
1шт.
6T-830C
CORE-REPLACEMENT ENG
Return Part Number, Complete
1шт.
1989010C2
ENGINE ASSEMBLY
ENGINE ASSY ENGINE ASSEMBLY - complete, uses oil filter and cooler shown on Figure 2-28, for service order 1989098C2 basic engine shown on Figure 2-48
1шт.
Includes all parts except starter, alternator, fan, fan belt, air cleaner, muffler and exhaust pipe.
1шт.
Component parts shown on this Figure do not apply to the remanufactured assembly.
1шт.
47466038R
REMAN-BASIC ENGINE
Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts
1шт.
47466038C
CORE-BASIC ENGINE
Return Part Number
1шт.
A174358
BASIC ENGINE
ENGINE ASSEMBLY - basic, new, engine serial number 44487830 - 44536857, uses Ref. 1, sleeve, and piston stamped 8749, shown on Figure 2-56, no longer available, order 1989098C2 basic engine shown on Figure 2-48
1шт.
ncludes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger.
1шт.
1989098C1
BASIC ENGINE
ENGINE ASSEMBLY - basic, new, engine serial number 44536857 - 44706125, uses Ref. 1, sleeve, and pistons stamped 9928, 9564, or 3163, shown on Figure 2-56, no longer available, order 1989098C2 shown on Figure 2-48
1шт.
ncludes all parts except: starter, alternator, fan, fan belt, fan bracket, air cleaner, muffler, exhaust manifold, flywheel and housing, oil fill and dipstick, fuel injection pump, injectors and lines, front crank pulley, belt tensioner and turbocharger.
1шт.
J921057
CRANKCASE
BLOCK ASSEMBLY - short, engine, new, (Includes stripped block, pistons, connecting rods, bearings and crankshaft). (Also order A77716), uses Ref. 1, sleeve and pistons stamped 8749, 9928, 9564, or 3163, shown on Figure 2-56, Includes: Ref. 2 - 8
1шт.
Component parts shown on this Figure do not apply to the remanufactured assembly.
1шт.
JR921057
SKELETON ENGINE
Block Assembly, Short, Engine Remanufactured Includes: Ref. 2 - 8
1шт.
JC921057
CORE-SHORT ENGINE
Return Part Number, Use This Part Number To Return Block For Credit When Using a Remanufactured Assembly, Includes: Ref. 2 - 8
1шт.
1
J920036
CYLINDER BLOCK
BLOCK ASSEMBLY - cylinder, stripped, new, (Also order A77716 kit), Includes: Ref. 2 - 8
1шт.
Component parts shown on this Figure do not apply to the remanufactured assembly.
1шт.
1
JR920036
CRANKCASE
Block Assembly, Cylinder, Stripped Remanufactured, Includes: Ref. 2 - 8
1шт.
1
JC919374
CORE-ENGINE
Return Part Number, Use This Part Number To Return Stripped Block For Credit When Using a Remanufactured Assembly, Includes: Ref. 2 - 8
1шт.
REF
INSTRUCTION
ENGINE ASSEMBLY
1шт.
2
J917313
BEARING CAP
CAP - bearing, main
7шт.
3
J916369
FLANGE BOLT,Hex, M14 x 2 x 128mm, Cl 10.9
SCREW, Hex Flg Hd, M14 x 128
14шт.
4
REF
INSTRUCTION
BUSHING - camshaft, see Figure 2-38, Ref. 6
7шт.
5
A77782
PLUG
PLUG - expansion
1шт.
6
A77586
PLUG
PLUG - 28.9 mm OD
1шт.
7
A77506
PLUG
PLUG - expansion, 21 mm O.D.
4шт.
8
J905401
PLUG
PLUG - expansion, 35 mm OD
3шт.
A77716
BLOCK
KIT - hardware, block, Includes: Ref. 9 - 19
1шт.
9
A77530
PLUG
PLUG - expansion, 1-3/16 inch OD
2шт.
10
J903744
PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L
TUBE - drain, turbocharger
1шт.
13
J906619
PLUG,1/8" - 27
PLUG - hex, 1/8 inch PT
6шт.
14
A77429
PLUG
PLUG - hex socket, 1/2 inch PT
5шт.
15
A77505
PLUG
PLUG - hex, 3/4 inch PT
2шт.
16
A77533
PLUG
PLUG - hex, 1 inch PT
1шт.
17
J919003
NOZZLE INJECTION
NOZZLE - cooling, piston
12шт.
19
A77425
DRAIN VALVE
VALVE - drain, coolant
1шт.
20
A77439
PLUG
PLUG - expansion, 22 mm OD
1шт.
21
J920762
ELBOW
HOSE - elbow, 79 mm (3-1/8 inch)
1шт.
22
J918521
HOSE CLAMP,59mm - 83mm
CLAMP - hose, 1-13/16 to 2-3/4 inch
1шт.
23
J905779
TUBE,9.52 mm OD x 228 mm L
TUBE - engine oil dipstick
1шт.
24
J908773
DIPSTICK,485.3mm L
DIPSTICK - oil gauge
1шт.
25
217-428
PLUG,Hex Soc, 1/8" - 27 NPTF
PLUG, , Replaces 1/8 inch plug behind air compressor Hex Soc, 1/8"-27, Brass
1шт.
26
A77595
KIT
KIT - heater, coolant, not shown, see Figure 2-40 for component parts
1шт.
Freeze plug for dipstick hole is J900955 (1/96 mg)
1шт.
